Intel NUC Kit NUC5i7RYH User Guide

This guide tells you how to:

•

Install and remove memory

•

Install an M.2 SSD

•

Install a 2.5” drive

•

Install a VESA mount bracket

•

Install an operating system

•

Install the latest drivers

Open the Intel NUC Chassis

To open the Intel NUC chassis, follow these steps:

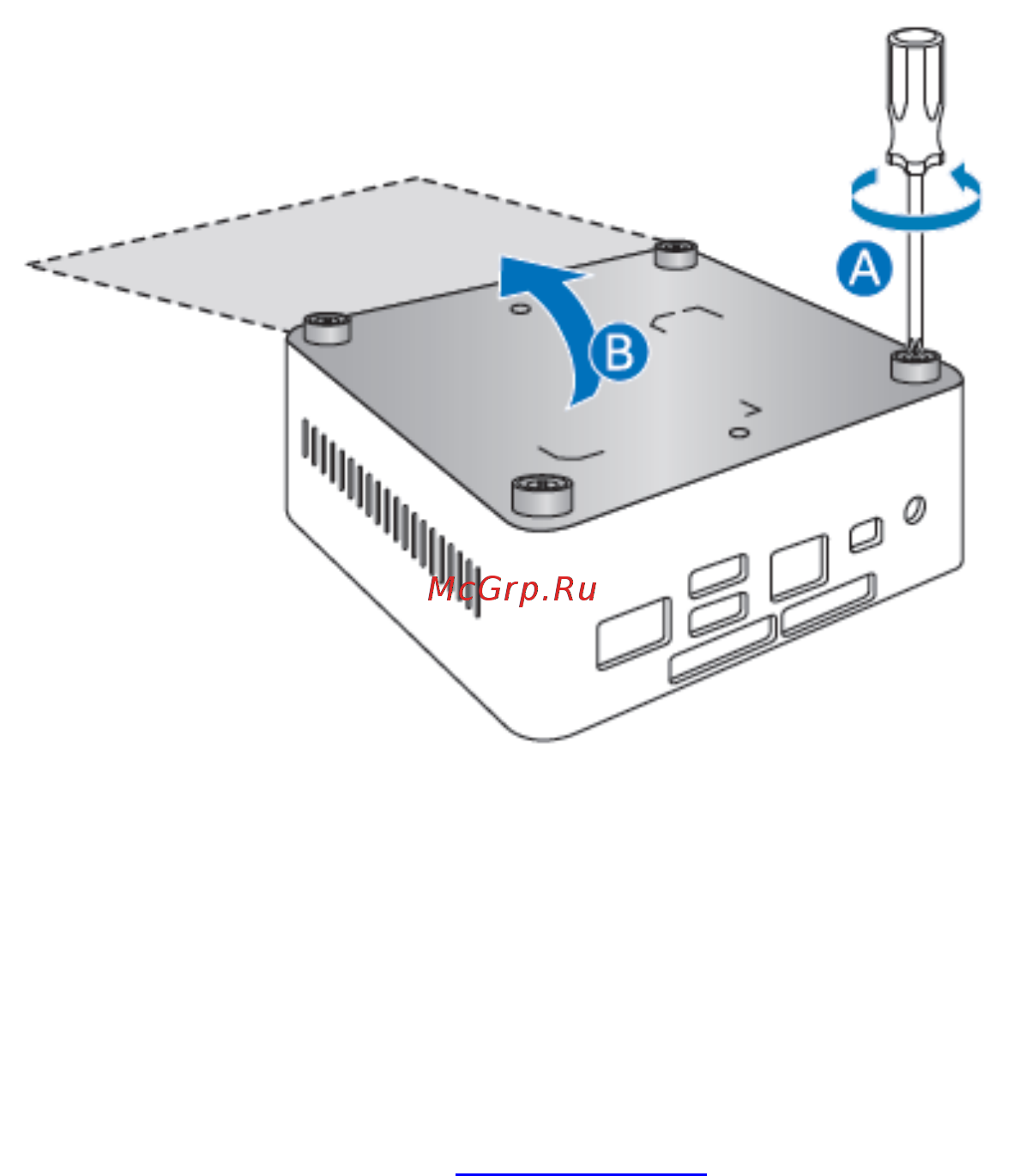

1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover.

Installing and Removing Memory

The Intel NUC Kit NUC5i7RYH has two 204-pin DDR3L SO-DIMM sockets. Memory requirements:

 1.35V low voltage memory

 1333 MHz or 1600 MHz SO-DIMMs

 Non-ECC

For a list of tested memory, go to the System Memory page on the Support site:

Install SO-DIMMs

If you plan to install just one SO-DIMM, install it in the lower memory socket.

To install the SO-DIMMs, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.
