Overview of Components

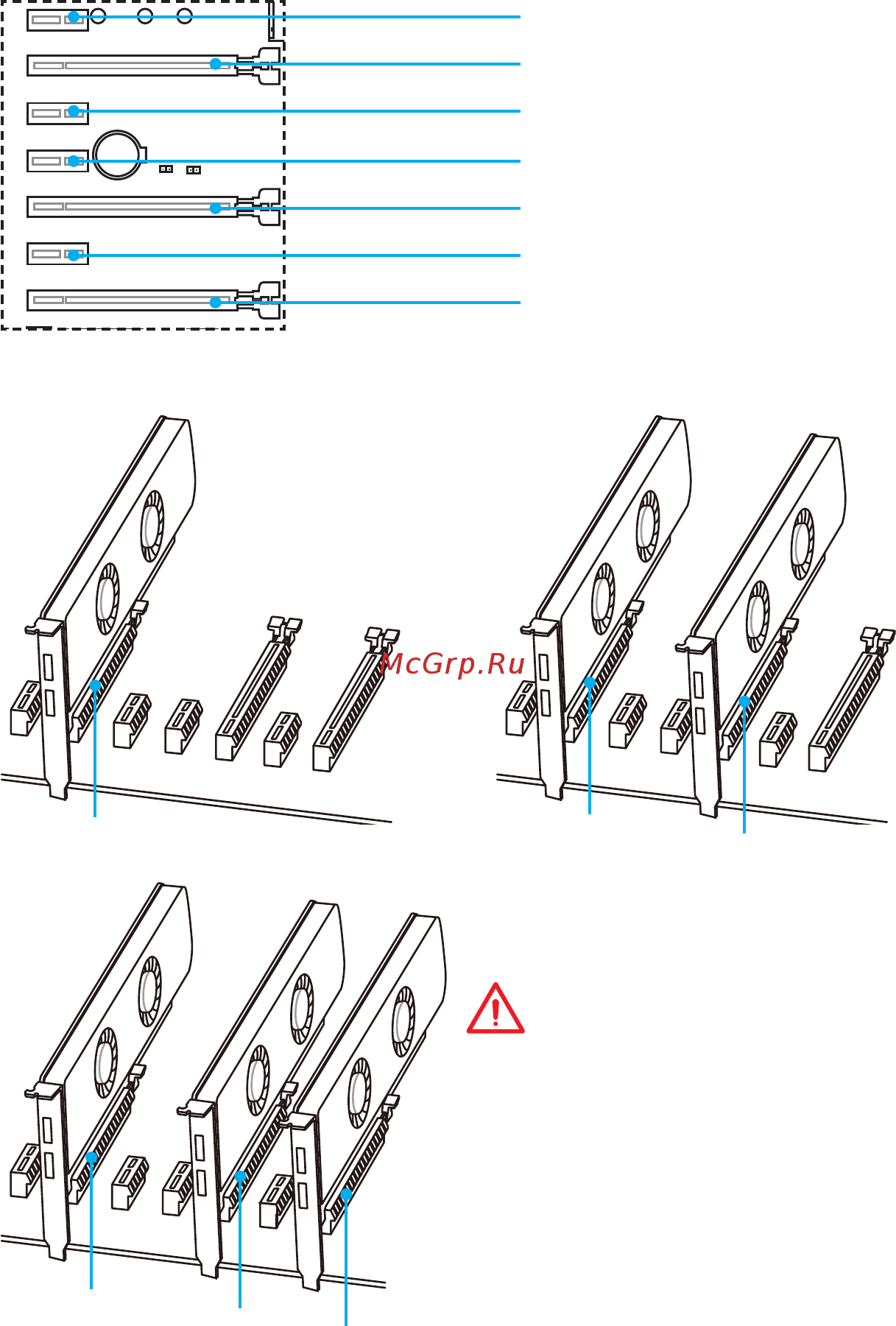

PCI_E1~E7: PCIe Expansion Slots
PCI_E1: PCIe 3.0 x1 slot
PCI_E2: PCIe 3.0 x16 slot
PCI_E3: PCIe 3.0 x1 slot
PCI_E4: PCIe 3.0 x1 slot
PCI_E5: PCIe 3.0 x8 slot
PCI_E6: PCIe 3.0 x1 slot
PCI_E7: PCIe 3.0 x4 slot
x16
x8
x8
x8
x8
x4
Multiple graphics cards installation recommendation
Important
y
For a single PCIe x16 expansion
card installation with optimum
performance, using the PCI_E2 slot is
recommended.
y
When adding or removing expansion
cards, always turn off the power supply
and unplug the power supply power
cable from the power outlet. Read the
expansion card’s documentation to
check for any necessary additional
hardware or software changes.
