Software Description
Microphone Tab

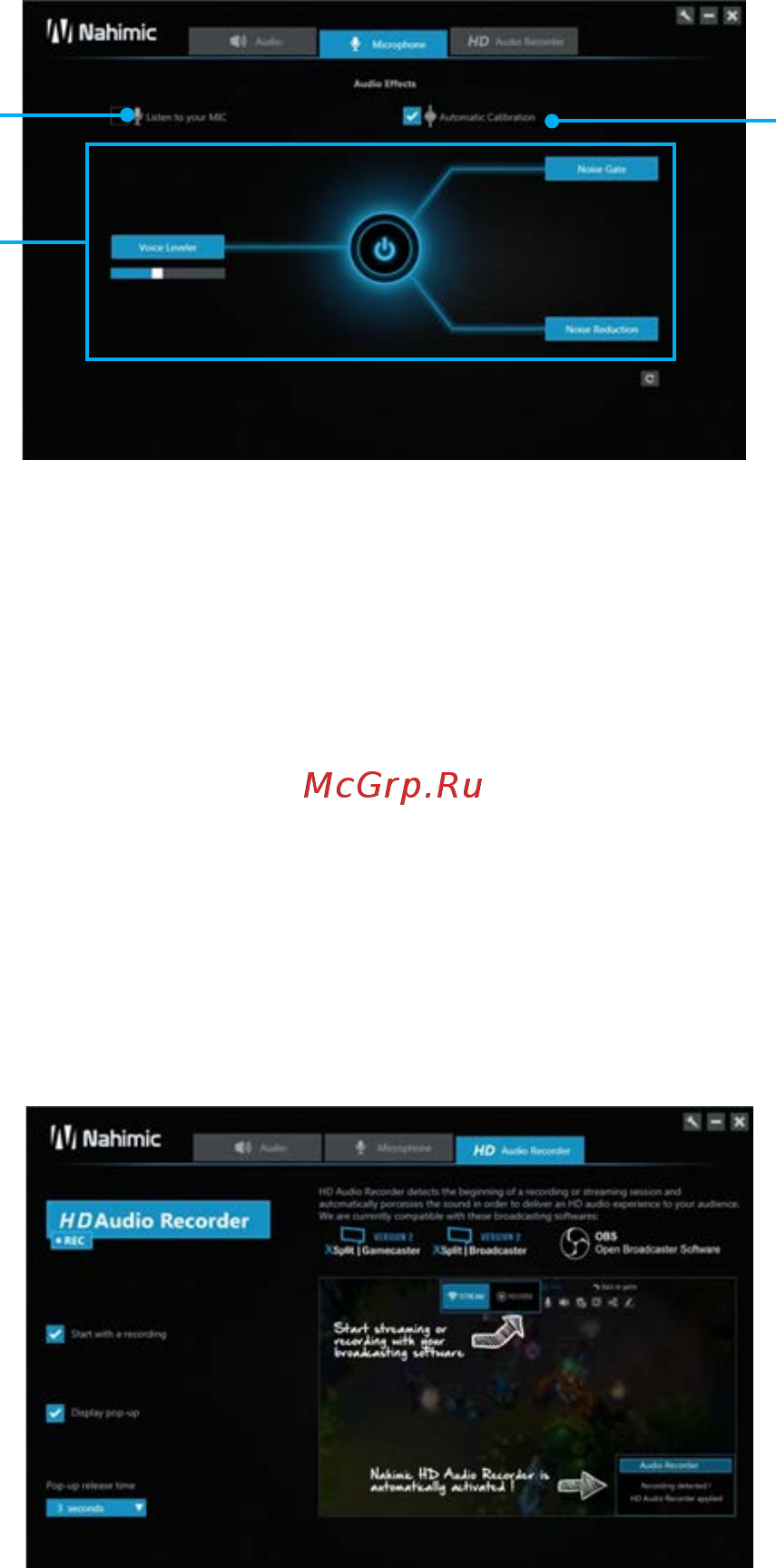

From this tab, you can access all of Nahimic’s microphone effects and settings.
Listen to your
MIC
Automatic
Calibration
Micphone
Effects
y Listen to your MIC - turns the microphone loopback On/Off.
y Automatic Calibration - dynamically adjusts the Noise Gate threshold and the Noise
Reduction level by estimating the noise VS. signal rate.
y Microphone Effects - allows you to separately control any of the 3 microphone
effects.
Voice Leveler - levels the volume of your voice in order to avoid any saturation and
maintains a constant and clear communication.
Noise Gate - removes the background and the digital noise between segments of
speech during your voice communication.
Noise Reduction - removes the remaining sound that the Noise Gate has left on
top of your words and sentences.
HD Audio Recorder
From this tab, you can access all of Nahimic’s HD Audio Recorder explanations and
settings. XSplit Gamecaster, XSplit Broadcaster and Open Broadcaster Software are
currently the only softwares supported by HD Audio Recorder.
The HD Audio Recorder is automatically launched when a recording session is
detected. The launch of the HD Audio Recorder enables HD audio processing over a
recording without any need for adjustments. You can disable the HD Audio Recorder by
unchecking the Start with a recording option in the HD Audio Recorder tab.
