Netgear fs750t2eu [11/50] To manage your switch via your web browser click web access the main page below will display the default password is password

Smart Switch Series Software Manual

Getting Started 3-2

July 2005

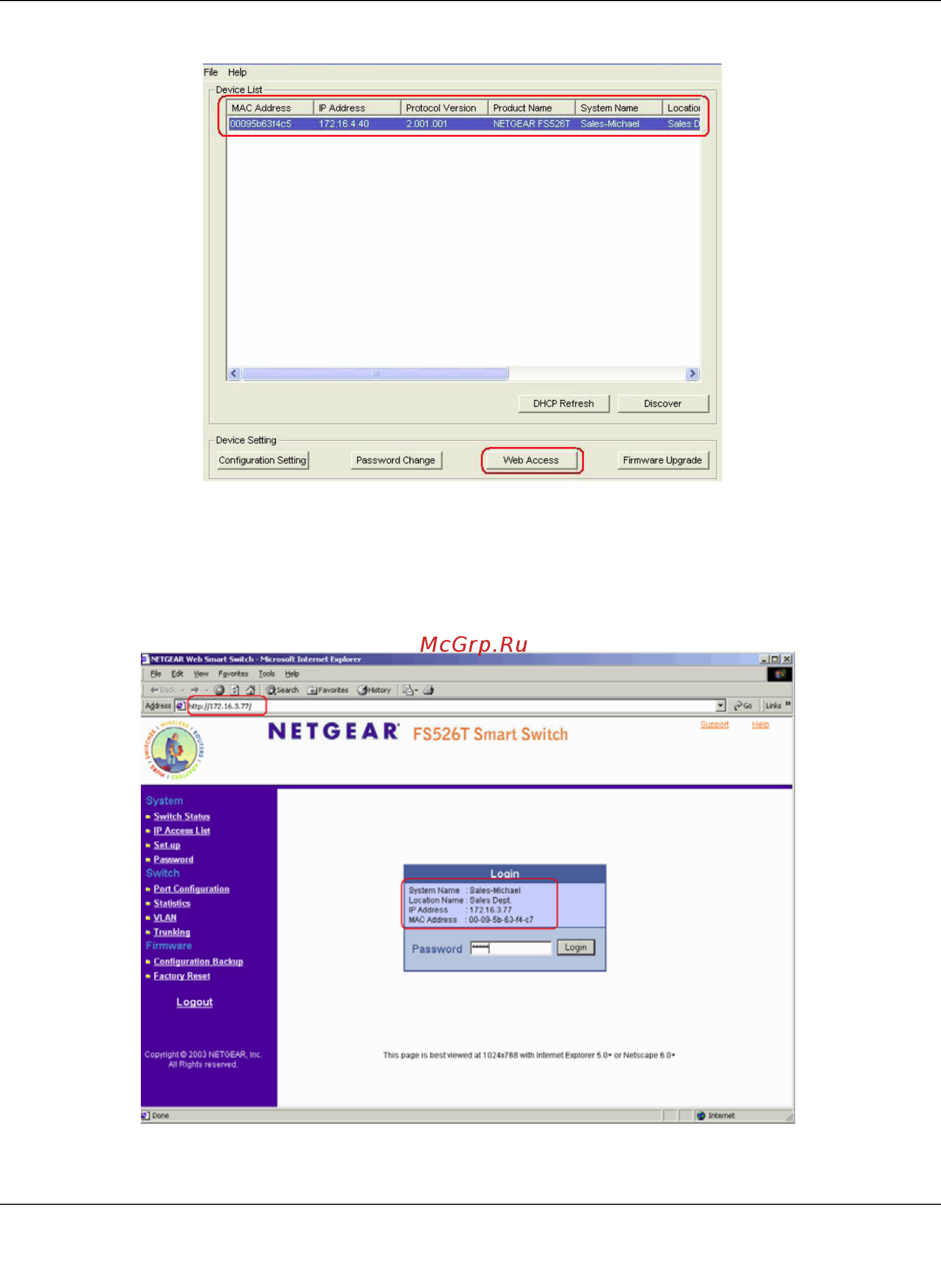

Figure 3-2: Smartwizard Discovery > Web Access

To manage your switch via your web browser, click Web Access. The main page below will

display. The default password is password.

Figure 3-3: Web Management main page
