Smart Switch Series Software Manual

Getting Started 3-4

July 2005

11.

To manage your switch via your web browser, click Web Access. The main page below will

display. The default password is password.

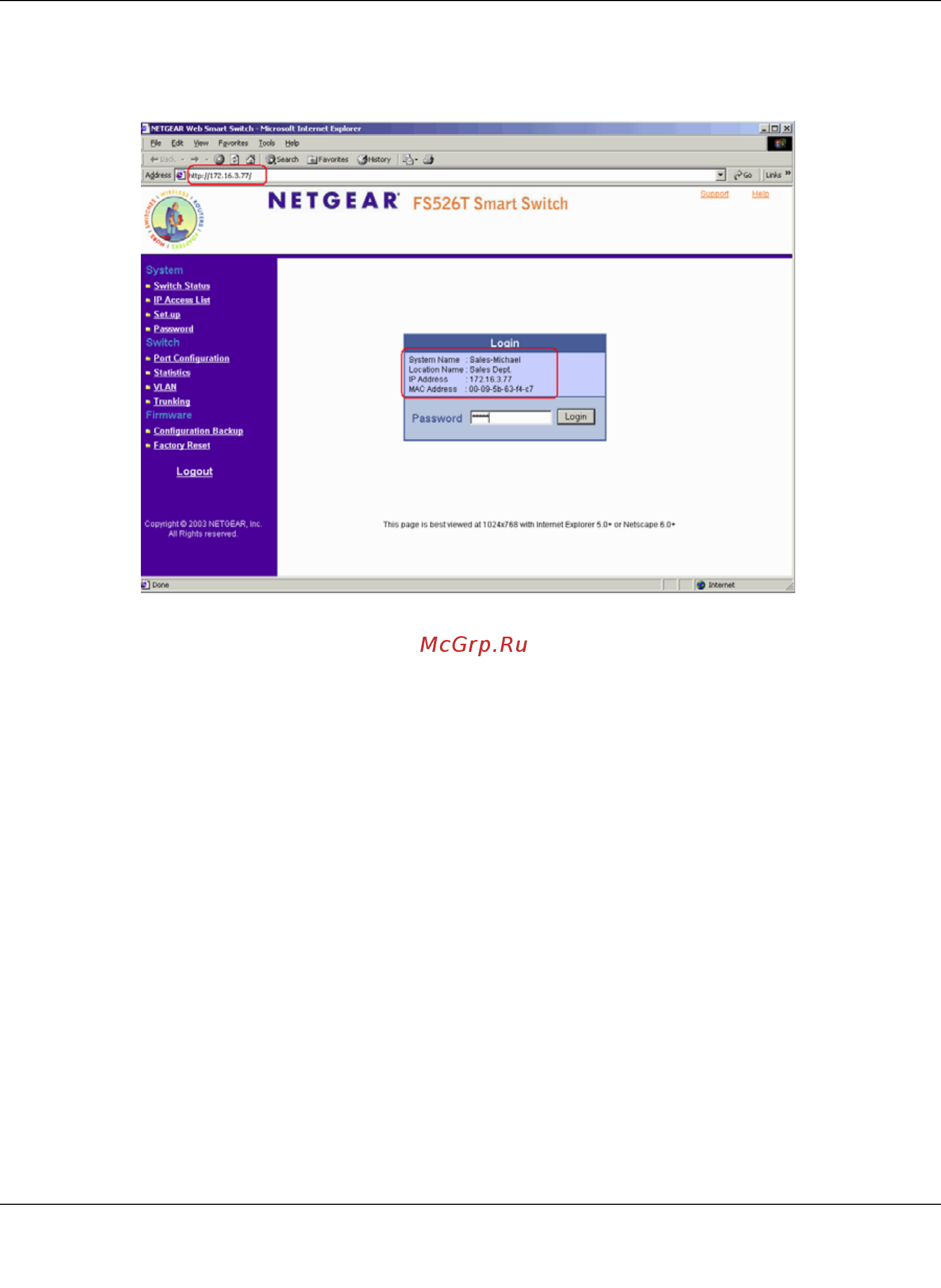

Figure 3-5: Web Management main page
