Noctua nh-d15s [5/6] Noctua nh d15s installation manual amd

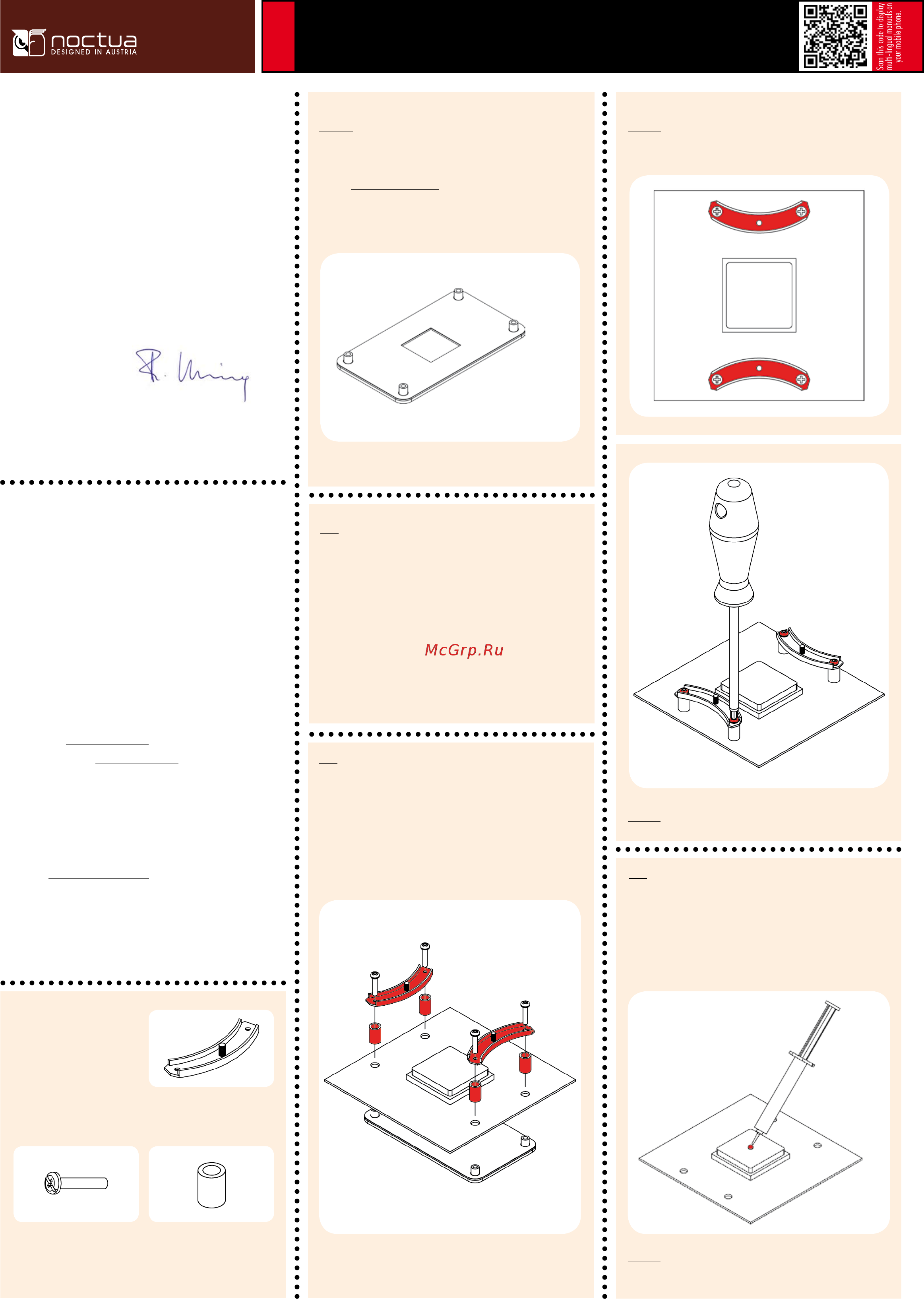

![Noctua nh-d15s [5/6] Noctua nh d15s installation manual amd](/views2/1222267/page5/bg5.png)
Attaching the mounting bars
First put the plastic spacers onto the screw threads, then fix the
mounting bars using the 4 long screws.
Step 2
Caution: The SecuFirm2™ mounting system requires a back-
plate, which is preinstalled on most AMD mainboards. If your
mainboard doesn’t have a backplate, please contact our support
team at support@noctua.at.
Removing the retention module
If your mainboard uses a retention module for CPU cooler instal-
lation, please remove it first. The SecuFirm2™ mounting system
will install directly to your mainboard’s stock backplate on the rear
side of the socket.
Step 1
AMD stock backplate
Noctua NH-D15S | Installation Manual | AMD
AMD
Caution: Tighten the screws until they stop.
Caution: Make sure that the curved sides of the mounting bars are
pointing outwards.
Required mounting parts:
Dear customer,
Congratulations on choosing the Noctua NH-D15S. Tailored to
provide superior RAM and PCIe compatibility, the NH-D15S is
an asymmetrical single fan version of Noctua’s award-winning
flagship model NH-D15. I’m confident that you will be able to
sense some of the research, attention and care we’ve put into
making this cooler.
Enjoy your NH-D15S!
Yours sincerely,
Roland Mossig, Noctua CEO
This manual will guide you through the installation process of the
SecuFirm2™ mounting system step by step.
Prior to installing the cooler, please consult the compatibility list
on our website (www.noctua.at/compatibility) and verify that
the cooler is fully compatible with your motherboard.
Should you encounter any difficulties, please check the FAQs on
our website (www.noctua.at/faqs) and don’t hesitate to contact
our support team at support@noctua.at.
Noctua cannot be held responsible for any damage or losses
caused by compatibility issues.
Multilingual versions of this manual are available on our
website: www.noctua.at/manuals
2x NM-AMB1 Mounting Bars
4x NM-APS1 Plastic Spacers4x NM-ALS1 Screws
Applying thermal paste
If there are residual traces of thermal paste or thermal pads on
your CPU, please clean them off first. Then press a small drop
(4-5mm diameter) of NT-H1 onto the centre of the heatspreader.
Step 3
Caution: Applying too much thermal paste will lower the heat
conductivity and cooling performance!
