BT MEM CLEAR
[YES], [NO] Clear the Bluetooth device data (device
information, PIN code, call history, phone
book, preset phone numbers) stored in the
unit.
[CLEARED] appears when data is
successfully deleted.
BT VERSION
Displays the system version of the unit and
the Bluetooth module.
USB AUTO
[ON], [OFF] Select [ON] to automatically switch to
[USB] source when a USB device/Android is
connected to the unit.
Select [OFF] when a USB device/Android is
being connected to the unit just for
charging.
Menu Item Description
WARNING
• Use speakers over 50 W (output
value) and between 4 Ω to 8 Ω
(impedance value). Do not use 1 Ω to
3 Ω speakers for this unit.
• The black cable is ground. When
installing this unit or power amp
(sold separately), make sure to
connect the ground wire first. Ensure
that the ground wire is properly
connected to metal parts of the car’s
body. The ground wire of the power
amp and the one of this unit or any
other device must be connected to
the car separately with different
screws. If the screw for the ground
wire loosens or falls out, it could
result in fire, generation of smoke or
malfunction.
Important
• When installing this unit in a vehicle
without an ACC (accessory) position
on the ignition switch, failure to
connect the red cable to the terminal
that detects operation of the ignition
key may result in battery drain.
• Use of this unit in conditions other
than the following could result in fire
or malfunction.
– Vehicles with a 12-volt battery and
negative grounding.
– When speaker output is used by 4
channels, use speakers over 50 W
(maximum input power) and
between 4 Ω to 8 Ω (impedance
value). Do not use 1 Ω to 3 Ω
speakers for this unit.
– When rear speaker output is used
by 2 Ω of subwoofer, use speakers
over 70 W (maximum input power).
* Please refer to connection for a
connection method.
• To prevent a short-circuit,
overheating or malfunction, be sure
to follow the directions below.
– Disconnect the negative terminal
of the battery before installation.
–Secure the wiring with cable
clamps or adhesive tape. Wrap

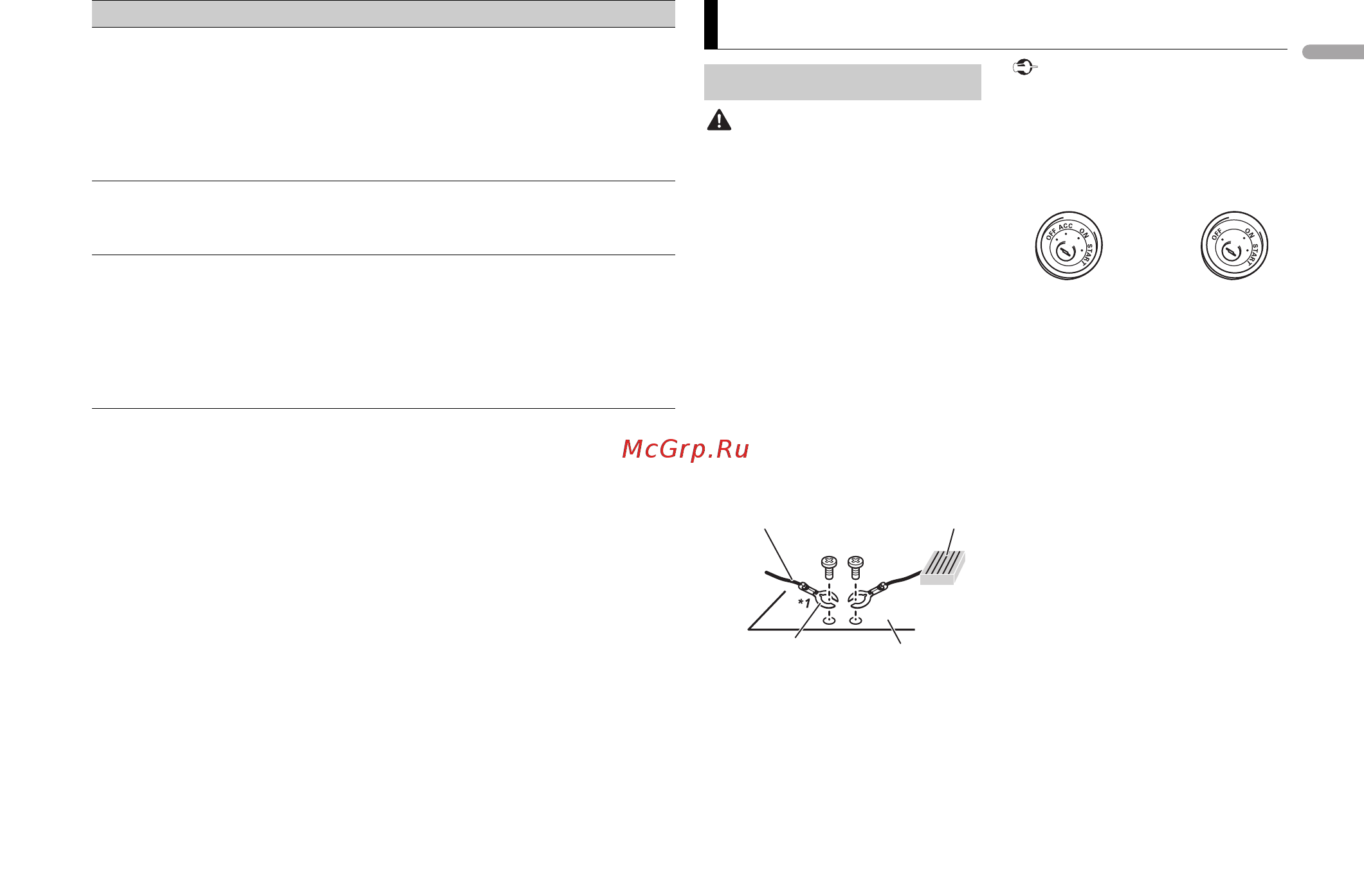

Connections/Installation
Connections
Ground wire POWER AMP
Other devices
(Another electronic
device in the car)
Metal parts of
car’s body
*1 Not supplied for this unit
ACC position No ACC position
