i HEIGHT ADJUST lock
Locks the adjusted height of the arm.
= Adjusting the arm height (p. 12 )
j HEIGHT ADJUST dial
Used to adjust the height of the tone arm.
= Adjusting the arm height (p. 12 )
k Balance weight
Used to balance the tone arm and adjust the stylus pressure.
= Adjustment (p. 11 )
l Stylus pressure adjustment ring
Used to match to the appropriate stylus pressure of the cartridge.
= Adjusting the stylus pressure (p. 11 )
m Headshell stand
Used to stand the shell up.
n Adapter for EP record
Used to play standard EP records.
= To play a standard EP record (p. 15 )

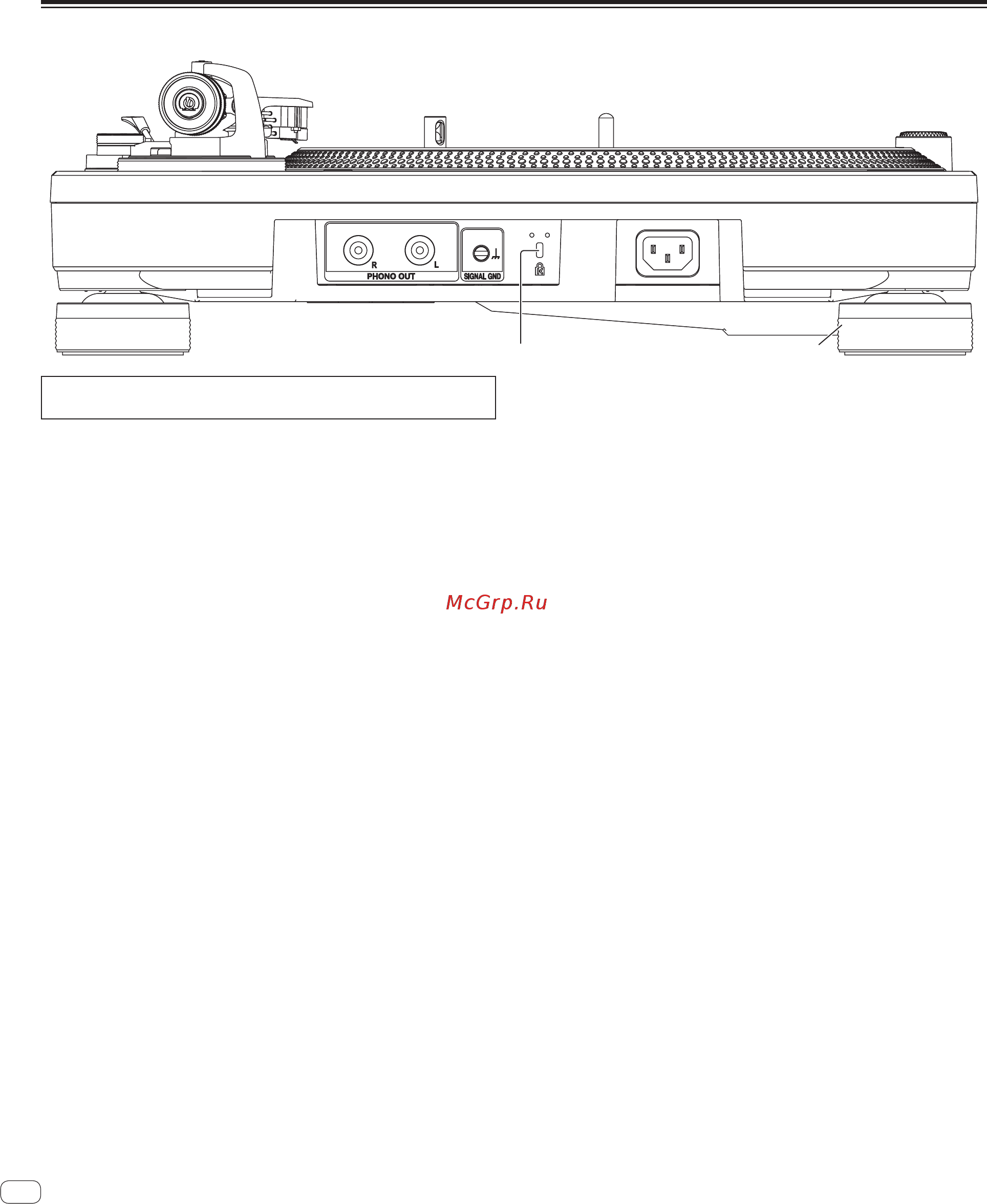

Rear panel
21
For the terminals used for connections, see Descriptions of terminals
on page 13 .
1 Kensington security slot
2 Insulator
Suppresses the effect of outside vibration. Turning the insulator
adjusts the turntable height.
= Adjusting the height of the main unit (p. 14 )
