2–Installation

Step 1. Install the Hardware

8 FC0054505-01 C

4. Pull out the slot cover (if any) by removing the screw or releasing the lever.

5. Install the low-profile bracket (if required).

6. Grasp the adapter by the top edge and seat it firmly into the appropriate slot

(see Figure 2-1).

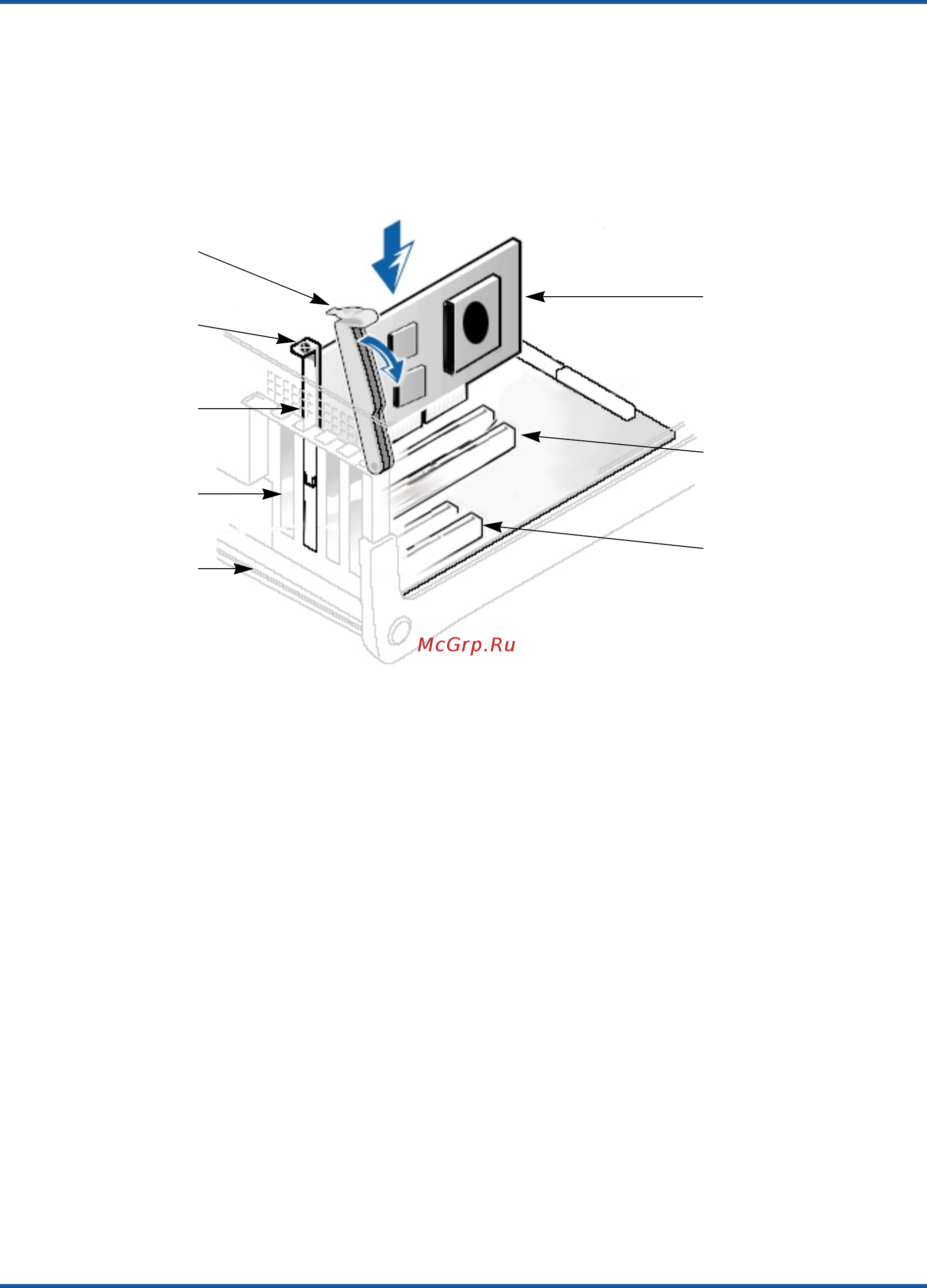

Figure 2-1. Server Motherboard and Slots

7. Refasten the adapter’s retaining bracket using the existing screw or lever.

8. Close the computer cover.

9. Plug the Fibre Channel cable into the adapter.

10. Plug in the power cable and turn on the computer.

Installing the QOE2562 Adapter

To install the QOE2562 adapter hardware:

1. Power off the computer and all attached devices such as monitors, printers,

and external components.

2. Disconnect the power cable.

3. Remove the computer cover and find an appropriate empty bus slot.

4. Remove the SFP transceivers.

Host Bus Adapter

64-bit PCI-X Slot

x4 PCI Express

Slot

(x8 physical slot or

QLE25xx Adapters)

higher required for

Lever

Screw

Adapter Retaining

Bracket

Slot Covers

System Chassis
