– 3 –

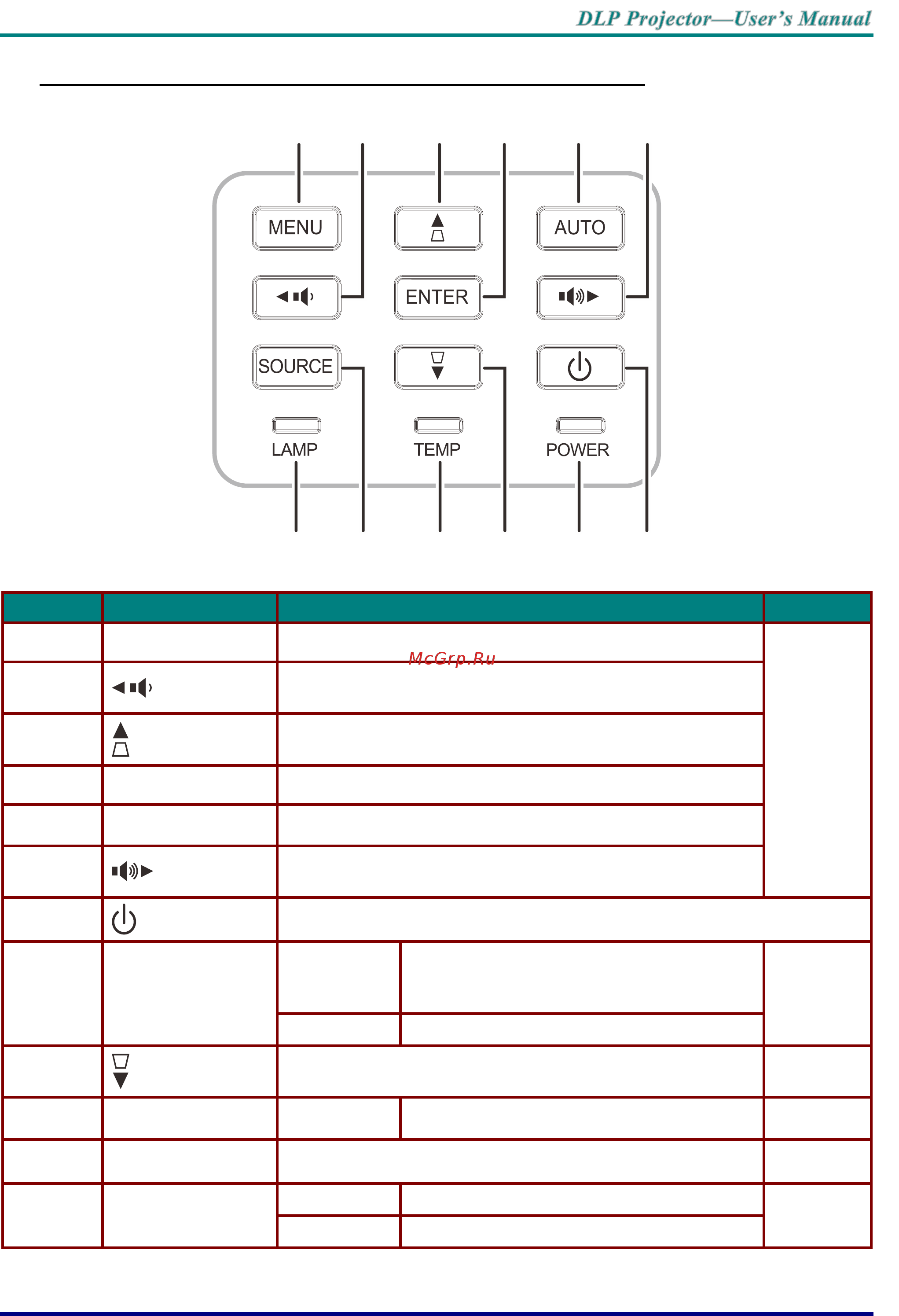

Top view—On-screen Display (OSD) buttons and LEDs
ITEM
LABEL
DESCRIPTION
SEE PAGE
1.
MENU
Opens and exits OSD menus
15
2.
Navigates and changes settings in the OSD
Quick Menu – For Volume
3.
Navigates in the OSD
Quick Menu – For Keystone
4.
ENTER
Enter or confirm highlighted OSD menu item
5.
AUTO
Optimizes image size, position, and resolution
6.
Navigates and changes settings in the OSD
Quick Menu – For Volume
7.
Turns the projector On or Off
8.
POWER LED
Green
Ready to power on (Standby)
Lamp Lit , System stable
Over Temperature
40
Flashing
Error code
9.
Navigates in the OSD
Quick Menu – For Keystone
15
10.
TEMP LED
Red
Over Temperature
40
11.
SOURCE
Enter the Source menu
15
12.
LAMP LED
Red
Lamp Fail
40
Flashing
Error code
3
1 2
6
4 5
1012 11 79
8
