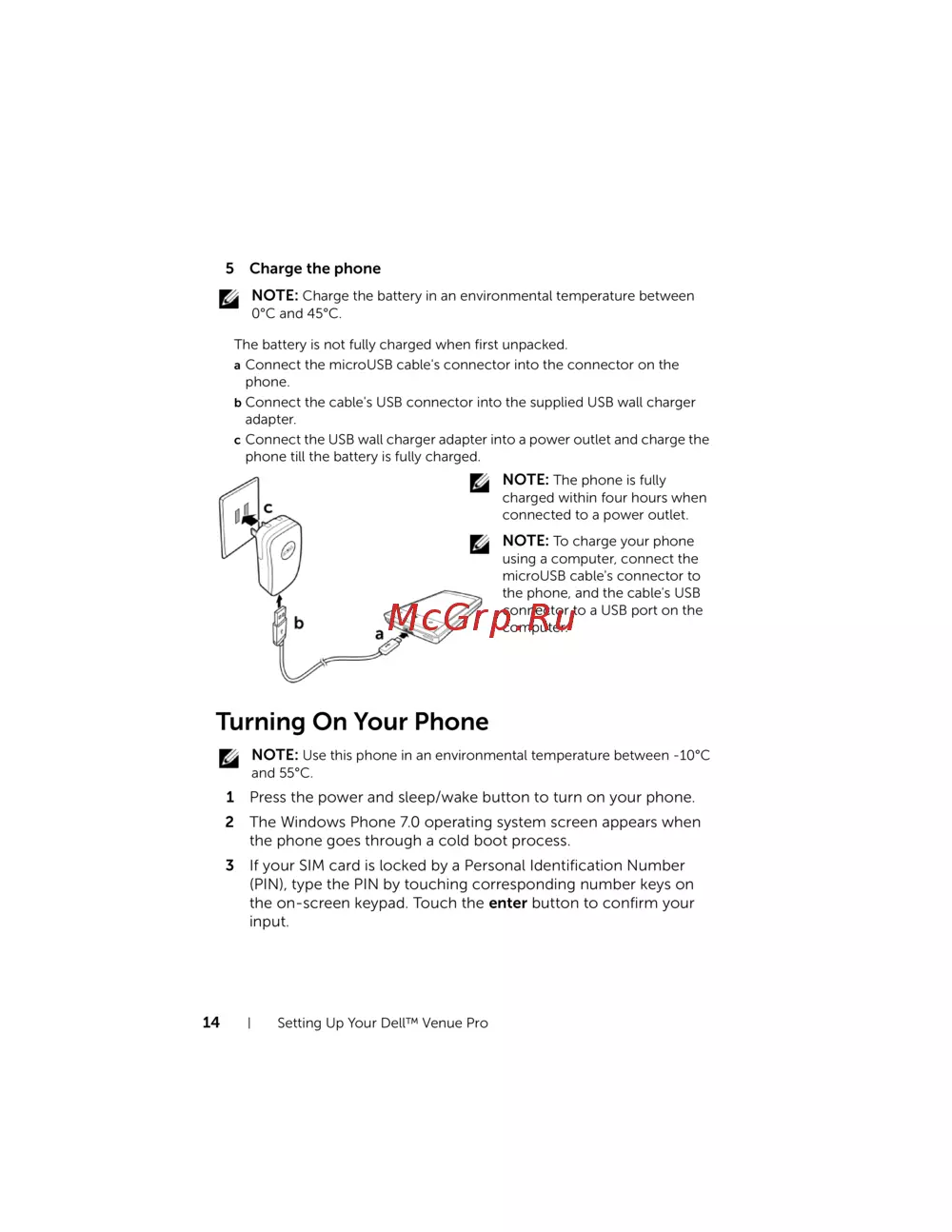

14 Setting Up Your Dell™ Venue Pro
5 Charge the phone
NOTE: Charge the battery in an environmental temperature between
0°C and 45°C.
Turning On Your Phone
NOTE: Use this phone in an environmental temperature between -10°C
and 55°C.
1 Press the power and sleep/wake button to turn on your phone.
2 The Windows Phone 7.0 operating system screen appears when
the phone goes through a cold boot process.
3 If your SIM card is locked by a Personal Identification Number
(PIN), type the PIN by touching corresponding number keys on
the on-screen keypad. Touch the enter button to confirm your
input.
The battery is not fully charged when first unpacked.
a Connect the microUSB cable's connector into the connector on the
phone.
b Connect the cable's USB connector into the supplied USB wall charger
adapter.
c Connect the USB wall charger adapter into a power outlet and charge the
phone till the battery is fully charged.
NOTE: The phone is fully
charged within four hours when
connected to a power outlet.
NOTE: To charge your phone
using a computer, connect the
microUSB cable's connector to
the phone, and the cable's USB
connector to a USB port on the
computer.
bk0.book Page 14 Monday, November 8, 2010 4:26 PM
