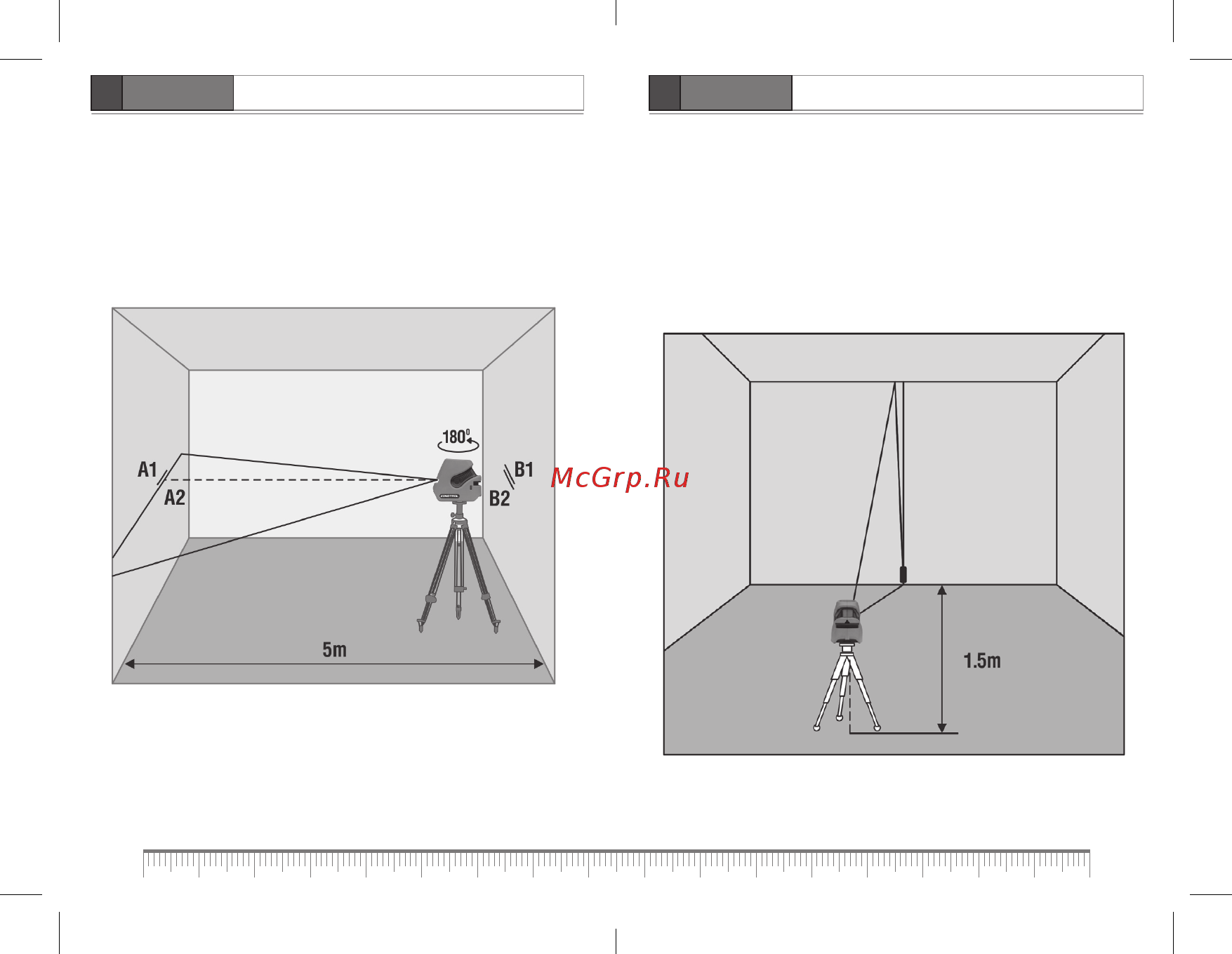

6. Install the instrument closer to the opposite wall. Mark location of

horizontal line on the wall as B2.

7. Turn the instrument by 180° and mark location of horizontal line on

the opposite wall as A2.

8. Measure vertical distance between marks A1, A2 and B1, B2. If

distance between measured values exceeds 3 mm – please contact

service center.

Check of vertical line

Use a plumb bob as a reference of a vertical. Place the instrument at

distance of 1,5 m from the plumb bob.

1. Move lever lock to unlocked position , then switch on vertical

plane and align vertical laser line with the low point of plumb bob.

2. If deviation between the laser line and the plumb line exceeds

±0,3 mm per 1 m of the plumb bob length (for a 2,5 m plumb bob

deviation shouldn’t exceed 0,75 mm) please contact service center.
