PA3500/4200
4
Open the unit
2
1

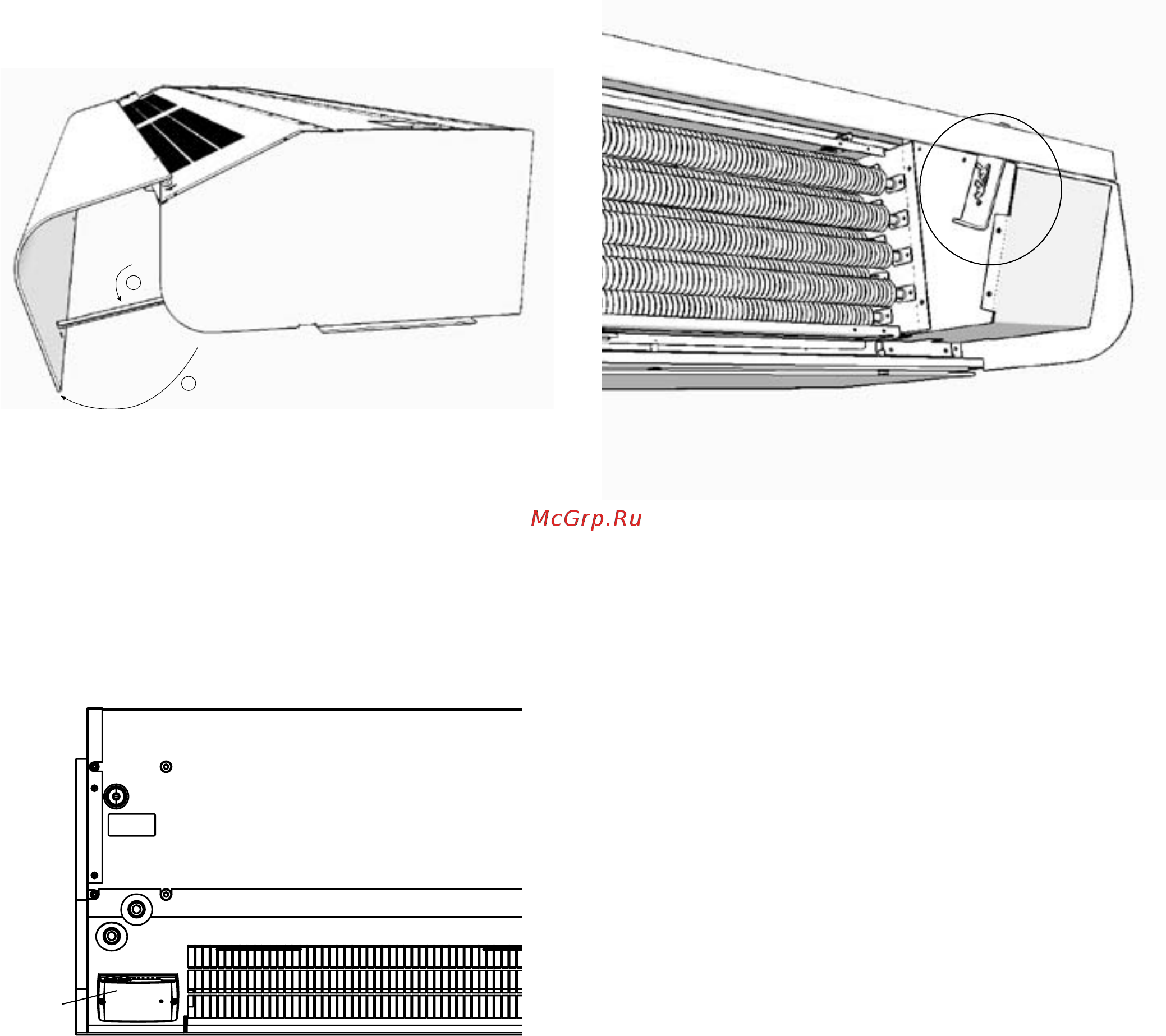

Fig. 1A: Open the unit by raising the front panel. The front
is blocked in open position with the front hatch hook
Fig. 2: Control card SIRe is integrated in the air curtain at delivery.
SIRe
Integrated control system
Fig. 1B: When the front has been removed it it important
to be sure it is firmly seated in the front locks again.
