Frico pa4220e24 [16/36] Wiring diagrams
![Frico pa4220e24 [16/36] Wiring diagrams](/views2/1230835/page16/bg10.png)

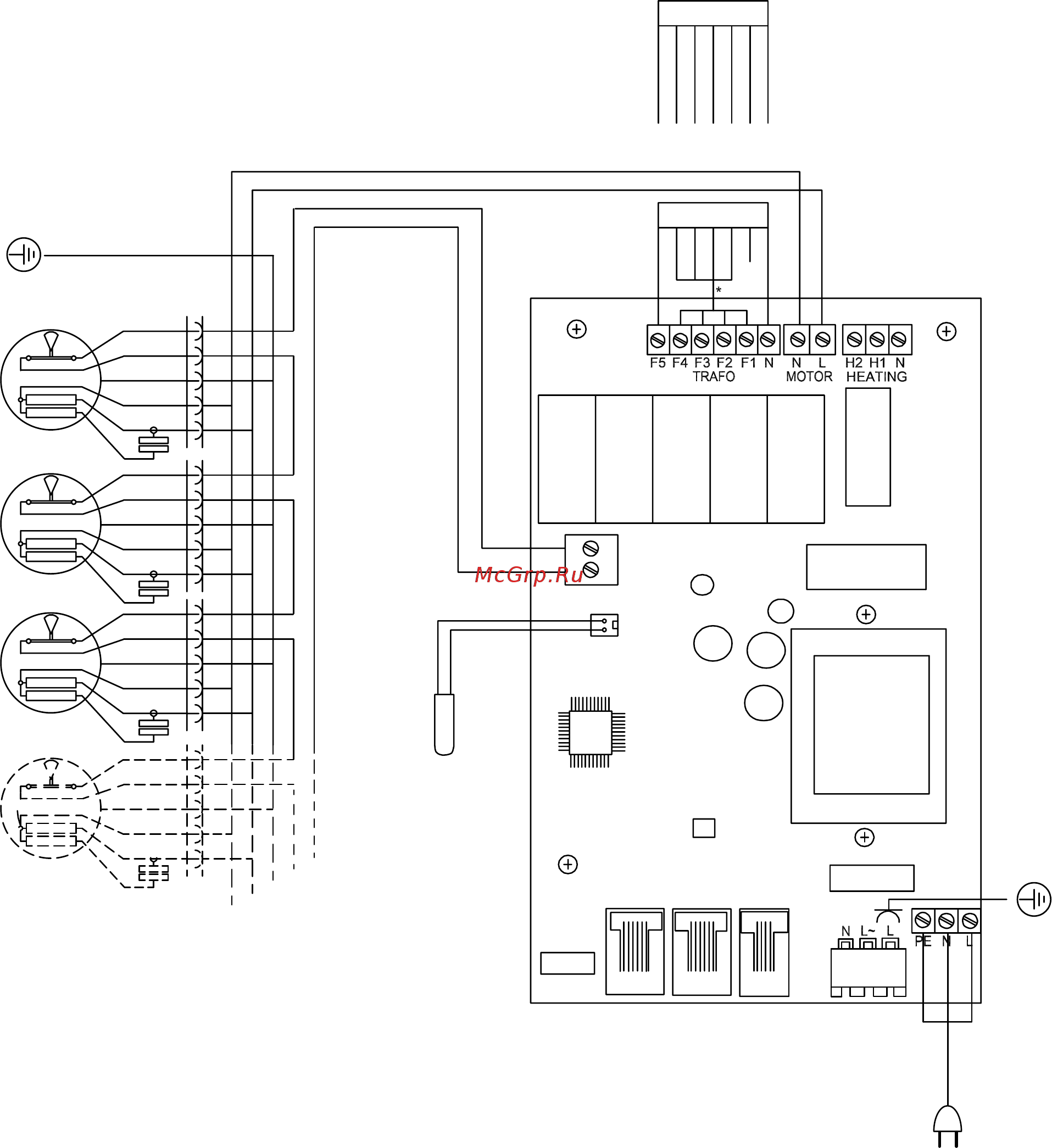

Internal wiring diagram
Wiring diagrams
PA3500 W
PA4200 W
4215W/4220W/4225W
3515W/3520W/3525W
4210W
3510W
SIReB1
230V~
Actuator
230V~
Transformer
230V
200V
170V
145V
120V
100V
N
Black
Blue
White
White
Supply
230V~
C2
C1
ROOM
Internal
sensor
Motor
protection
°C°C°C°C
Transformer
230V
200V
170V
145V
120V
100V
N
Yellow
Orange
Red
Brown
Black
Green
Blue
PA3500/4200
16
