Karcher BR 530 Bp Pack [26/384] Setting the vacuum bar

– 8

Î Tilt the chassis upward and lock it.

Î Switch on the button for brush opera-

tions and suction turbine

Note

If the brush motor does not run when

switched on, then brush motor is to be re-

leased by pulling the machine backward.

Î Perform the cleaning operation.

Î Reducing the speed: Turn the button in

"–" direction.

Î Increasing the speed: Turn the button in

"+" direction.

Î Set the water quantity at the regulation

knob according to the dirt level and the

type of flooring.

Note

Carry out initial cleaning attempts with low

quantity of water. Slowly increase the wa-

ter quantity till the desired cleaning result is

achieved.

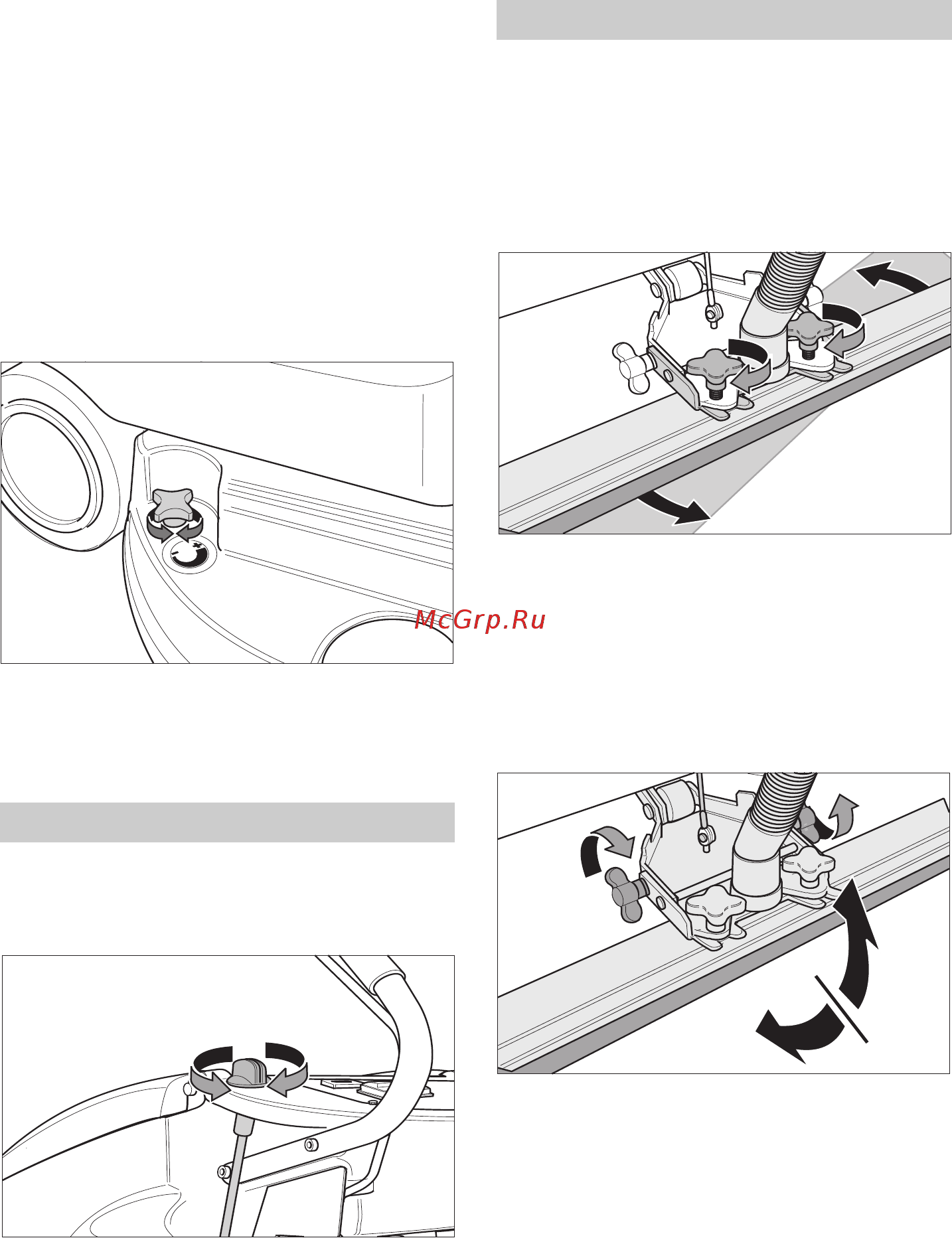

To improve the vacuuming result on tiled

floors the vacuum bar can be turned to an

oblique position of up to 5°.

Î Loosen cross-handles.

Î Turn the vacuum bar.

Î Tighten the cross-handles.

If the vacuum result is unsatisfactory the in-

clination of the straight vacuum bar can be

modified.

Î Release the wing nuts.

Î Tilt the vacuum bar.

Î Tighten the wing nuts.

Cleaning

Set the advance speed (only

BD 530 BAT or BD 530 XL BAT)

Setting the water quantity

Setting the Vacuum Bar

Oblique position

Inclination
