Asus Striker Extreme [130/168] Audio setup wizard

5-12 Chapter 5: Software support

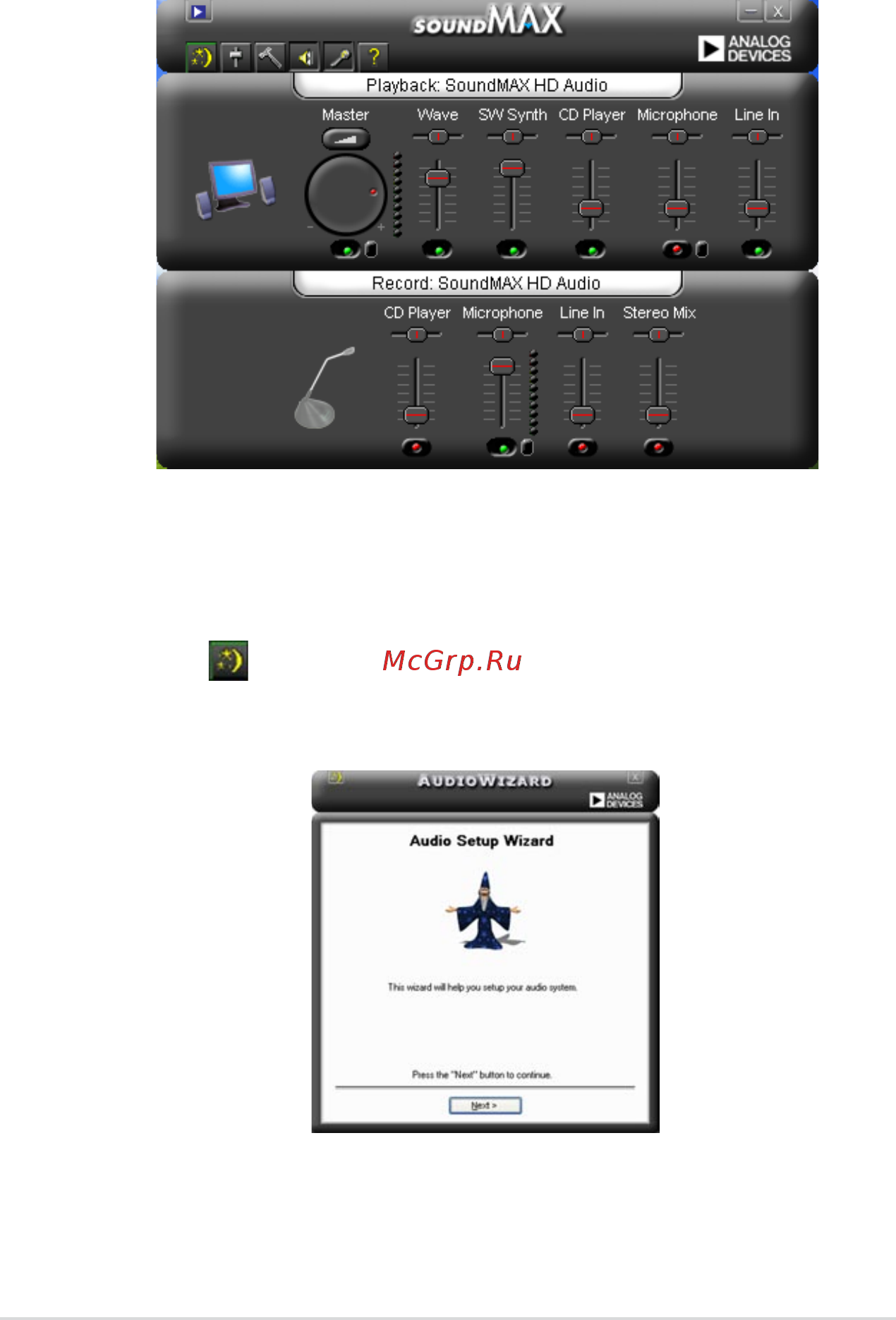

From the taskbar, double-click on the SoundMAX

icon to display the SoundMAX

Control Panel.

Audio Setup Wizard

By clicking the icon from the SoundMAX

control panel, you can easily

congure your audio settings. Simply follow succeeding screen instructions and

begin enjoying High Denition Audio.
