Connecting the Monitor

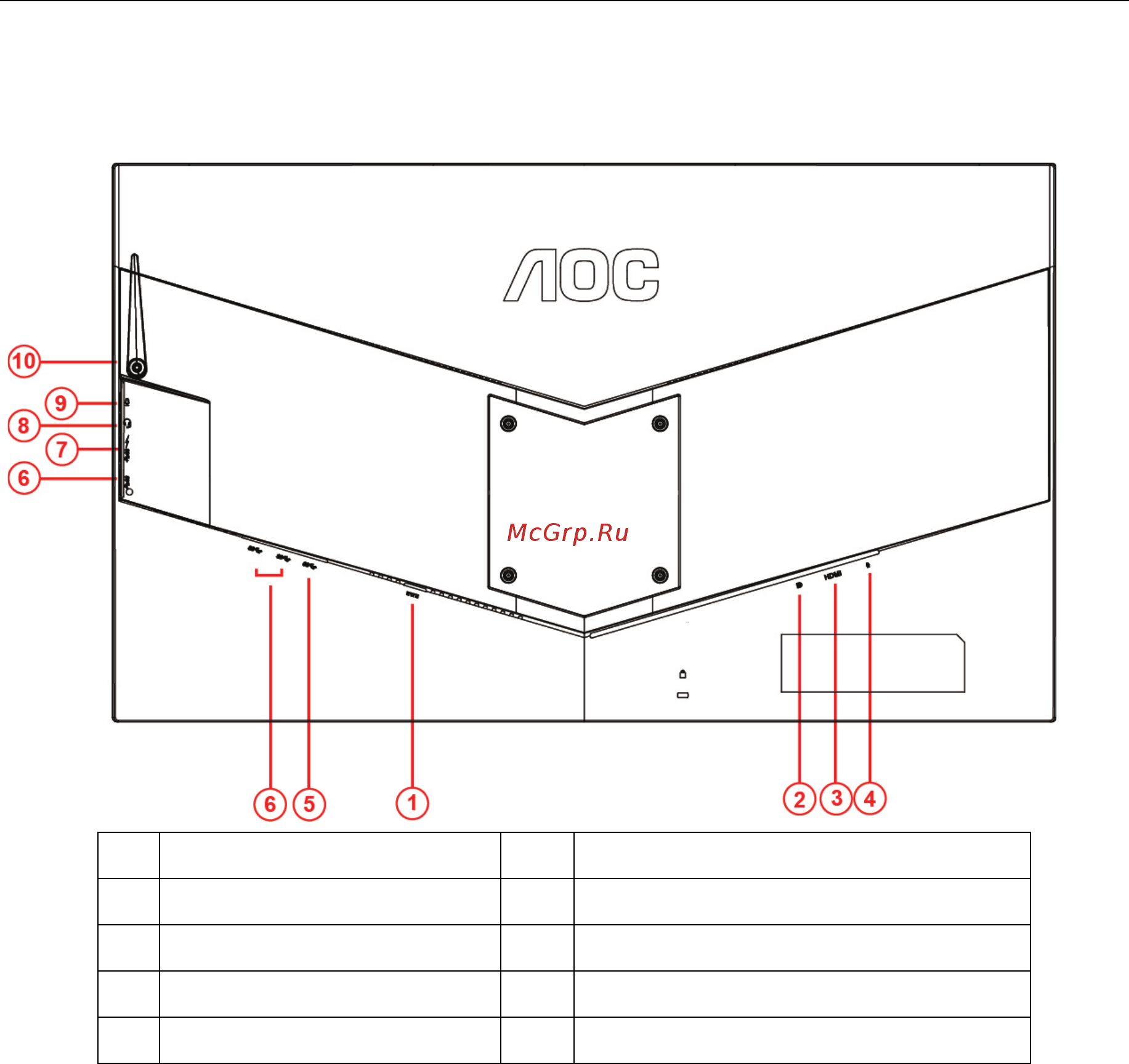

Cable Connections In Back of Monitor and Computer:

1 Power 6 USB3.0 downstream

2 DP 7 USB3.0+ fast charging

3 HDMI 8 Earphone(Combined with microphone)

4 Microphone out 9 Microphone in

5 USB3.0 upstream 10 Headphone hook

To protect equipment, always turn off the PC and LCD monitor before connecting.

1 Connect the power cable to the DC port on the back of the monitor.

2 Connect one end of the DP cable to the back of the monitor and connect the other end to the computer’s DP

port.

3 Connect one end of the HDMI cable to the back of the monitor and connect the other end to the computer’s

HDMI port.

4 Connect one end of the AUDIO cable to the Microphone out and connect the other end to the computer's

Microphone port

5 Turn on your monitor and computer.

6 Video content supporting resolution:

DP:2560 x 1440@144Hz

(Over clock off,Maximum)

DP:2560 x 1440@165Hz (Over clock on, Maximum)

HDMI:2560 x 1440@60Hz (Maximum)

If your monitor displays an image, installation is complete. If it does not display an image, please refer

Troubleshooting.
