Hyundai H-HAS6032sub [4/16] Accessories

H-HAS6032sub (www.hyundai-electronics.ru) 4

Accessories

 Instruction manual

 Remote control

 Battery (2 pcs)

 Consumer information and warranty card

 Subwoofer (1 pc)

 FM Antenna (option)

Description of the subwoofer

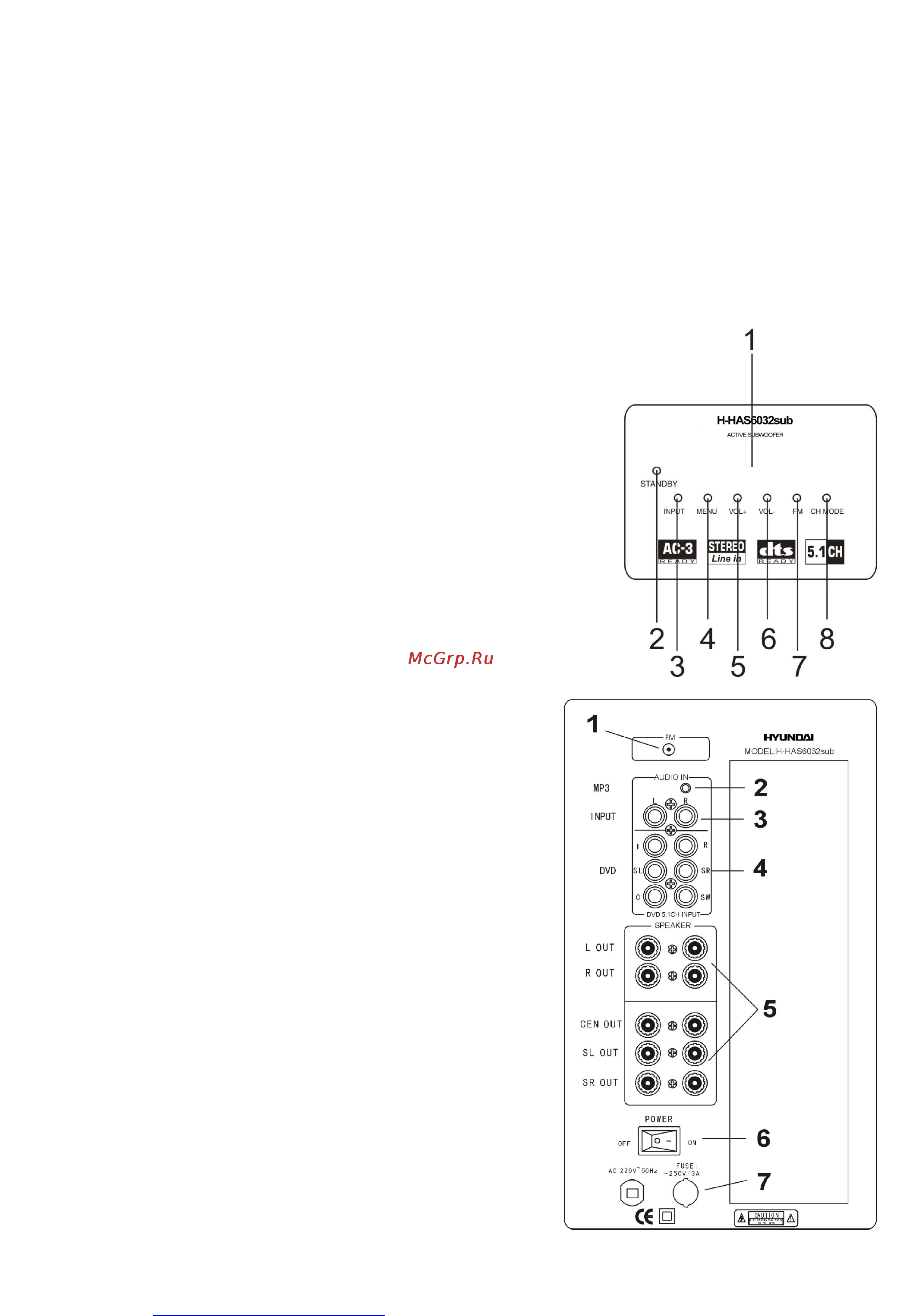

Front panel of the subwoofer

1. Display

2. STANDBY button

3. INPUT button

4. MENU button

5. VOL+ button

6. VOL- button

7. FM button (option)

8. CH MODE button

Rear panel of the subwoofer

1. FM antenna input (option)

2. 3.5 mm jack input

3. Input jacks for connecting of external equipment 2.0

R – input jack for connecting right stereo channel

L – input jack for connecting left stereo channel

4. Input jacks for connecting of external equipment 5.1

R – input jack for connecting right front channel

L – input jack for connecting left front channel

SW – input jack for connecting subwoofer

C - input jack for connecting central channel

SR – input jack for connecting right rear channel

SL – input jack for connecting left rear channel

5. Output jacks for connecting speakers to subwoofer.

SR OUT (+/-) – input jacks for connecting right rear speaker

SL OUT (+/-) – input jacks for connecting left rear speaker

R out (+/-)– input jacks for connecting right front speaker

L out (+/-)– input jacks for connecting left front speaker

CEN OUT (+/-) – input jacks for connecting central speaker

6. Power On/Off button

7. Fuse
