Connection

Make sure to turn off your computer or audio equipment. Turn down all volume controls before you

start set-up procedure.

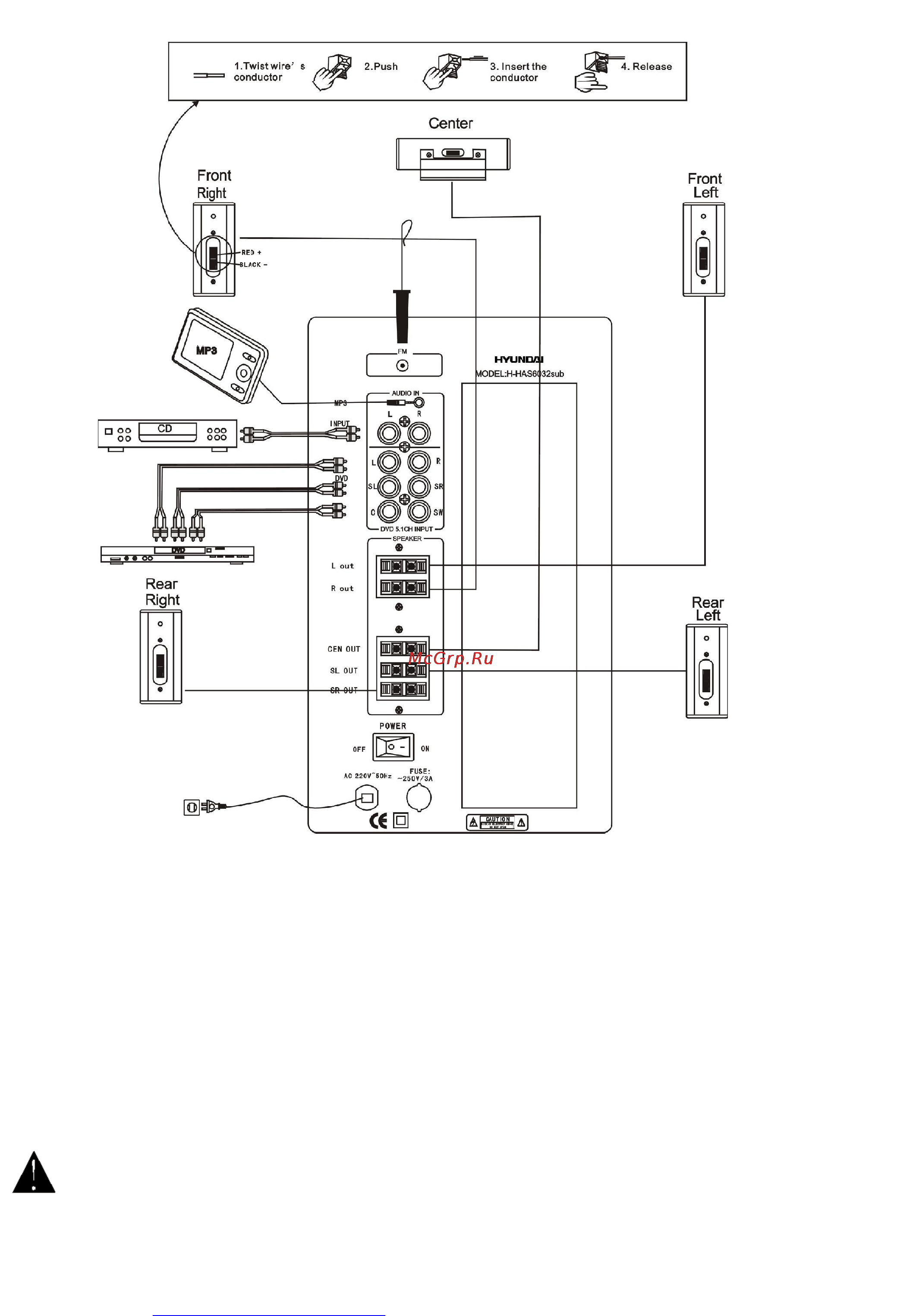

1. Connect the wire of front right and left unit, central unit, rear right and left unit to the connectors on the

back panel on the subwoofer marked Lout, Rout, CEN OUT, SR OUT and SL OUT.

2. Connect the RCA audio cable to the corresponding connectors on the 5.1 sound card of the PC or DVD; plug

the other end of the audio signal input cables to the corresponding audio signal input connectors on the back

panel of the subwoofer.

3. When you turn the power switch on, it is standby/mute state.

4. Push down the standby key.

NOTE

Unplug the system from the wall socket during connection.

To get the proper sound effect, the speaker terminals on the unit and the speakers should be

connected with proper polarity. The + terminal on the unit should be connected to the + terminal

on the speaker (and – to –).

Do not leave objects generating magnetism near the speakers.
