Tohatsu MFS 3.5 A2 [21/165] Engine dimensions
![Tohatsu MFS 3.5 A2 [21/165] Engine dimensions](/views2/1240886/page21/bg15.png)
2-2
Service Data
4st 2/2.5/3.5 2007
O
N
M
HG
D
F
L
C
B
K
J
P
I
E
OIL LEVE
O I L
A
Item Type Unit mm in
A mm/in 377 14.84
S mm/in 649 25.55
B
L mm/in 776 30.55
S mm/in 435 17.13
C
L mm/in 562 22.13
D mm/in 446 17.56
E mm/in 108 4.25
F mm/in 354 13.94
G mm/in 336 13.23
H mm/in 303 11.93
I mm/in 58 2.28
J mm/in 208 8.19
K mm/in 628 24.72
L mm/in 363 14.29
M mm/in 340 13.39
N mm/in 276 10.87
O mm/in 453 17.83
P deg. 65

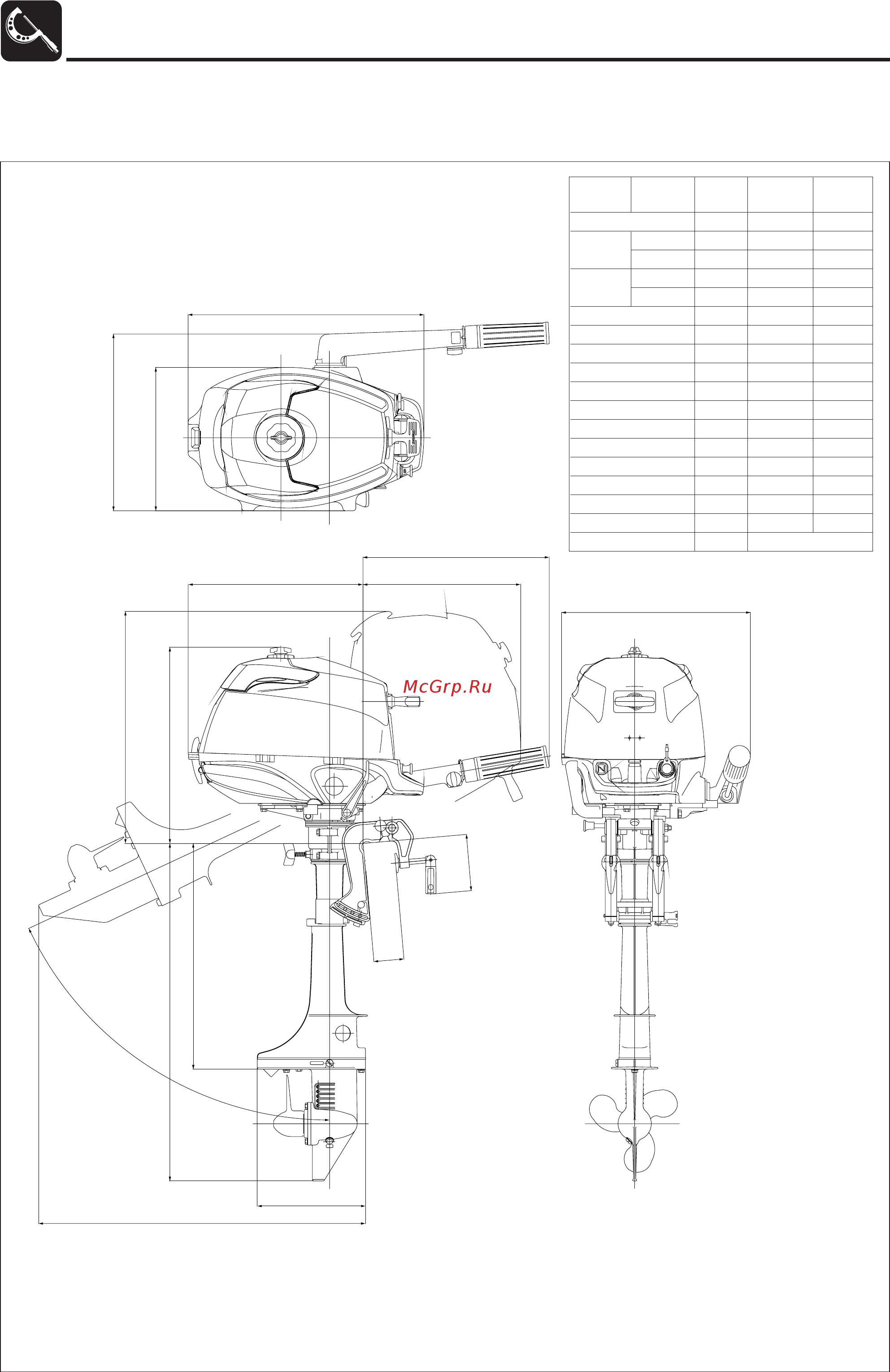

1.Outline Dimensons
1）Engine Dimensions
MFS2_sec02_070524.qxd 07.5.24 3:12 PM ページ 2
