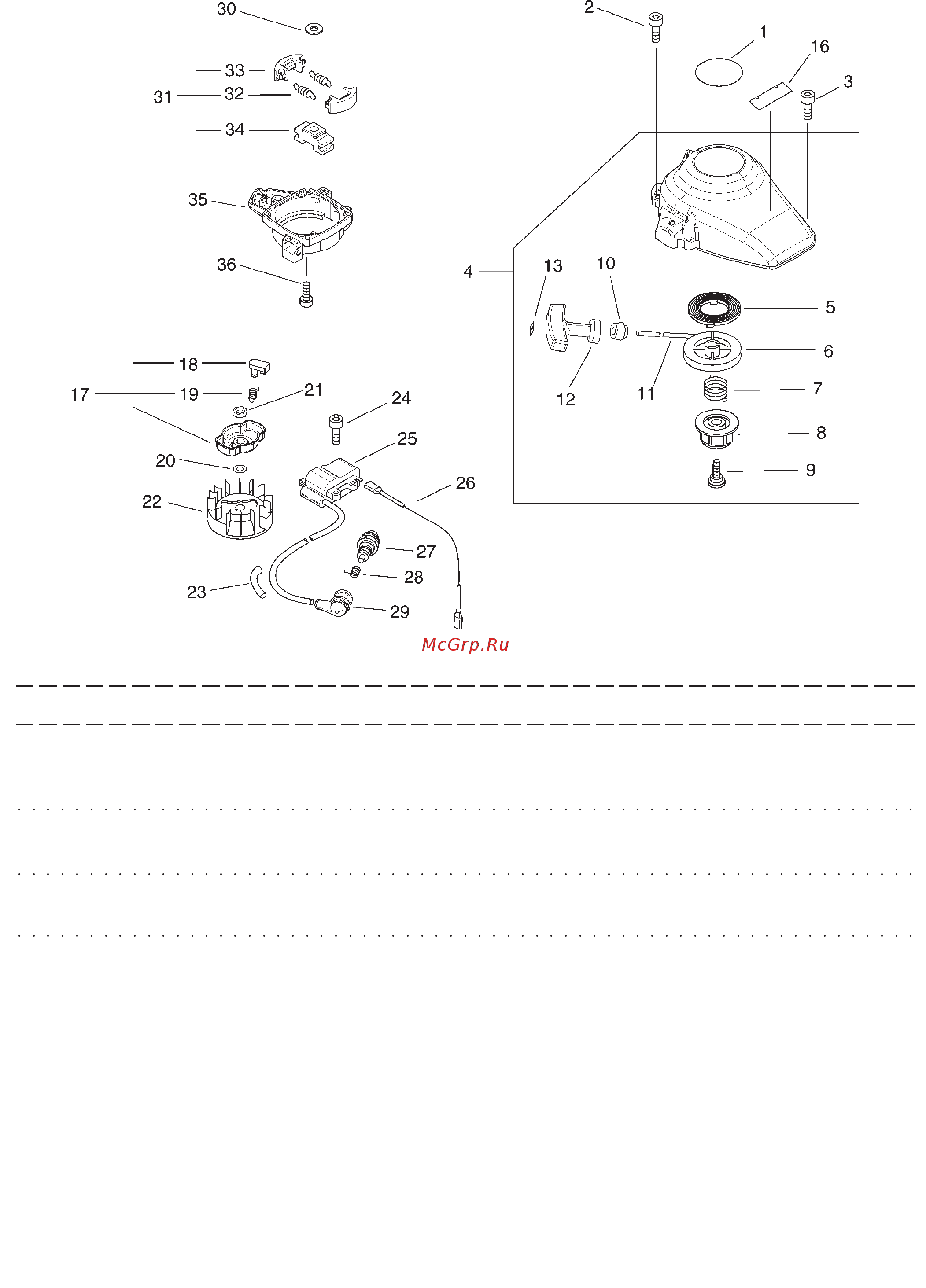

Echo HC-341ES [4/16] Hc 341es 2 magneto fan case
![Echo HC-341ES [4/16] Hc 341es 2 magneto fan case](/views2/1241306/page4/bg4.png)
- 3 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
27 A425-000000 1 SPARKPLUG
28 A426-000010 1 TERMINAL,SPARKPLUG
29 A427-000013 1 CAP,SPARK PLUG
30 610350-12360 1 WASHER
31 A056-000190 1 CLUTCH ASY
32 + A566-000000 2 SPRING, CLUTCH
33 + 175017-44331 2 SHOE, CLUTCH
34 + A552-000080 1 HUB, CLUTCH
35 A570-000140 1 CASE,CLUTCH
36 V804-000060 4 BOLT, TORX 4
HC-341ES 2 Magneto, Fan Case
