![Echo HC-341ES [5/16] Hc 341es 3 air cleaner muffler](/img/pdf.png)
Echo HC-341ES [5/16] Hc 341es 3 air cleaner muffler
![Echo HC-341ES [5/16] Hc 341es 3 air cleaner muffler](/views2/1241306/page5/bg5.png)
- 4 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
1 V805-000190 2 BOLT, TORX 5
3 145806-42030 1 MUFFLER
4 145866-42031 1 GASKET, MUFFLER LID
5 A313-000870 1 GUIDE, EXHAUST
6 V804-000030 3 BOLT, TORX 4
7 A313-001020 1 GUIDE, EXHAUST
8 V804-000050 1 BOLT, TORX 4
9 V104-000850 1 GASKET,EXHAUST
10 A320-000430 1 COVER,MUFFLER
11 A323-000010 1 PIECE,COVER
12 V805-000150 2 BOLT, TORX 5
13 V103-000180 1 GASKET,INTAKE
14 A200-000300 1 INSULATOR, INTAKE
15 V805-000220 2 BOLT, TORX 5
16 V103-000410 1 GASKET,INTAKE
17 A021-001610 1 CARBURETOR,DIAPHRAGM
18 900515-00006 1 NUT, FLANGE 6
19 900502-00006 1 NUT 6 (3N)
20 V430-002120 1 CABLE,BOWDEN
21 P021-015100 1 CLEANER CASE ASY
22 129011-52730 1 PLATE, PREVENT
23 V805-000100 2 BOLT, TORX 5
24 130310-54130 1 FILTER, AIR
25 A232-000400 1 LID,CLEANER
26 890332-52730 1 LABEL, CHOKE
27 V299-000250 1 KNOB,FASTENER
28 X505-002310 1 LABEL,CAUTION

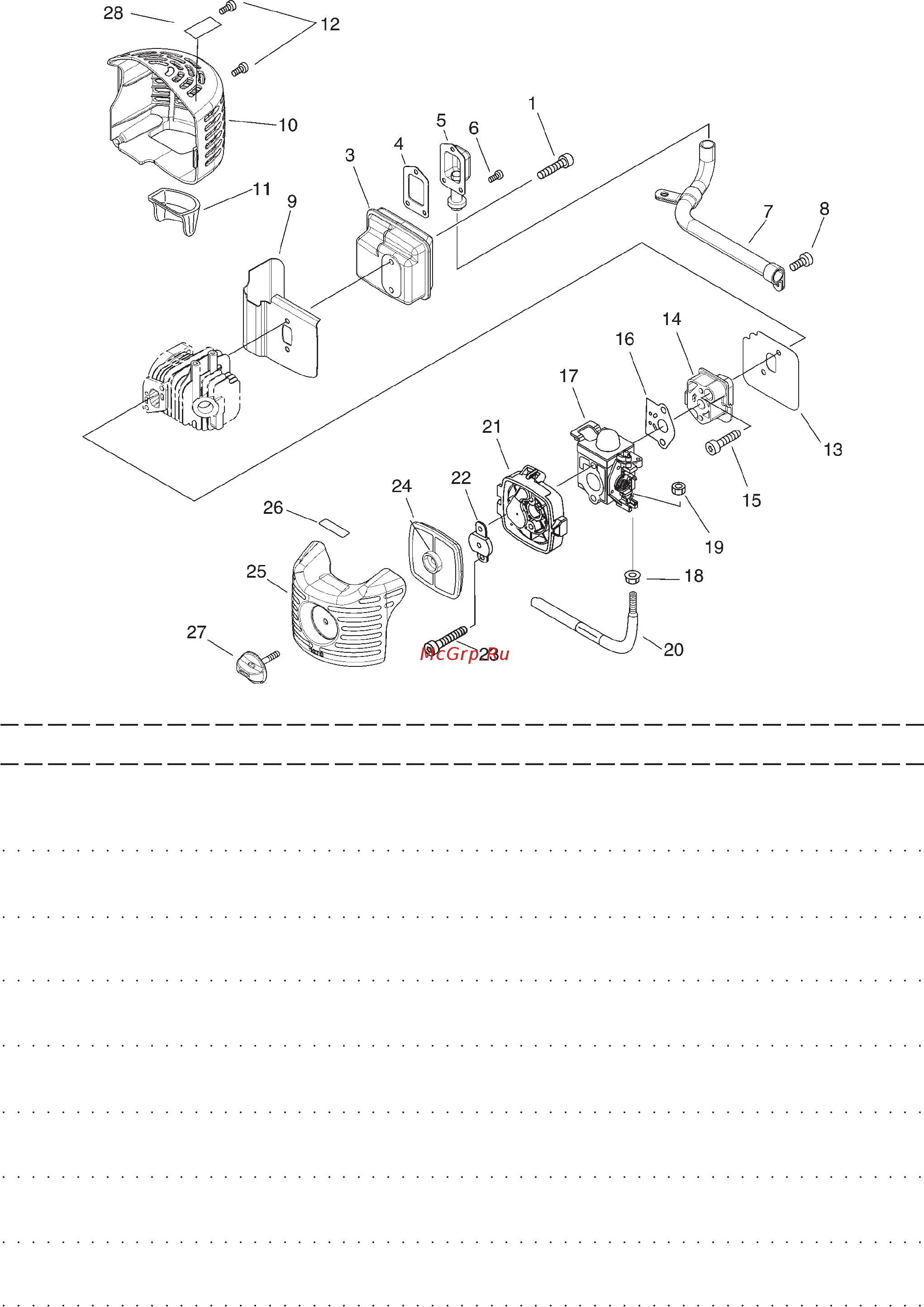

HC-341ES 3 Air Cleaner, Muffler
Содержание
- 100204 52132 1 crankcase kit 2 100212 42031 2 oilseal 3 900162 05028 3 bolt h s 5 28 4 94035 36201 2 bearing ball 5 100242 42030 1 gasket crankcase 6 100215 03930 2 pin dowel 7 a011 000223 1 crankshaft asm 8 p021 014590 1 piston kit 9 100014 08960 2 spacer piston pin 10 100113 05930 1 bearing needle 11 100015 04630 2 circlip piston pin 12 100013 11520 1 pin piston 13 a101 000130 1 ring piston 14 v100 000250 1 gasket cyl 15 a130 000890 1 cylinder 16 900162 05022 2 bolt h s 5 22 17 a160 000880 1 cover cylinder 18 v805 000150 1 bolt torx 5 19 a127 000170 1 cover dust 21 v805 000150 1 bolt torx 5 2
- Hc 341es 1 cranckcase cylinder piston 2
- Key lv part number q ty description remarks 2
- Hc 341es 2 magneto fan case 3
- Key lv part number q ty description remarks 3
- X502 000330 1 label echo 2 v804 000060 4 bolt torx 4 3 v804 000000 1 bolt torx 4 4 a051 001110 1 starter recoil asy 5 177220 42030 1 spring rewind 6 p022 006830 1 drum 7 v452 000150 1 spring torsion 8 a507 000030 1 catcher pawl 9 177236 61830 1 screw 10 177227 42030 1 guide rope 11 p022 008260 1 rope 12 177228 27030 1 grip starter 13 177246 11120 1 clip starter rope 16 x503 009100 1 label model 17 a052 000210 1 pulley asm starter 18 p022 020030 2 pawl starter 19 p022 007980 2 spring return 20 900600 00008 1 washer 8 21 900512 00008 1 nut 3n 8 l h 22 a409 000160 1 rotor magneto 23 v475 001610 1 tube 24 v804 000070 2 bolt torx 4 25 a411 000130 1 coil ignition 26 v485 000870 1 lead 3
- A425 000000 1 sparkplug 28 a426 000010 1 terminal sparkplug 29 a427 000013 1 cap spark plug 30 610350 12360 1 washer 31 a056 000190 1 clutch asy 32 a566 000000 2 spring clutch 33 175017 44331 2 shoe clutch 34 a552 000080 1 hub clutch 35 a570 000140 1 case clutch 36 v804 000060 4 bolt torx 4 4
- Hc 341es 2 magneto fan case 4
- Key lv part number q ty description remarks 4
- Hc 341es 3 air cleaner muffler 5
- Key lv part number q ty description remarks 5
- V805 000190 2 bolt torx 5 3 145806 42030 1 muffler 4 145866 42031 1 gasket muffler lid 5 a313 000870 1 guide exhaust 6 v804 000030 3 bolt torx 4 7 a313 001020 1 guide exhaust 8 v804 000050 1 bolt torx 4 9 v104 000850 1 gasket exhaust 10 a320 000430 1 cover muffler 11 a323 000010 1 piece cover 12 v805 000150 2 bolt torx 5 13 v103 000180 1 gasket intake 14 a200 000300 1 insulator intake 15 v805 000220 2 bolt torx 5 16 v103 000410 1 gasket intake 17 a021 001610 1 carburetor diaphragm 18 900515 00006 1 nut flange 6 19 900502 00006 1 nut 6 3n 20 v430 002120 1 cable bowden 21 p021 015100 1 cleaner case asy 22 129011 52730 1 plate prevent 23 v805 000100 2 bolt torx 5 24 130310 54130 1 filter air 25 a232 000400 1 lid cleaner 26 890332 52730 1 label choke 27 v299 000250 1 knob fastener 28 x505 002310 1 label caution 5
- Hc 341es 4 fuel tank 6
- Key lv part number q ty description remarks 6
- V805 000160 3 bolt torx 5 2 900603 00005 3 washer 5 3 v353 000231 3 collar 5 4 p021 012210 1 cap fuel asy 5 a365 000060 1 connector cap 6 131016 55830 1 gasket fuel cap 7 131205 07320 1 strainer fuel 8 132012 12361 1 pipe 9 132013 26630 1 clip 10 v186 000140 1 joint pipe 11 132013 09820 1 clip 12 132115 55930 1 grommet fuel 13 130110 54430 1 pipe impulse 14 132010 40830 1 pipe 3 6 75 15 v471 001880 1 pipe 16 437411 19830 1 clip oil pipe 17 a356 000030 1 valve check 18 a350 000590 1 tank fuel 6
- Hc 341es 5 handle 7
- Key lv part number q ty description remarks 7
- P021 014900 1 front handle asy 4 c423 000350 1 fixture handle 5 c600 001020 1 frame 6 v420 001730 2 cushion 7 v401 000160 1 cushion 5 8 v805 000220 2 bolt torx 5 9 a440 001140 1 switch on off 11 900500 00005 1 nut 5 12 p021 014630 1 handle asy rear 10 v804 000010 3 bolt torx 4 16 v805 000050 1 bolt torx 5 13 v452 000350 1 spring torsion 14 c460 000111 1 lockout throttle 15 c450 000270 1 control throttle 16 v805 000050 1 bolt torx 5 17 x502 000390 1 label echo 7
- C531 000440 1 case gear 3 v450 000690 4 spring compression 4 v805 000150 4 bolt torx 5 5 v150 001950 2 plate eye 6 c532 000080 2 rod connecting 7 610327 01261 2 bearing needle 8 v555 000000 2 bearing needle 10 9 100014 17330 2 spacer piston pin 10 v060 000040 1 gear spur 11 v110 000090 1 gasket gear case 12 c531 000450 1 case gear 13 900804 00608 1 bearing ball 608 14 v650 000160 1 gear spur 15 900812 06200 1 bearing ball 6200 16 v806 000010 3 bolt torx 6 17 a556 000500 1 drum clutch 18 v804 000060 6 bolt torx 4 19 v805 000010 4 bolt torx 5 20 94984 06075 1 nipple grease 8
- Hc 341es 6 gear case 8
- Key lv part number q ty description remarks 8
- C571 000040 1 guide correction 2 92108 05000 3 nut flange 3 v805 000130 4 bolt torx 5 4 433022 06460 5 nut 5 x505 002030 1 label caution 6 v805 000110 1 bolt torx 5 7 x425 000450 1 support cutter 8 x425 000460 1 support cutter 9 x411 000680 1 cutter 10 x411 000690 1 cutter 11 v353 000260 5 collar 5 12 v541 000150 1 seal 13 v805 000220 3 bolt torx 5 14 v150 001960 1 plate eye 15 699115 02062 5 bolt 16 699118 04560 5 washer 17 v805 000180 2 bolt torx 5 18 v150 001970 1 plate eye 19 898523 08960 1 scabbard blade 20 898510 07130 1 bag tool 21 895112 00330 1 spanner 8 10 22 895410 03930 1 wrench w s driver 23 x605 000050 1 tool l wrench 9
- Hc 341es 7 cutter tools 9
- Key lv part number q ty description remarks 9
- A021 001610 1 carburetor diaphragm 1 125344 13931 3 screw 2 p005 001240 1 post 3 p005 002050 1 cover asy rotor 4 p005 000100 1 screw throttleadjust 5 p005 000190 1 e ring 7 p005 000280 1 o ring 8 p005 000940 1 spring meter lever 9 125323 08260 1 arm valve 10 125338 13930 1 pin metering arm 11 125337 08260 1 valve inlet needle 12 125339 42030 1 screw 13 p005 000200 1 gasket metering 14 p005 001780 1 diaphragm 15 125342 52130 1 cover diaphragm 16 125344 52130 3 screw 17 p005 000010 1 strainer 18 p005 002060 1 needle high speed 19 p005 001250 1 retainer plug ball 20 p005 001270 1 plug h ajust screw 21 p005 000510 1 diaphragm pump 22 p005 000520 1 gasket pump 23 p005 001890 1 base asy primer 24 p005 000270 1 screw 10
- Hc 341es 8 carbrettor 10
- Key lv part number q ty description remarks 10
- 125381 46730 1 pump priming 26 p005 000250 1 retainer 27 p005 001900 4 screw 28 p005 001000 1 roller guide 11
- Hc 341es 8 carburettor 11
- Key lv part number q ty description remarks 11
- Hc 341es 9 gasket diaphragm kit 12
- Key lv part number q ty description remarks 12
- P005 001660 1 diaphragm gasket kit 8 14 p005 001780 1 diaphragm 8 13 p005 000200 1 gasket metering 8 21 p005 000510 1 diaphragm pump 8 22 p005 000520 1 gasket pump 12
- Hc 341es 10 rebuild kit 13
- Key lv part number q ty description remarks 13
- P005 001670 1 rebuild kit 8 17 p005 000010 1 strainer 8 11 125337 08260 1 valve inlet needle 8 10 125338 13930 1 pin metering arm 8 8 p005 000940 1 spring meter lever 8 10 125323 08260 1 arm valve 8 14 p005 001780 1 diaphragm 8 13 p005 000200 1 gasket metering 8 21 p005 000510 1 diaphragm pump 8 22 p005 000520 1 gasket pump 8 28 p005 001000 1 roller guide 13
- Parts number key no parts number key no parts number key no 14
- Parts number key no parts number key no parts number key no 15
- No 4 240 650173 16
