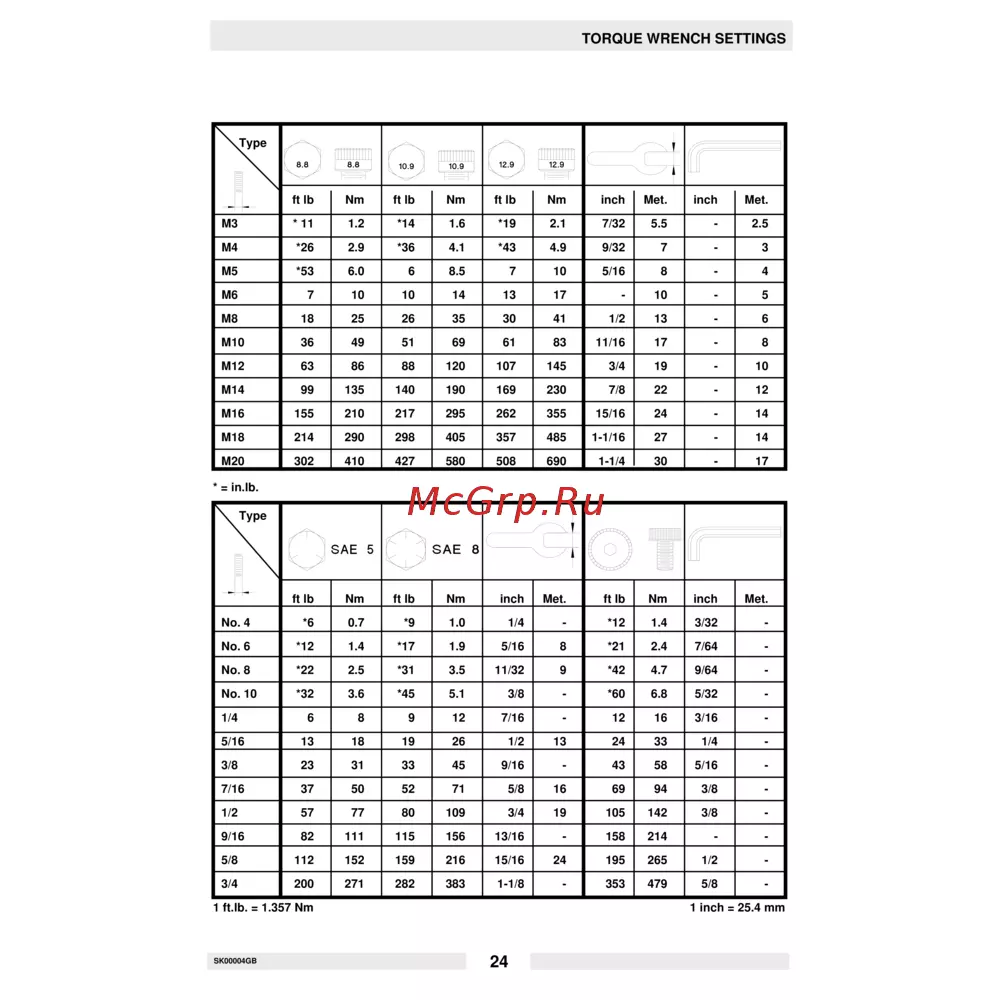

Wacker Neuson 5000005216 [26/32] Torque wrench settings

SK00004GB

Type

ft lb Nm ft lb Nm ft lb Nm inch Met. inch Met.

M3 * 11 1.2 *14 1.6 *19 2.1 7/32 5.5 - 2.5

M4 *26 2.9 *36 4.1 *43 4.9 9/32 7 - 3

M5 *53 6.0 6 8.5 7 10 5/16 8 - 4

M6 71010141317 -10 - 5

M8 18 25 26 35 30 41 1/2 13 - 6

M10 36 49 51 69 61 83 11/16 17 - 8

M12 63 86 88 120 107 145 3/4 19 - 10

M14 99 135 140 190 169 230 7/8 22 - 12

M16 155 210 217 295 262 355 15/16 24 - 14

M18 214 290 298 405 357 485 1-1/16 27 - 14

M20 302 410 427 580 508 690 1-1/4 30 - 17

* = in.lb.

Type

ft lb Nm ft lb Nm inch Met. ft lb Nm inch Met.

No. 4 *6 0.7 *9 1.0 1/4 - *12 1.4 3/32 -

No. 6 *12 1.4 *17 1.9 5/16 8 *21 2.4 7/64 -

No. 8 *22 2.5 *31 3.5 11/32 9 *42 4.7 9/64 -

No. 10 *32 3.6 *45 5.1 3/8 - *60 6.8 5/32 -

1/4 6 8 9 12 7/16 - 12 16 3/16 -

5/16 13 18 19 26 1/2 13 24 33 1/4 -

3/8 23 31 33 45 9/16 - 43 58 5/16 -

7/16 37 50 52 71 5/8 16 69 94 3/8 -

1/2 57 77 80 109 3/4 19 105 142 3/8 -

9/16 82 111 115 156 13/16 - 158 214 - -

5/8 112 152 159 216 15/16 24 195 265 1/2 -

3/4 200 271 282 383 1-1/8 - 353 479 5/8 -

1 ft.lb. = 1.357 Nm 1 inch = 25.4 mm

TORQUE WRENCH SETTINGS
