1. Place the plate compactor horizontally on a flat surface. Make sure the compactor is

level when checking the oil in the vibrator assembly.

2. Check vibrator oil level by removing the plug (vibrator oil

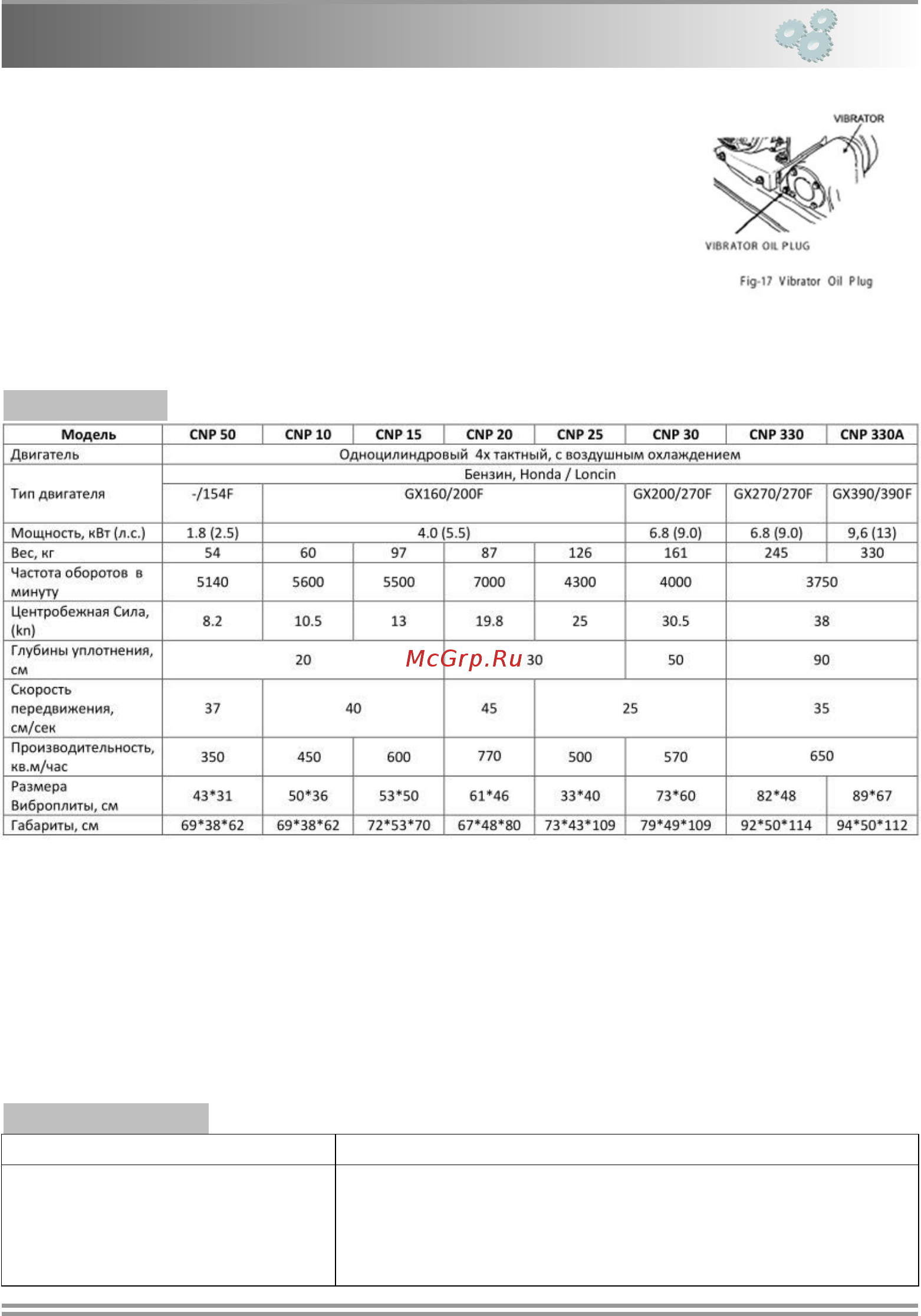

gauge) as shown in Fig-17.

The oil level should be up to the pill plug. If oil is required, replace

using SAE motor oil, as suggested in the table Fig-1.

3. When changing the vibrator oil, remove the drain plug (Fig-17),

and simply tip the compactor to drain the oil. Note that the oil

will drain more easily while it is hot.

SPECIFICATIONS

BEARINGS

The following bearings are sealed: Centrifugal clutch-grease lubricated Vibrator -Oil bath

lubricated.

FINISH

The machine is finished in gold equipment enamel, the handle in black baked enamel.

Exposed metal surfaces are zinc electroplated for corrosion protection.

TROUBLESHOOTING

SYMPTOM POSSIBLE CAUSES AND CORRECTION

Motor will not start - Check the ON/OFF switch to ensure that it is switched

“ON”.

- Check the fuel supply.

- If a Honda or Kama motor is fitted check the crankcase.
