Texas Handy Sweep 619TG [2/33] Handy sweep 710
![Texas Handy Sweep 619TG [2/33] Handy sweep 710](/views2/1245205/page2/bg2.png)
2
Actual model may vary from the illustration shown - Faktiske model kan variere fra de viste illustrationer
Ihr Modell kann von der Abbildung abweichen - Votre modèle actuel peut être différent des illustrations

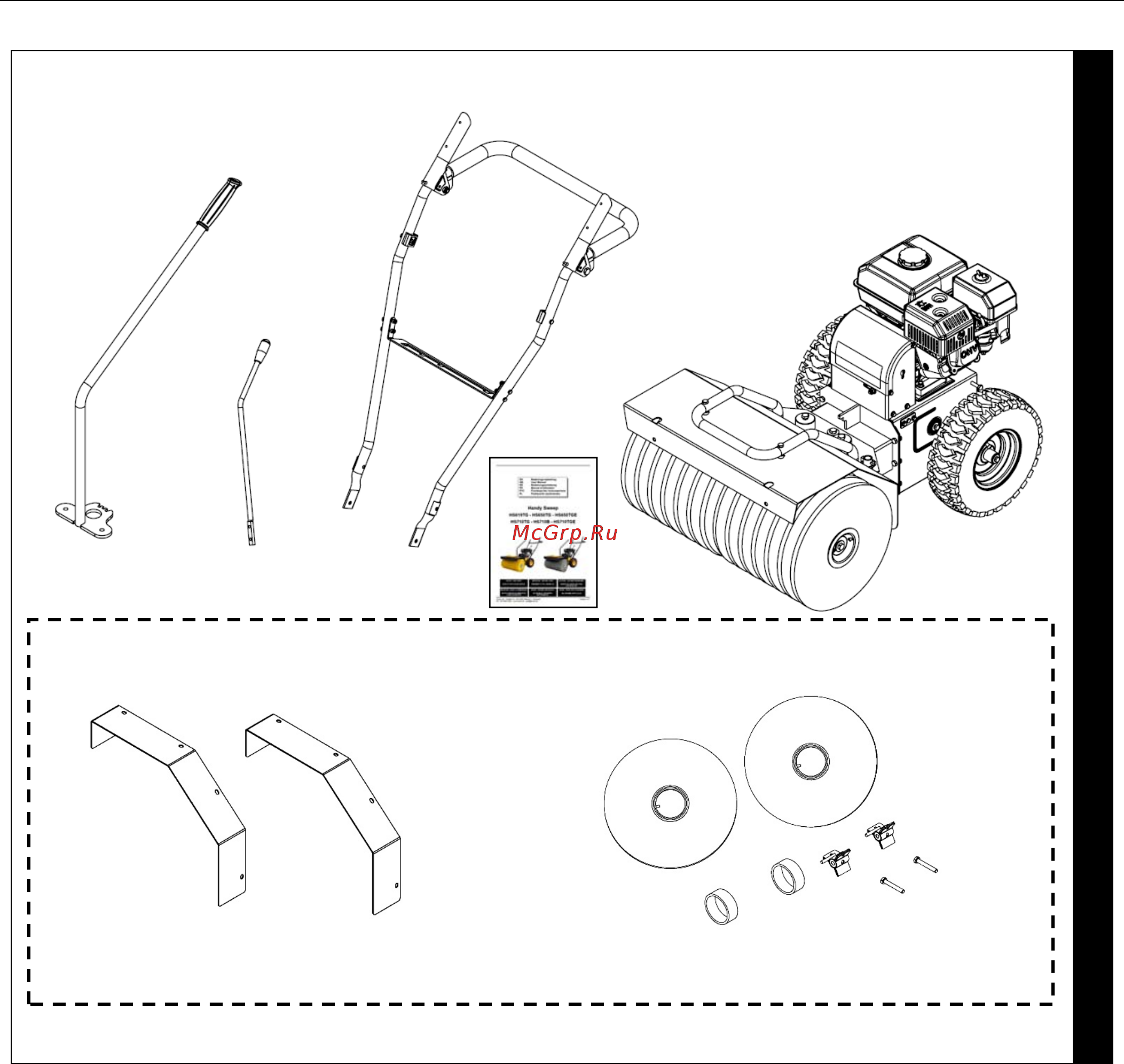

Illustrationer / Illustrations / Abbildungen / Illustration / Иллюстрации / Ilustracje
Figur / Figure / Abbildung / Изображение/ Ilustracja /
1
Handy Sweep 710
F
G
A
D
B
C
E
A
Содержание
- Dk betjeningsvejledning gb user manual de bedienungsanleitung fr manuel d utilisation рус руководство пользователя pl podręcznik użytkownika 1
- Handy sweep 1
- Hs619tg hs650tg hs650tge hs710tg hs710b hs710tge 1
- Manual_hs6xx_hs7xx_ 17_2 1
- Handy sweep 710 2
- Handysweep 710 6
- Height adjustment of brush when the brushes become worn it might be necessary to adjust the proximity of brushes to the working surface to adjust the height of the brushes follow figure 7 1 remove the lock pin 2 lift the front of the machine to free the brush and pull the supporting wheels out 3 remove or add the spacer ring 1 ring approx 5 mm 4 install support wheels remove add spacer ring fasten with locking pin hint complete one wheel at a time angle adjustment of brush the brush can be pivoted 20 degrees to either side this is done by pushing the swing handle down turning the brush and releases the handle so the detent clicks into place the swing handle is shown on figure 6 h technical specifications 15
- Troubleshooting problem solution the engine won t start 1 check sparkplug 2 check that the spark plug cap is fitted correctly 3 check if the motor is equipped with an ignition switch it must be activated 4 check if the motor is equipped with a fuel valve it must be activated the engine runs unevenly 1 check that the choke has been released 2 check fuel for impurities if the brush will not run 1 check that the clutch cable is adjusted correctly figure 5 2 check that the belt is tight if the machine will not run 1 check that the clutch cable is adjusted correctly figure 5 2 check the belt if the machine does not sweep effectively 1 check the distance between the brush and working surface 15
- Authorized representative for texas andreas petersen a s and responsible for documentation 33
- Ce_hs6xx_7xx 2017 33
- Knullen 22 dk 5260 odense s 33
- Martin enslev 33
- Product manager 33
- Texas andreas petersen a s 33
