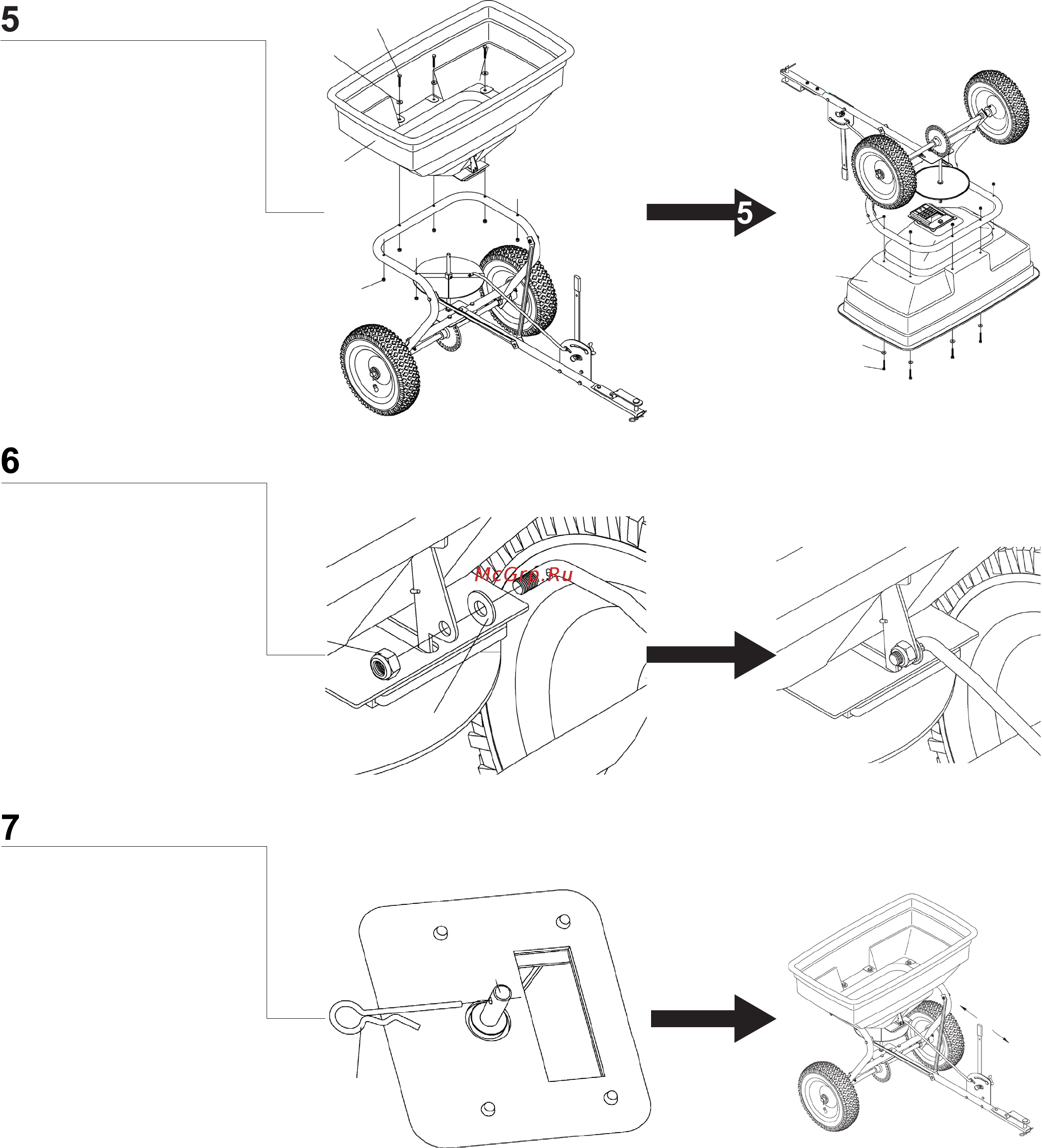

Attach the hopper (R)

onto the impeller frame

(M) aligning the impeller

axis to the bottom of the

hopper (R). Secure with

bolt (B), washer (H) and

nut (F)

Attach the dispenser lever

rod from the connection

axis (N) fasten the rod to

the bracket, positioned at

the bottom of the hopper

(R) insert the washer (I)

and secure with nut (G)

Attach the r-pin(L) into

the impeller axis, from the

inside of the hopper (R)

Ensure that the damper

at the bottom of the

hopper(R) opens and

closes properly. Push the

lever on the connection

axis (N) this should open

and close the plate in the

damper.

Warning: The gearbox is permanently lubricated at the factory, never open the gearbox.
