Texas Centrifugalspreder [7/12] Assembly

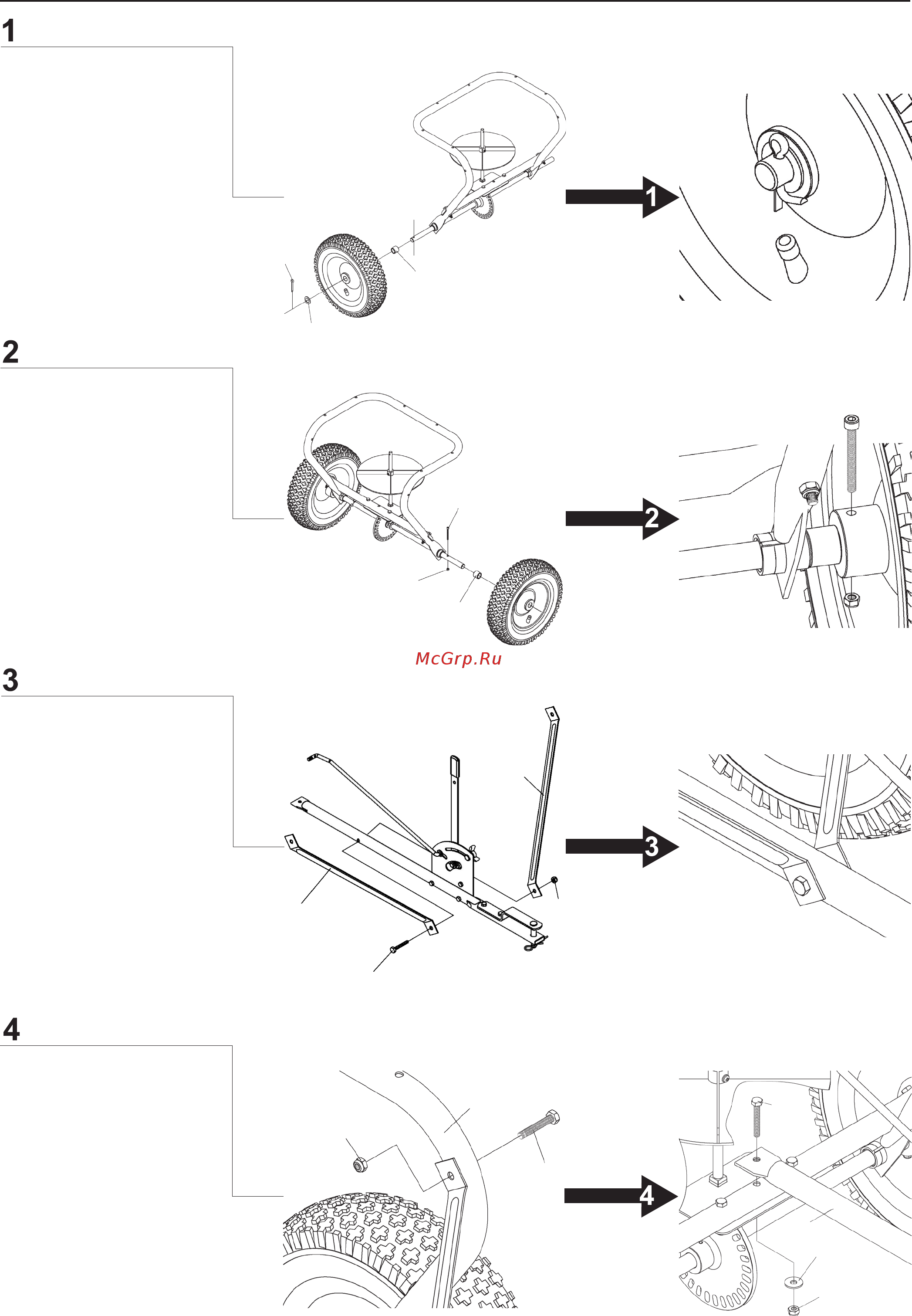

Assembly

Insert axis-bush (K) on

the impeller unit (M) and

lock. Attach the right

wheel (Q) and washer (J),

lock with Cotter Pin(D)

bend to secure.

Insert axis-bush (K) on

the impeller unit (M) and

lock. Then attach the left

wheel (Q). Align the two

holes of wheel and axis;

insert the bolt (C), secure

with nut (E).

Attach the support legs

(O) on the right and left

side of the connection

axis (N) secure with bolt

(A) and nut (F) Ensure

that the support legs (O)

are installed correctly,

hence; the angle of the

legs are align to the

impeller frame (M)

Attach the other end of

the support legs (O) onto

the frame of the impeller

unit (M). Secure with bolt

(A) and nut (F).

Attach the connection

axis (N) onto the impeller

frame (M), secure with

bolt (A) washer (H) and

nut (F).
