radar signal. The blink rate increases as the radar source gets closer. A distinct audio alert is also heard.
Laser Signal Indicator
L
lights
and blinks to indicate the presence of a laser signal. A distinct audio alert is also heard.
Signal Strength Indicator
An amber LED 2 or 3 blinks to indicate the strength of a Signal detected.
City Mode Indicator
C
lights to indicate when you selected City Mode by pressing the CITY button.
INSTALLATION
Mounting Guidelines
For the best performance, select the proper location for the detector
where it has a direct view of the road.
Remember, the radar antenna and laser sensor are located behind the rear panel of the unit.
The antenna and sensors should not be obstructed by metal or metallic surfaces and should be pointed at
the horizon for accurate long-range detection.
Choose a location that does not block the driver's vision.
Mount the detector in a level position.
Do not mount the detector behind of metal surfaces, windshield antenna, wiper blades, ornaments
mirrored sunscreen.
Window tinting reduces the received strength of laser signals, do not mount the detector behind tinted
glass.
Do not mount the detector where the driver or passenger might hit in a sudden stop or accident.
Mounting Type
STAR PRO40 can be installed by two type of mounting methods.

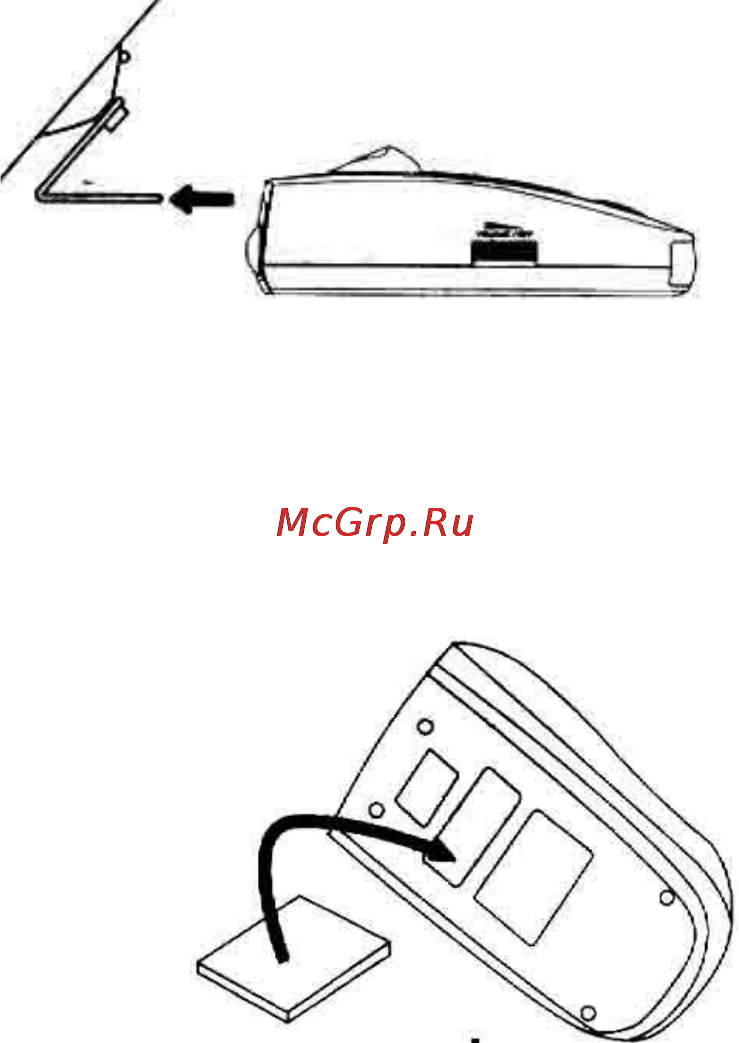

Windshield Mounting
The supplied windshield bracket and suction cups let you quickly mount the detector to your vehicle's
windshield.
Follow these steps to use mounting bracket kit.
1. Install the suction cups onto the bracket by fitting them
into their holes.
2. Attach the bracket to windshield
3. Attach the Detector to bracket.
4. Bend bracket for correct detection angle (if need), do not
use the STAR PRO40 to bend bracket.
5. Plug power cord into detector.
6. Plug power cord into cigarette lighter.
Cautions:
On some newer model cars, a plastic safety coating has been applied to the windshield. The
suction cups may leave permanent marks on the windshield once they are removed. Check vehicle
owner's manual to see if your car has the plastic safety coating.
Hook-and Loop Mounting
The hook-and-loop tape included with your detector might be the best mounting method for some
dashboards.
Follow these instructions to use the hook-and-loop tape.
Use a damp cloth to thoroughly clean both the bottom of the detector
and the dashboard.
Peel off the tape's paper backing and apply the tape to the bottom of
the detector.
Remove the paper backing from the other side of the tape and press the
detector onto the dashboard.
Connecting the Power
The detector is designed to operate on most DC12V negative ground
vehicle electrical systems. The power cord provided with the detector has a cigarette lighter socket plug at
one end and a small connector at the other.
1. Insert the small connector into the jack on the side of the detector.
2. Insert the other end into the cigarette lighter socket of your vehicle.
If the detector does not operate when you turn it on, remove the adapter from the cigarette lighter socket
and carefully check the socket for debris. Also, check the fuse in the adapter and your vehicle's fuse box.
Replacing the Fuse
12
