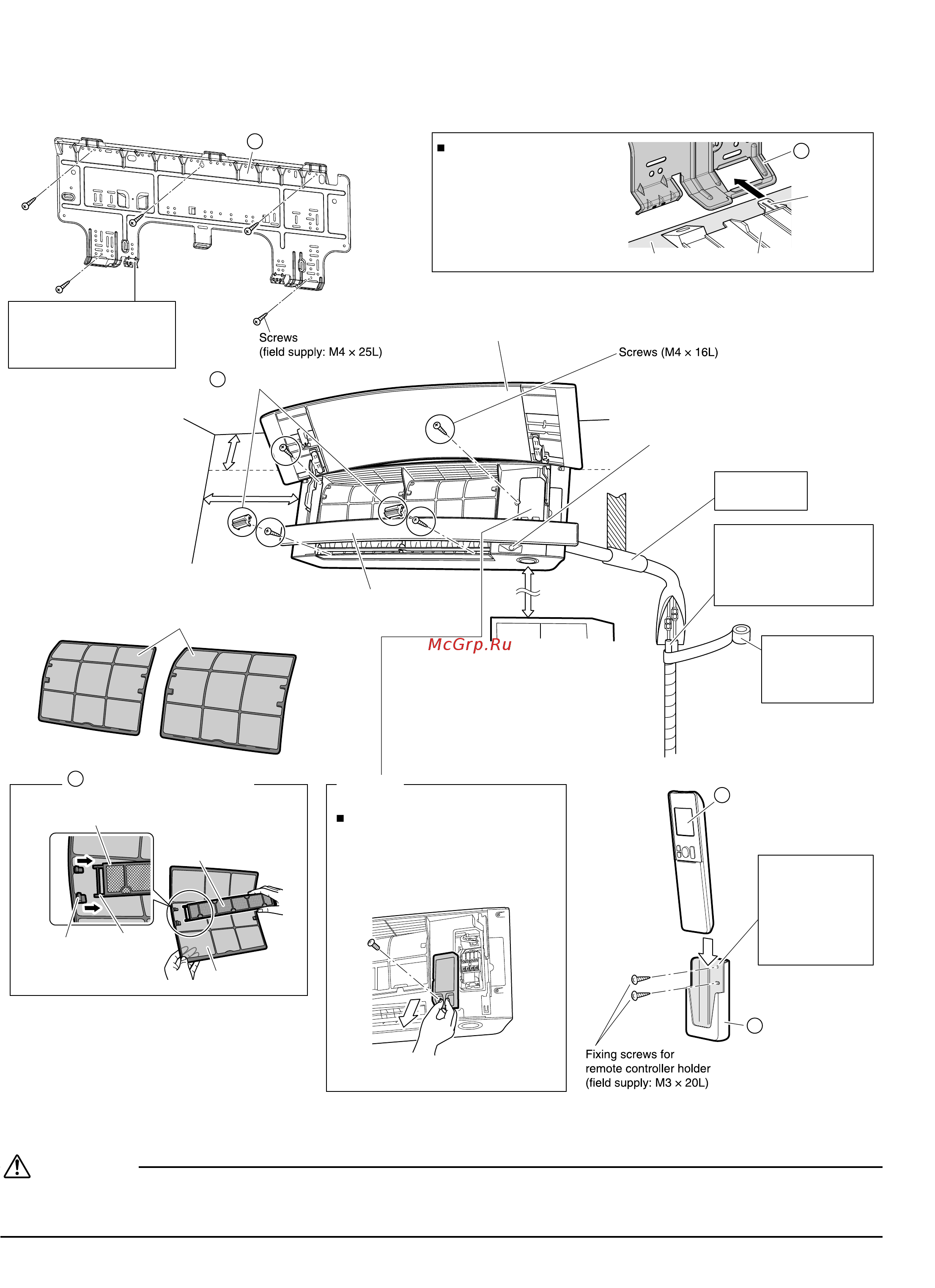

Indoor Unit Installation Drawings
INTELLIGENT EYE sensor
CAUTION
• Do not hit or violently push the INTELLIGENT EYE sensor. This can lead to damage and malfunction.
• Do not place large objects near the sensor. Also keep heating units or humidifiers outside the sensor’s detection area.
How to attach the indoor unit
Hook the claws of the bottom
frame to the mounting plate.
If the claws are difficult to hook,
remove the front grille.
Front grille
Clip
Bottom frame
Before screwing the
remote controller
holder to the wall,
make sure that
control signals are
properly received
by indoor unit.
Service lid
The service lid is removable.
Opening method
1) Remove the service lid screws.
2) Pull out the service lid diagonally
down in the direction of the arrow.
3) Pull down.
Wrap the insulation
pipe with the
finishing tape from
bottom to top.
Cut thermal insulation pipe
to an appropriate length and
wrap it with tape, making
sure that no gap is left in the
insulation pipe’s cut line.
Caulk pipe hole
gap with putty.
30mm or more
from ceiling
Upper front panel
50mm or more
from walls
(on both sides)
Filter frame
Tab
Claw
Titanium apatite
photocatalytic
air-purifying filter
Air filter
Air filters
B Titanium apatite photocatalytic
air-purifying filter (2)
C Wireless remote controller
D Remote controller
holder
* When dismounting the front grille, refer
to “Removing and installing the front grille”
on page 4.
A Mounting
plate
500mm
or more
Make sure that there are no obstacles within
500mm under the signal receiver.
Such obstacles, if any, may have an adverse
influence on the reception performance of
the receiver and the reception distance may
be shortened.
Lower front panel
INTELLIGENT EYE sensor
Screw cover
G
The mounting plate should be
installed on a wall which can
support the weight of the
indoor unit.
A Mounting plate
