Страница 44 /
75
![Pioneer DEH-2210UB [44/75] Tuner amp unit guide page](/views2/1252387/page44/bg2c.png)
DEH-2200UB/XSEW5
44
1234
1234
C
D
F
A
B
E

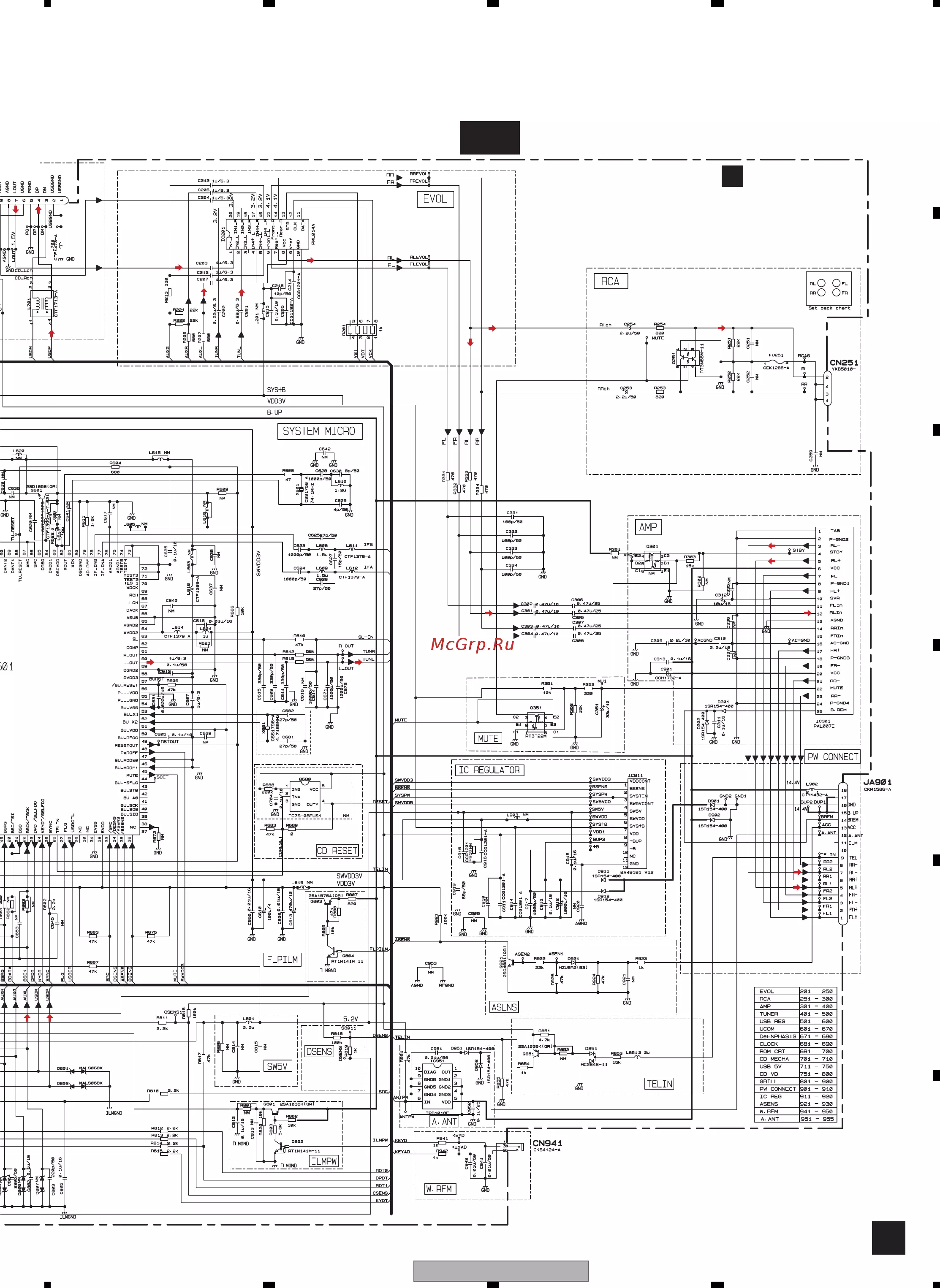

10. SCHEMATIC DIAGRAM
10.1 TUNER AMP UNIT(GUIDE PAGE)
A
A-a
A-a A-b
A-a
A-b
A-b
A-a
Large size
SCH diagram
Guide page
Detailed page
Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or
"ELECTRICAL PARTS LIST".
PN5034B
EW5:CWE2106-
UR:CWE2123-
EW5:
UR:
The > mark found on some component parts indicates
the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of
identical designation.
Symbol indicates a resistor.
No differentiation is made between chip resistors and
discrete resistors.
NOTE :
Symbol indicates a capacitor.
No differentiation is made between chip capacitors and
discrete capacitors.
NM : No Mount
C
CN701
B
CN1821
FM/AM TUNER UNIT
FM(10%):-29.5 dBs
AM(15%):-26.0 dBs
CD/USB/SD(-20 dB): -19.4 dBs
AUX1(-20 dB):-17.8 dBs
