Mongoose EMS 1.7R [2/8] Схемы подключения к центральному замку

Installation Manual

EMS 1.7R

System Programming

Remote Code Learning

The EMS 1.7R has one twoway Transceiver and one oneway transmitter in the standard

kit, however the system can teach up to four transmitters/transceivers. To increase a number of

remote controls to control the alarm system fulfill the below procedure:

The basic procedure is the same regardless of single digit pin code or twodigit pin code. If the

system has a single digit PIN code, follow steps 12 but skip steps 34. If the system has a two digit

PIN code follow the entire procedure.

1. When the alarm system is disarmed turn the ignition on.

2. Press the override switch as many times as the first digit of the PIN code.

3. Cycle the ignition off/on.

4. Press the override switch as many times as the second digit of the PIN code.

5. Switch the ignition off. If the PIN code is correct one short and one long beep will confirm

entering the Code Learning.

6. Switch the ignition on.

7. Press button 1 of each remote control you want to program to the system. One siren beep will

confirm the transmitter code is learnt. When you are programming a twoway transmitter

please wait a few seconds after the beep until the indicator icon on the LCD screen is

flashing two times to confirm the main unit code has been programmed to the transceiver,

otherwise the pager function will not work.

8. To exit the Code Learning switch the ignition off and press the override switch or wait for 15

seconds, a double siren beep will confirm that Code Learning has exited. NOTE: If you

want to move to the Function Programming switch the ignition back on without pressing

the override switch and before the double siren beep.

Function programming.

1. Follow through with transmitter programming and turn the ignition back on (do not press

the override switch in the above item 8!).

2. Press the override switch 4 times

3. Cycle the ignition off/on.

4. Press the override switch 6 times.

5. Press buttons 1 and 2 together. An audible signal will confirm the system has entered the

Installer’s Function Programming.

6. Turn the ignition off/on.

7. Press the override switch as many times as the number of the software switches group (first

digit).

8. Turn the ignition off/on.

9. Press the override switch as many times as the number of switch within the group (second

digit).

Автомобильная охранная система “MONGOOSE” Модель EMS 1.7R

РУССКИЙ

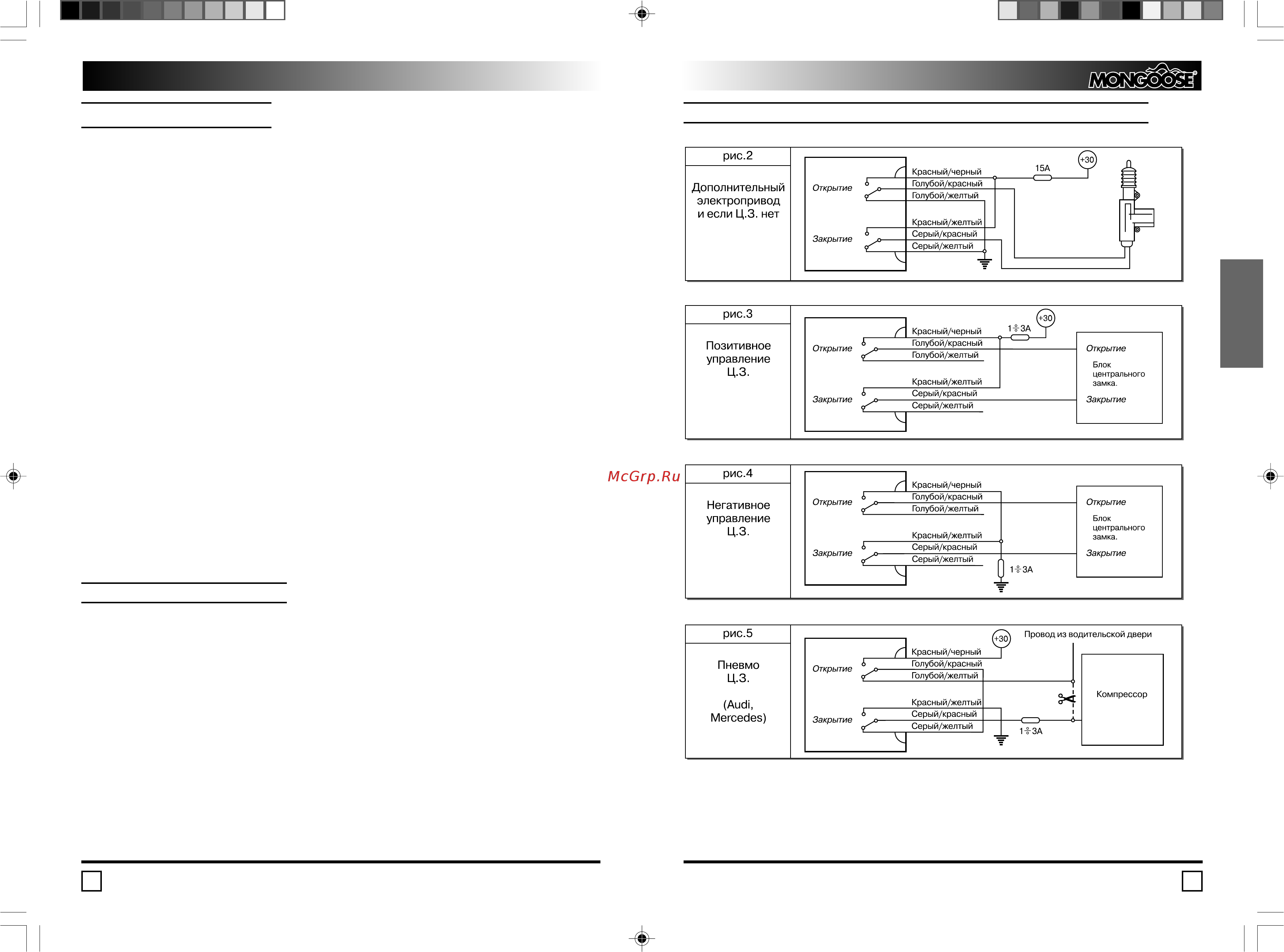

СХЕМЫ ПОДКЛЮЧЕНИЯ К ЦЕНТРАЛЬНОМУ ЗАМКУ
