AB350M
A320M
9
English

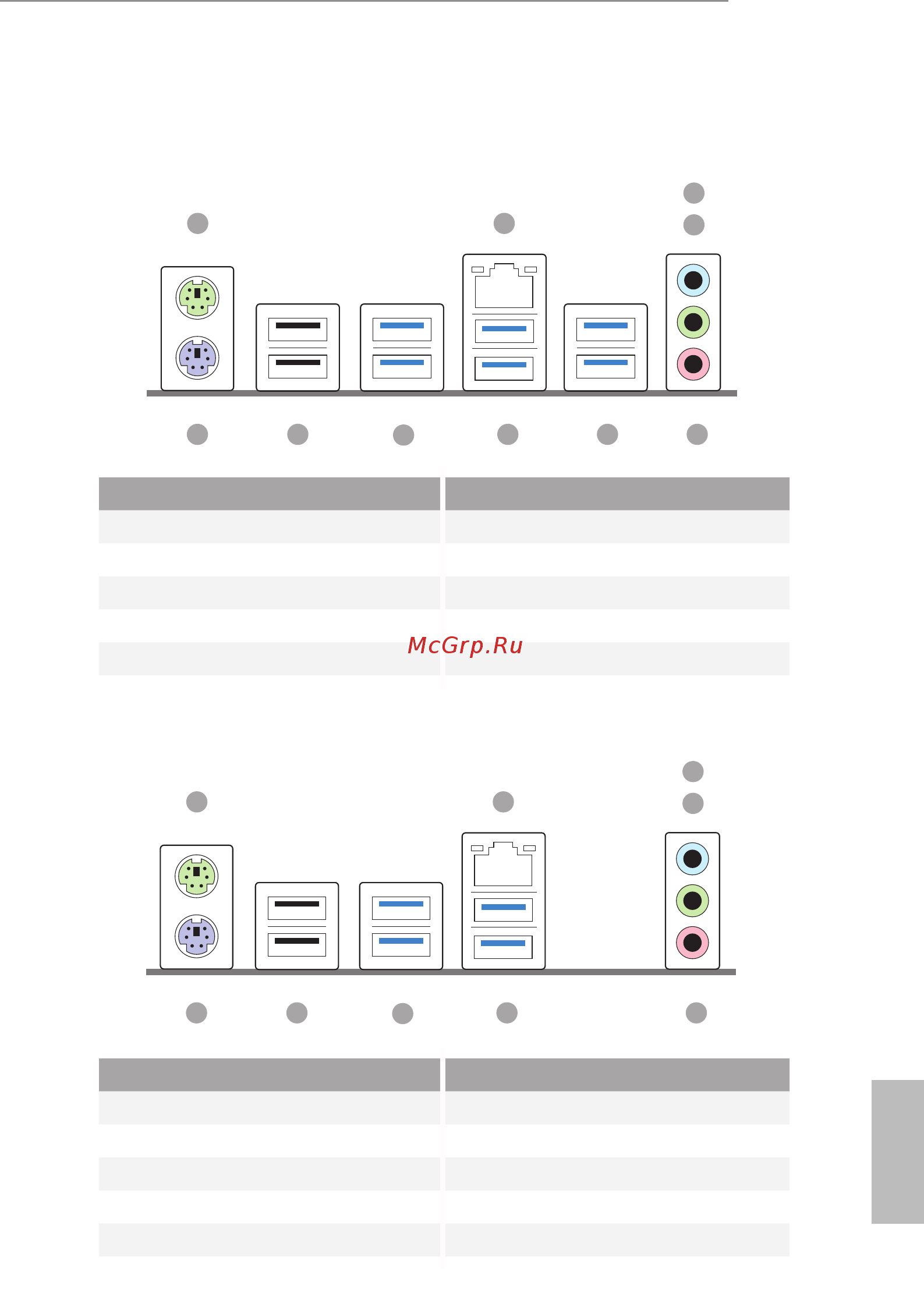

1.4 I/O Panel
AB350M:
No. Description No. Description
1 PS/2 Mouse Port 6 USB 3.0 Ports (USB3_56)
2 LAN RJ-45 Port* 7 USB 3.0 Ports (USB3_34)
3 Line In (Light Blue)** 8 USB 3.0 Ports (USB3_12)
4 Front Speaker (Lime)** 9 USB 2.0 Ports (USB_12)
5 Microphone (Pink)** 10 PS/2 Keyboard Port
A320M:
No. Description No. Description
1 PS/2 Mouse Port 6 USB 3.0 Ports (USB3_34)
2 LAN RJ-45 Port* 7 USB 3.0 Ports (USB3_12)
3 Line In (Light Blue)** 8 USB 2.0 Ports (USB_12)
4 Front Speaker (Lime)** 9 PS/2 Keyboard Port
5 Microphone (Pink)**
1
6710 9
2
5
4
3
8
1
69 8
2
5
4
3
7
