AB350M
A320M
31
English

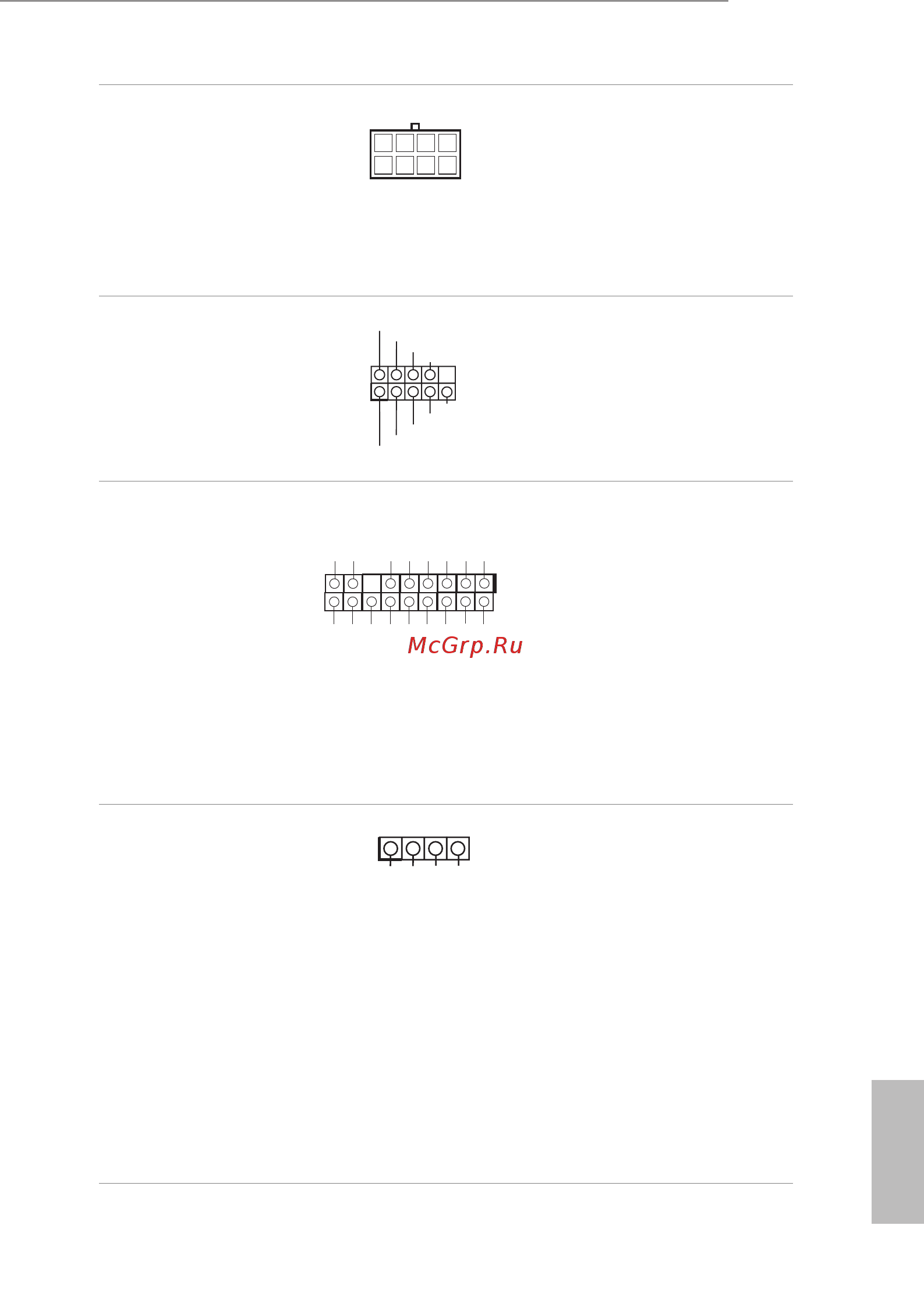

ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.5 or 7, No. 1)
is motherboard
provides a 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
Serial Port Header
(9-pin COM1)
(see p.5 or 7, No. 15)
is COM1 header
supports a serial port
module.
TPM Header
(17-pin TPMS1)
(see p.5 or 7, No. 16)
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords,
and data. A TPM system
also helps enhance
network security, protects
digital identities, and
ensures platform integrity.
RGB LED Header
(4-pin RGB_LED1)
(see p.5 or 7, No. 17)
RGB LED header is used to con-
nect RGB LED extension cable
which allows users to choose
from various LED lighting ef-
fects.
Caution: Never install the RGB
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
*Please refer to page 43 for for
further instructions on these two
headers.
5
1
8
4
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
1
GN D
SMB_DATA_MAIN
LAD2
LAD1
GN D
S_PWRDWN #
SERIRQ #
GN
D
P CIC L K
P CIR ST #
LAD3
+3V
LAD0
+3VS B
GN D
FRAM E
SMB_CLK_MAIN
12V G R B
1
