English
9
Fatal1ty B250 Gaming K4 Series

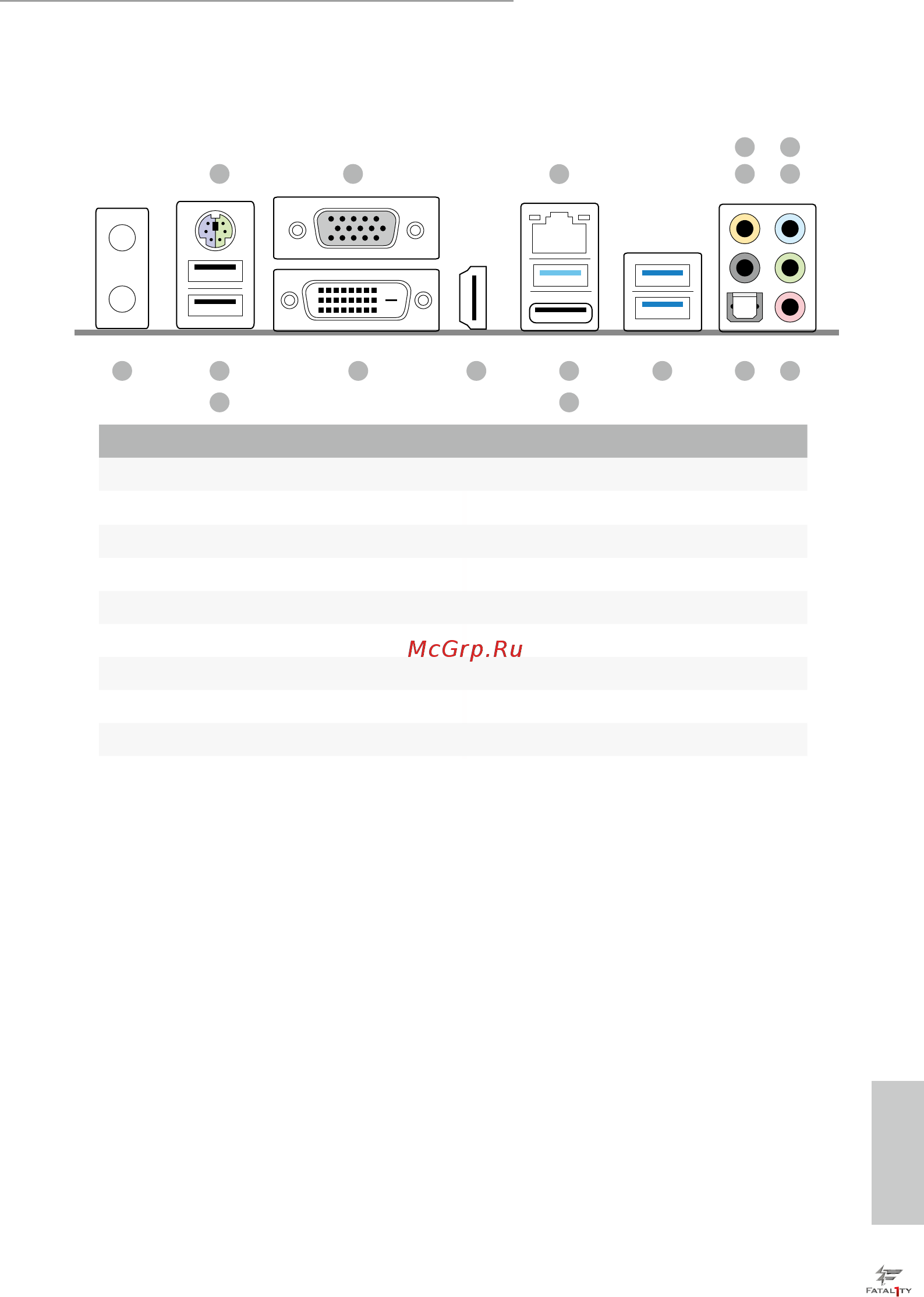

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse/Keyboard Port (PS2_KB1) 10 USB 3.0 Ports (USB3_1_2)
2 D-Sub Port (VGA1) 11 USB 3.0 Type-A Port (USB3_TA_1)
3 LAN RJ-45 Port * 12 USB 3.0 Type-C Port (USB3_TC_1)
4 Central / Bass (Orange) 13 HDMI Port (HDMI1)
5 Rear Speaker (Black) 14 DVI-D Port (DVI1)
6 Line In (Light Blue) 15 Fatal1ty Mouse Port (USB_1)
7 Front Speaker (Lime)** 16 USB 2.0 Port (USB_2)
8 Microphone (Pink) 17 Antenna Ports
9 Optical SPDIF Out Port
