9
English
H270M Pro4

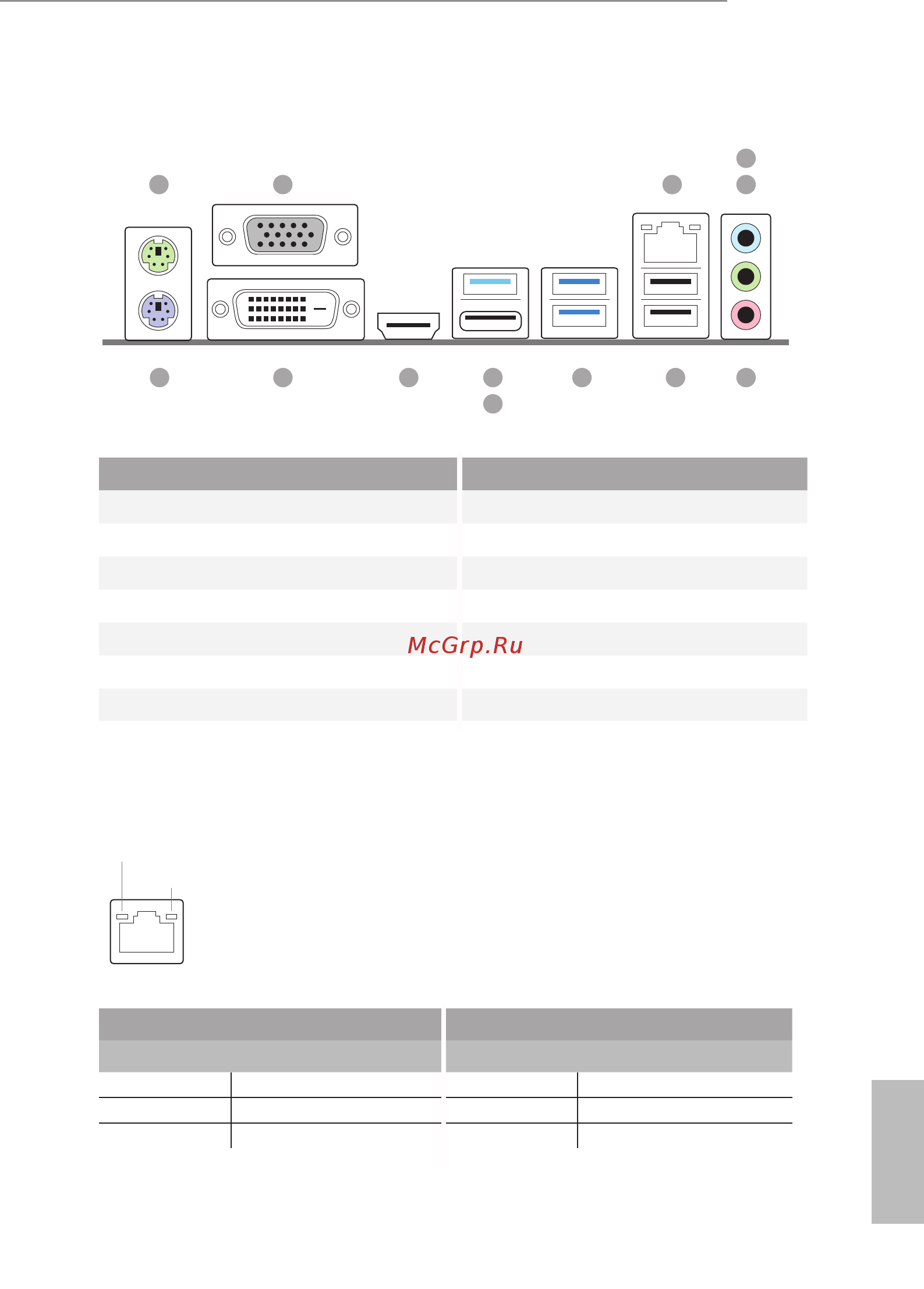

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 8 USB 3.0 Ports (USB3_3_4)
2 D-Sub Port 9 USB 3.0 Type-A Port (USB3_TA_1)
3 LAN RJ-45 Port* 10 USB 3.0 Type-C Port (USB3_TC_1)
4 Line In (Light Blue)** 11 HDMI Port
5 Front Speaker (Lime)** 12 DVI-D Port
6 Microphone (Pink)** 13 PS/2 Keyboard Port
7 USB 2.0 Ports (USB12)
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
13 6711
12
5
4
1 3
8
2
10
9
