ASRock H270M Pro4 [37/80] English
![ASRock H270M Pro4 [37/80] English](/views2/1253670/page37/bg25.png)
32
English

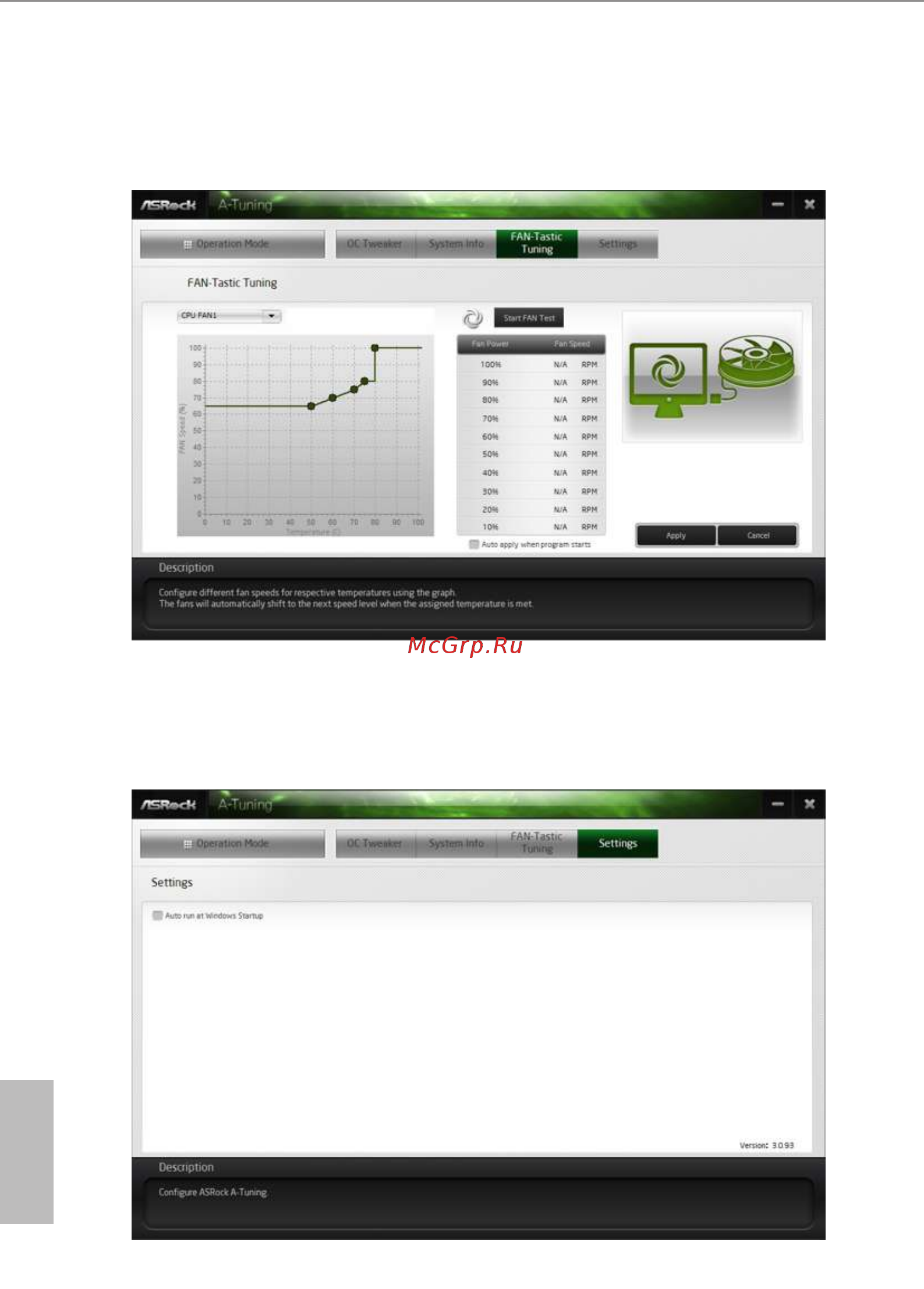

FAN-Tastic Tuning
Congure up to ve dierent fan speeds using the graph. e fans will automatically shi
to the next speed level when the assigned temperature is met.
Settings
Congure ASRock A-Tuning. Click to select "Auto run at Windows Startup" if you
want A-Tuning to be launched when you start up the Windows operating system.
