9
English
Z270 Pro4

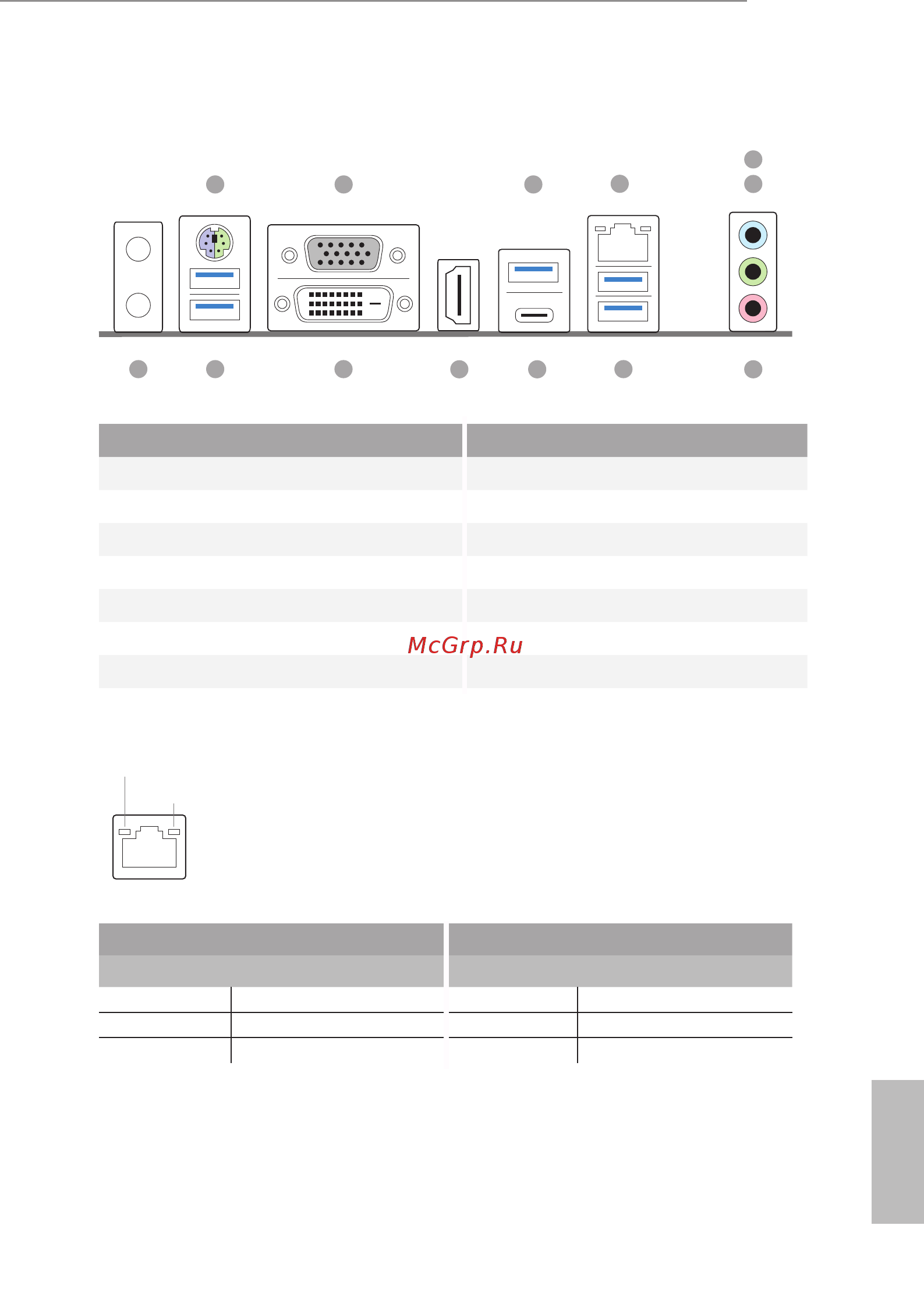

1.4 I/O Panel
1
12
8
911
4
3
7
6
5
2
10
13
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 8 USB 3.0 Ports (USB_1_2)
2 D-Sub Port 9 USB 3.0 Type-C Port (USB3_TC_1)
3 USB 3.0 Port (USB3_TA_1) 10 HDMI Port
4 LAN RJ-45 Port* 11 DVI-D Port
5 Line In (Light Blue)** 12 USB 3.0 Ports (USB3_1_2)
6 Front Speaker (Lime)** 13 Antenna Ports
7 Microphone (Pink)**
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
