Руководство пользователя Страница: 105

Gigabyte GA-Z270X-Gaming 8 [105/144] Disk mode switch

Gigabyte GA-Z270X-Gaming 8 (rev. 1.0) [105/144] Disk mode switch

- 105 -

Unique Features

5-2-7 Easy RAID

TheGIGABYTEEasyRAIDutilityincludesthefollowing'EZ'setupsapplicationsthatwilloffergreatlysimplied

installandcongurationprocedures:DiskModeSwitch,EZSmartResponse,andXHD.

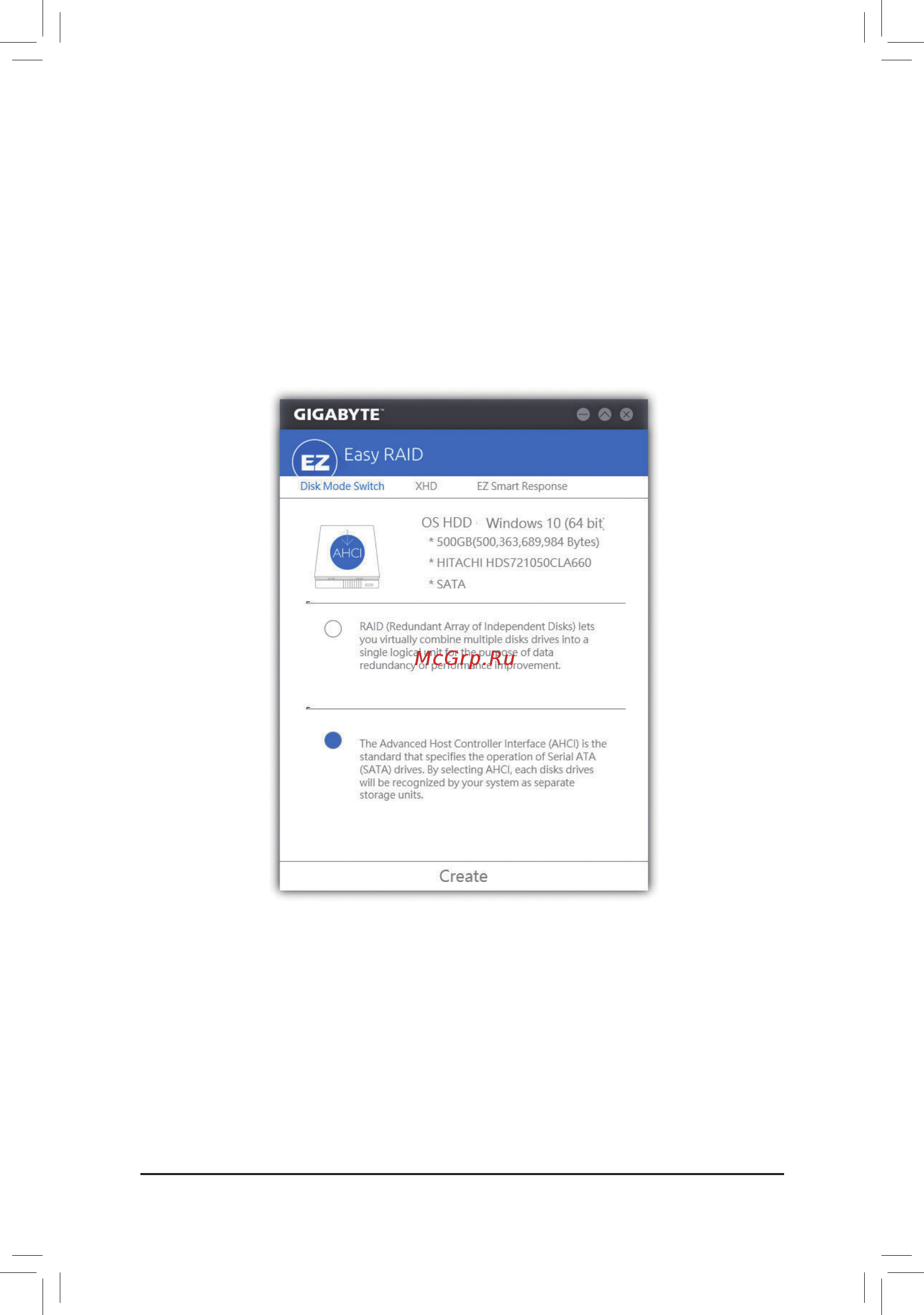

Disk Mode Switch

Disk Mode Switch allows you to change the SATA controller disk mode from AHCI to RAID mode even after the

hard drive has been installed with an operating system. After switching the operating mode, please restart your

computer and make sure the Intel

Rapid Storage Technology utility can work properly.
