Asus Strix Raid PRO [9/27] Control box

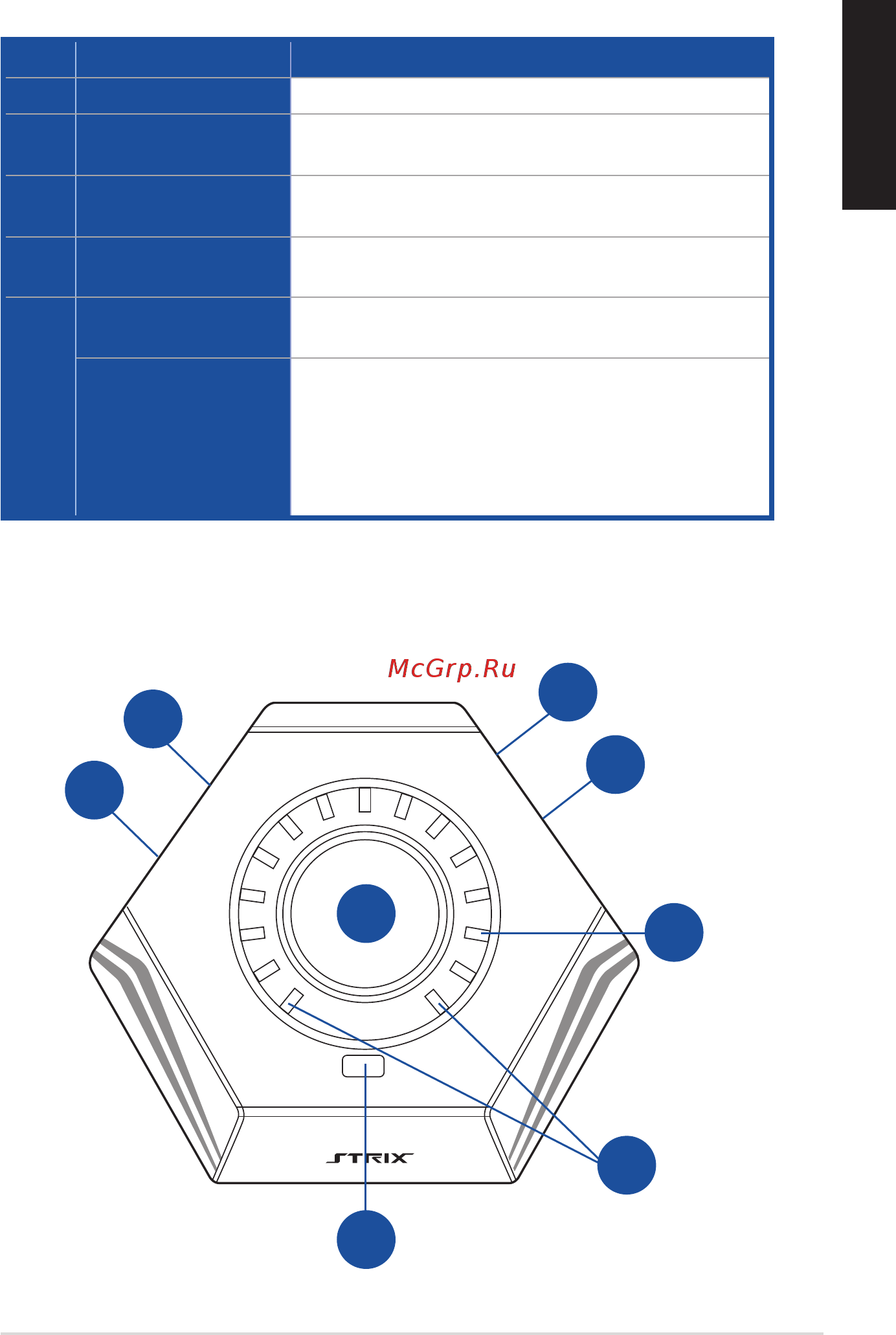

![Asus Strix Raid PRO [9/27] Control box](/views2/1256087/page9/bg9.png)
9
ASUS STRIX Sound Card Series User Manual
English
No. Items Description
3. Box link Connect Strix control box directly to this port.
4. Front Out port
For 2-channel speaker systems, connects to the input
on the powered speakers.
5. Rear Out port
Connects to the rear surround input on 4.1-channel
powered analog speakers.
6. Center Out port
Connects to the center/subwoofer input on
4.1/5.1-channel powered analog speakers.
7.
Side Out port
Connects to the side surround input on 7.1-channel
powered analog speakers.
S/PDIF Out port
Optical digital output jack. Connects to external
digital decoder or digital speaker systems, Home
Theater systems, AV receivers for outputting digital
audio including PCM, Dolby Digital, DTS, WMA-
Pro, etc. Connects to the surround channel input on
4.1/5.1/7.1-channel powered analog speakers.
Control Box
SpeakerHeadphone
8
9
10
11
15
13
12
14
