Pic. 1

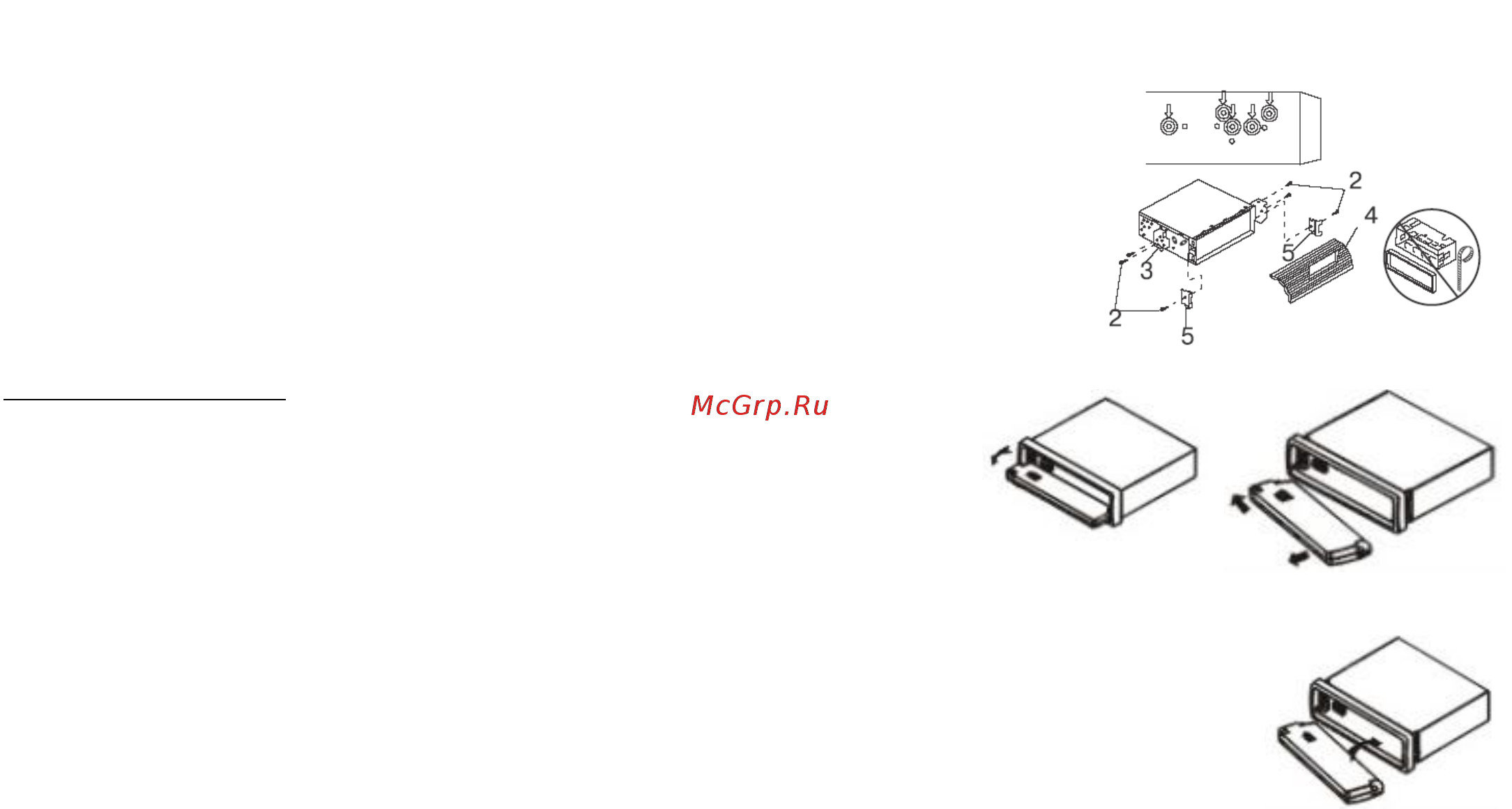

2. DIN REAR-MOUNT (Method B)

For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets.

1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes

in the unit body, and screw in two screws (2) in each side.

2. Screw.

3. Factory radio mounting brackets.

4. Vehicle dashboard.

5. Lock (remove this part).

Note: The outer trim frame and mounting sleeve are not used for method of installation.

Detachable control panel

Detaching the control panel

1. Press OPEN button on the front panel. The panel will go down (pic. 1).

2. Push the panel to the left and then pull it towards you (pic. 2).

Attaching the control panel

 Insert the left side of the control panel into the main unit (pic. 3).

Note: the control panel must be attached into the T-Joint.

 Press the right side of the control panel until a “click” sound is heard.

 Close the panel.

Caution:

Do not insert the control panel from the right side. It can damage the control panel. The control panel can easily

be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it

to strong shocks. The rear connector that connects the main unit and the control panel is an extremely important

part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note: If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to

clean the socket on the back of the control panel.

Pic. 3

Pic. 2
