2. Description of U46 XL

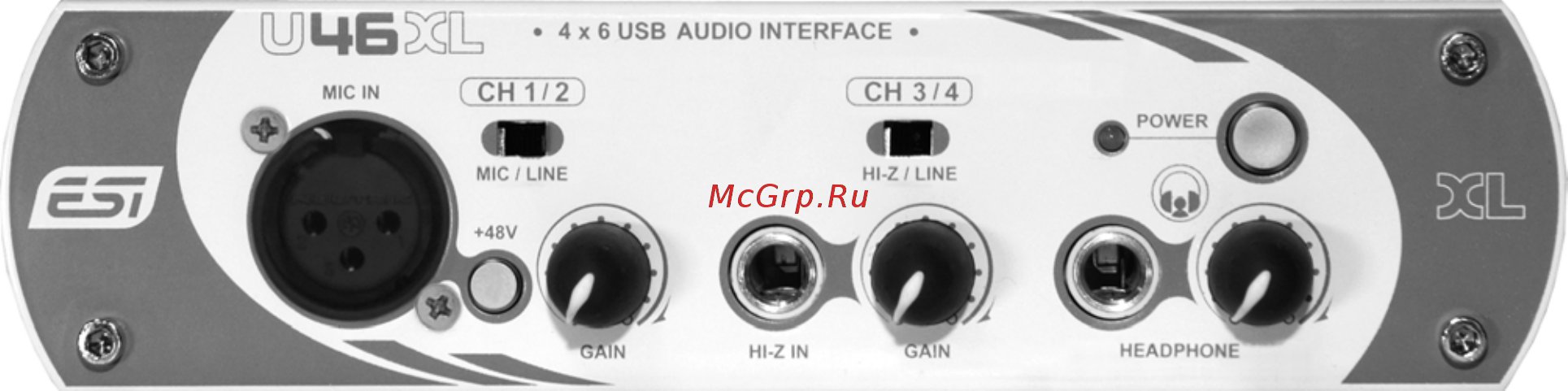

2.1 Front Panel

Channel 1/2 input connector (CH 1/2)

- Input source (MIC/LINE) selector: This is where you select input sources of channel 1/2.

- MIC IN connector: Connect your microphone to this XLR connector.

- +48V phantom power switch: Supply +48V DC phantom power to input channels 1/2 by

pressing the button.

- GAIN control for microphone input: Control input level of microphone.

Channel 3/4 input connector (CH 3/4)

- Input source (HI-Z/LINE) selector: This is where you select input sources of channel 3/4.

- HI-Z IN connector: Connect an electric guitar or bass guitar to this unbalanced 1/4” connector.

Only unbalanced 1/4” phone jack connection is possible via this input.

- GAIN control for Hi-Z input: Control the input level of a connected electric guitar via this

control knob.

Headphone output with volume control (HEADPHONE): Monitor all input sources and output

sources through the headphone output. The output level can be adjusted with the control knob.

POWER switch: Allows you to turn on / off the unit.
