Esi U46 XL [10/18] U46 xl control panel

U46 XL ESI

3.3 Mac OS X

Mac OS X already provides support for class compliant USB audio devices such as U46 XL. This

means that no software or driver needs to be installed to use U46 XL under Mac OS X. Simply

connect the unit with the supplied USB cable to your Mac and you can start using it.

Controlling the basic options of U46 XL under Mac OS X is mainly done via the Audio MIDI Setup

utility from Mac OS X described in section 5.3 of this manual.

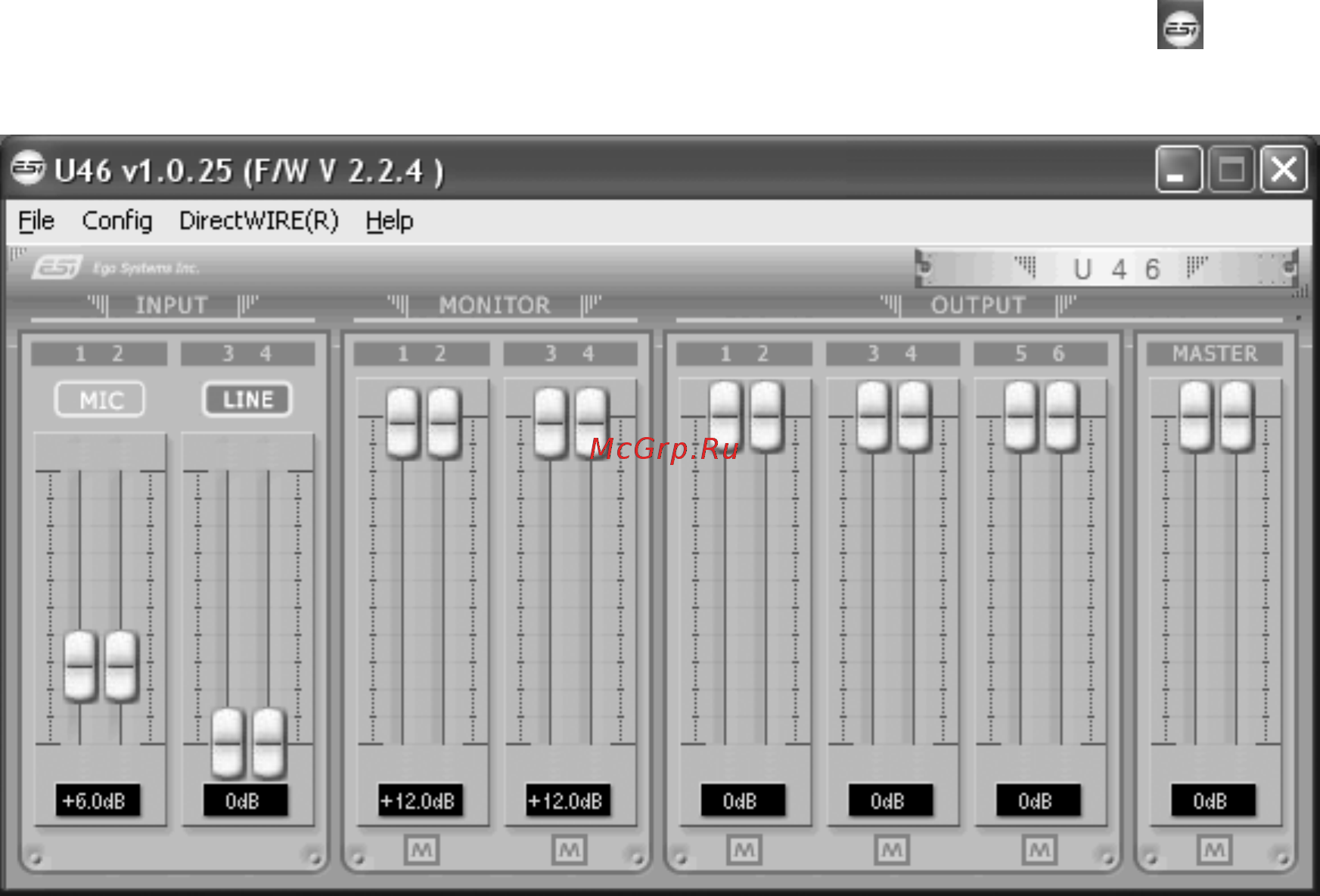

4. U46 XL Control Panel

After successfully installing the U46 XL hardware and driver, you can see the icon on the

system tray of the task bar. Clicking on this icon will launch the U46 XL Control Panel.

4.1 Pull Down Menu

The U46 XL Control Panel includes a pull down menu section that contains the following main

configuration options.

Config – Factory Default

Returns all U46 XL Control Panel configuration settings to the factory default.

Config - Always On Top

Enables to display the U46 XL Control Panel always over other windows. If this is not selected, the

active windows of other applications will be shown over the U46 XL Control Panel.
