U46 XL ESI

File - Close Window

This will close the U46 XL Control Panel window but it will not shut down the control panel. You

can always relaunch the control panel by clicking ‘ESI’ icon on the system tray.

Help – About

Shows information about the driver revision.

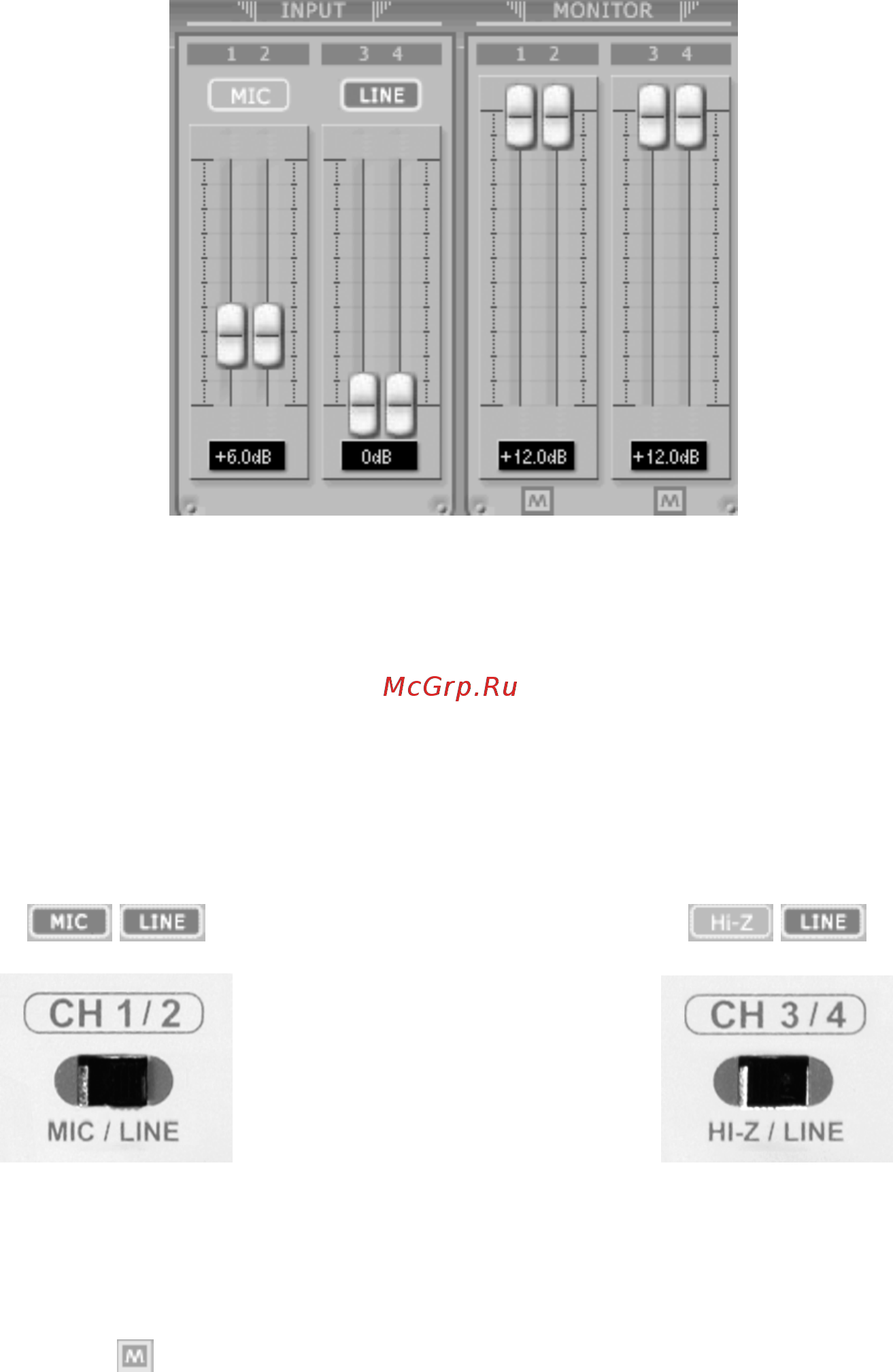

4.2 Input section

Input

This is where you can increase the input level of the analog input 1/2. The input level 3/4 is fixed at

0dB. The number on the bottom indicates the relative level in dB.

Input source display

This is where you can check current input source selected by the input source selector on the front

panel of U46 XL hardware.

Monitor

This is where you can adjust input monitoring level of U46 XL. Set the level using the mouse,

mouse wheel, or cursor keys. The number on the bottom indicates the relative level in dB. You can

also select mute button ( ) to mute each monitoring input source.
