U46 XL ESI

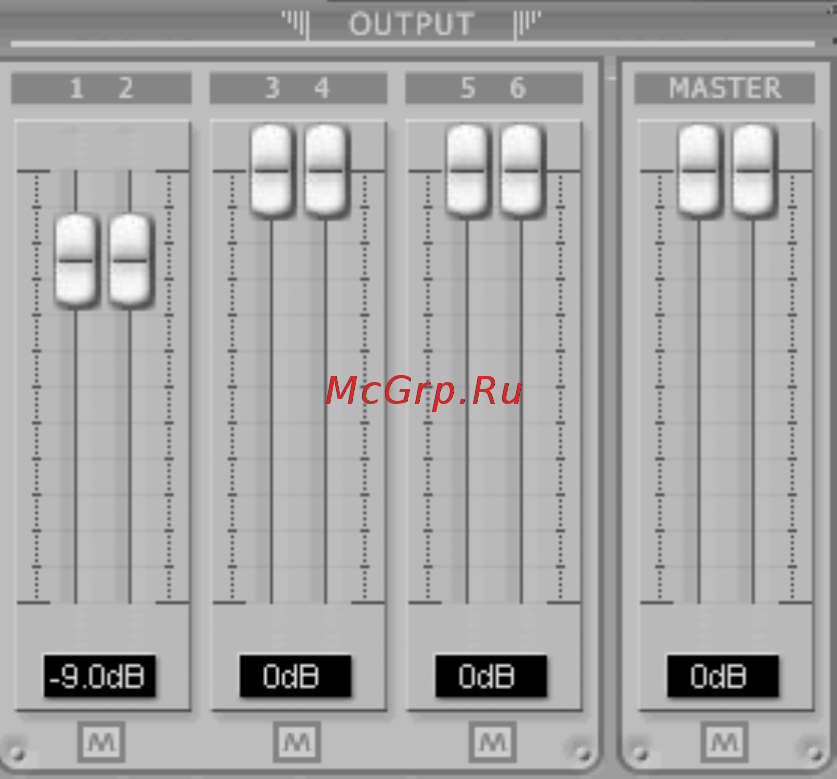

4.3 Output section

Output 1/2, 3/4, 5/6

You can individually change levels for all output channels by clicking and dragging the fader bars.

The number on the bottom shows the relative amount in dB. You can also select mute button to

mute each output channels.

Master Output

You can adjust all input / output monitoring levels by clicking and dragging the Master fader.

Again, the number on the bottom shows you the relative monitoring level in dB. You can also select

mute button to mute each output channels.

4.4 DirectWIRE

What is DirectWIRE?

DirectWIRE is a driver technology, developed by ESI, which can be used for routing audio streams

internally within applications using EWDM Audio MIDI Drivers exclusively developed by ESI.

With the DirectWIRE router, an application can record from other application’s audio outputs

without external wiring or any loss of data when they are running at the same time.

DirectWIRE also allows you to easily rip any audio stream in real time by transferring data thru

DirectWIRE from MP3s, live On-line Broadcast and On-demand content, and more.

DirectWIRE Panel

Click on DirectWIRE on the U46 XL control panel. The DirectWIRE panel window as shown

below will appear. DirectWIRE digital virtual wiring technology, developed by ESI, routes audio

streams internally within applications using standard audio drivers such as WDM, ASIO and MME,

even when they are running at the same time.
