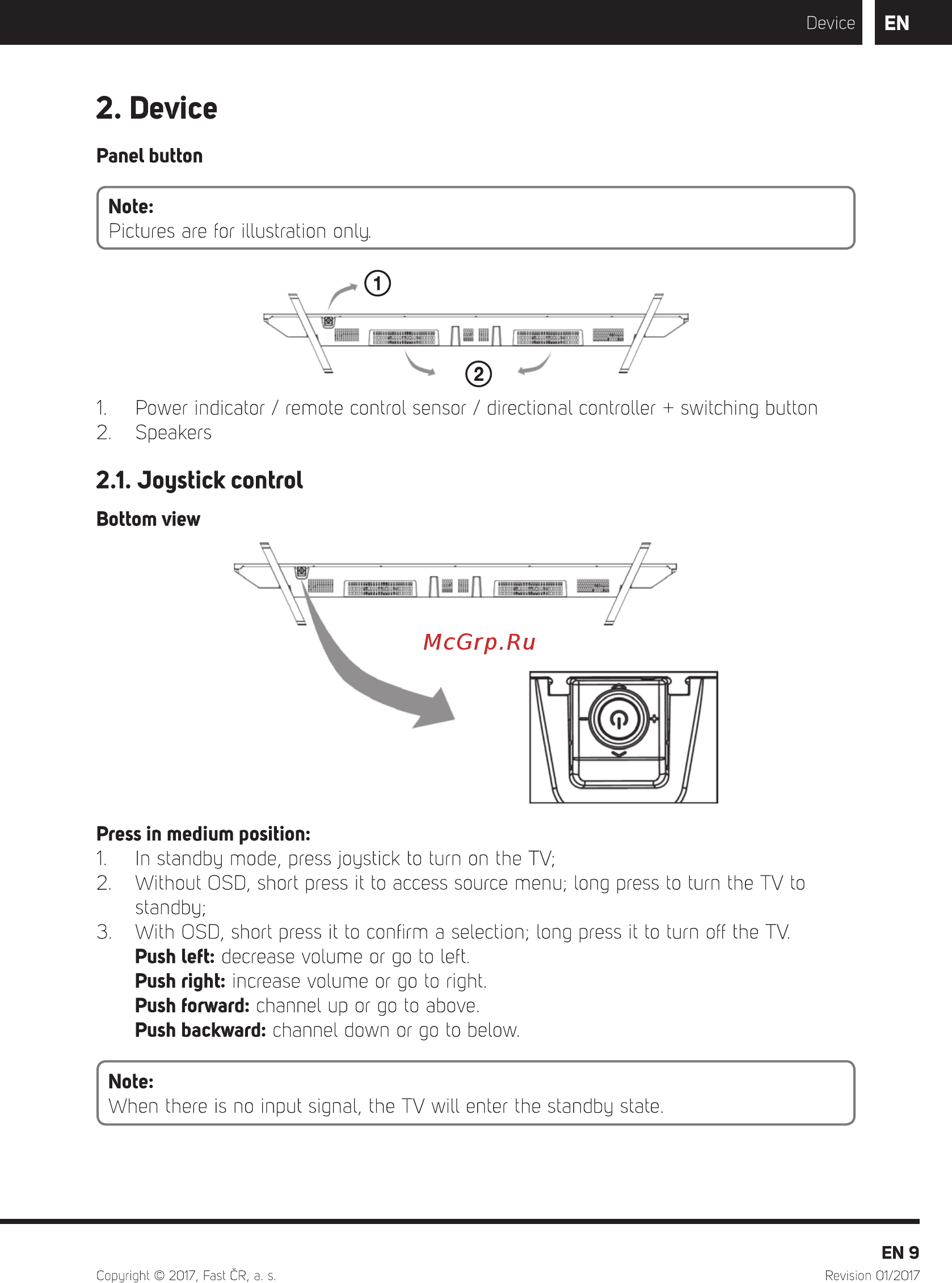

Device B EN 2 Device Panel button Note Pictures are for illustration only 1 Power indicator I remote control sensor directional controller switching button 2 Speakers 2 1 Joystick control Bottom view Press in medium position 1 In standby mode press joystick to turn on the TV 2 Without OSD short press it to access source menu long press to turn the TV to standby 3 With OSD short press it to confirm a selection long press it to turn off the TV Push left decrease volume or go to left Push right increase volume or go to right Push forward channel up or go to above Push backward channel down or go to below Note When there is no input signal the TV will enter the standby state EN 9 Copyright 2017 Fast CR a s Revis on 01 2017
