About your monitor | 11

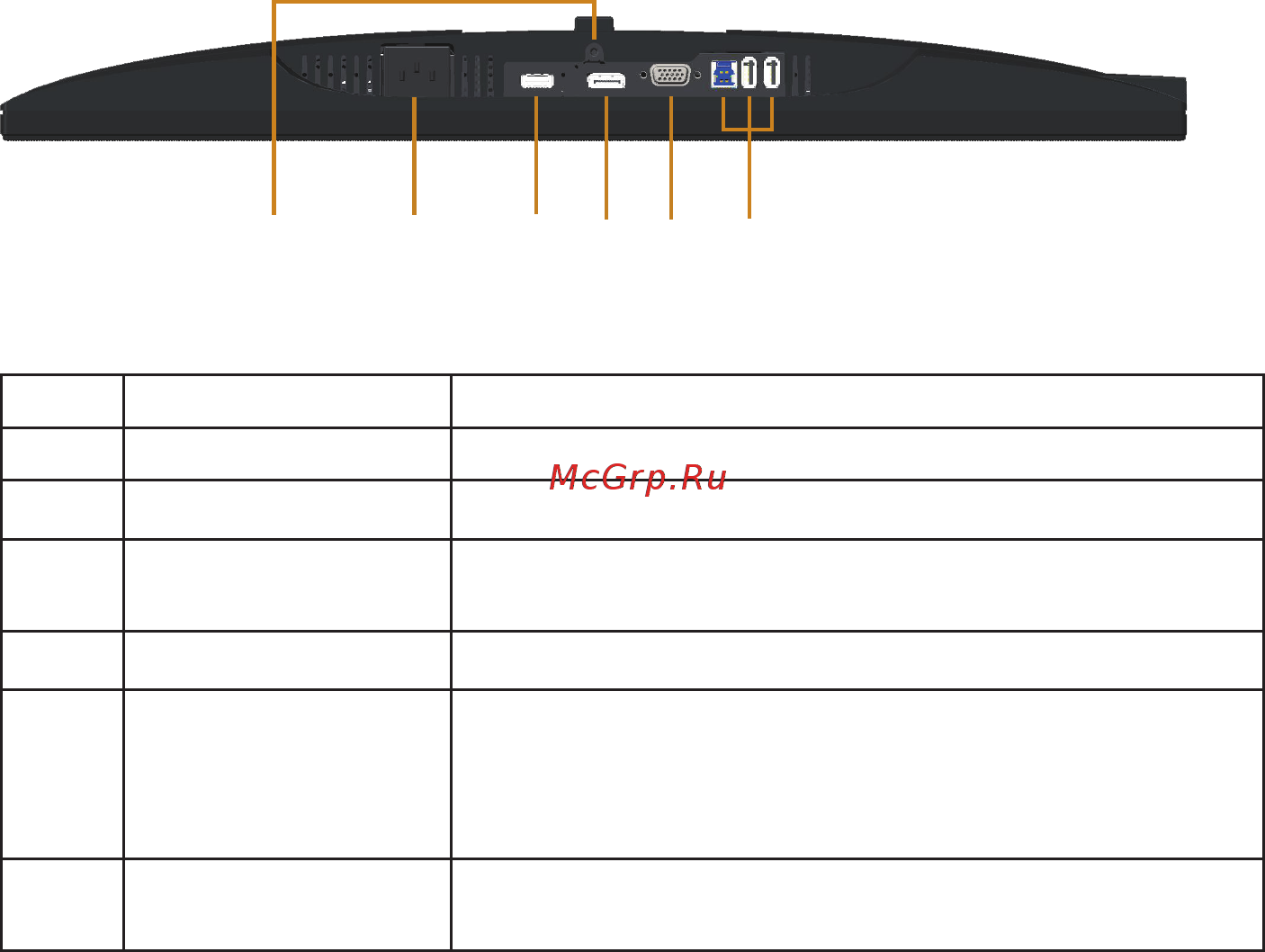

Bottom View
1
2
3
4 5
6
Bottom view without monitor stand
Label Description Use
1 Power port Connect the power cable.
2 HDMI port Connect your computer with HDMI cable(optional).
3 DP port Connect your computer to the monitor using a DP
cable.
4 VGA port Connect your computer with VGA cable.
5 USB connector (x2
downstream, x1
upstream)
Connect the USB cable that came with your monitor
to the computer. Once the cable is connected, you
can use the USB connectors on the rear side and
bottom side of the monitor.
6 Stand lock feature To lock the stand to the monitor using a M3 x 6mm
screw (screw not included).
