Diono Cambria Black/Gray [11/16] Proper positioning on vehicle seat

DISENGAGING LATCH INSTALLATION

Follow above instructions in reverse:

1) Depress the cam lock lever while pulling child seat away from the vehicle seat back until

the LATCH straps are extended all the way.

2) Disconnect LATCH connectors from vehicle anchors.

3) Pull LATCH adjuster straps to recess the LATCH connectors into the back of the booster

seat bottom for safe storage.

Proper Positioning on Vehicle Seat

Place booster seat on vehicle seat so it is resting rmly on vehicle seat

bottom and touching the vehicle seat back.

IMPORTANT: When using the booster seat as a high-back booster,

try to position backrest in full contact with vehicle seat back. It may

also be necessary to adjust the recline angle of the booster seat to

match that of the vehicle seat.

IMPORTANT: When using booster seat in center seating position,

make sure it is stable and does not rock from side to side.

IMPORTANT: Do not use LATCH if installation interferes with vehicle seat belt.

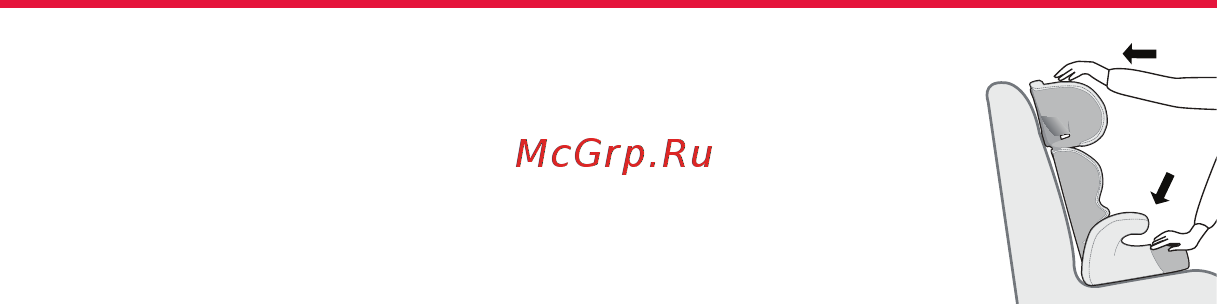

ADJUSTING THE RECLINE ANGLE

This booster seat features a recline angle that can adjust to match that of the vehicle seat:

1) Push booster seat backrest backwards until you hear a click. Backrest will now pivot

freely and does not need to click into another position.

2) Push seat bottom and backrest of booster seat down and back into vehicle seat until

there is secure positioning and full contact with the booster seat and vehicle seat bot-

tom and vehicle seat back.
