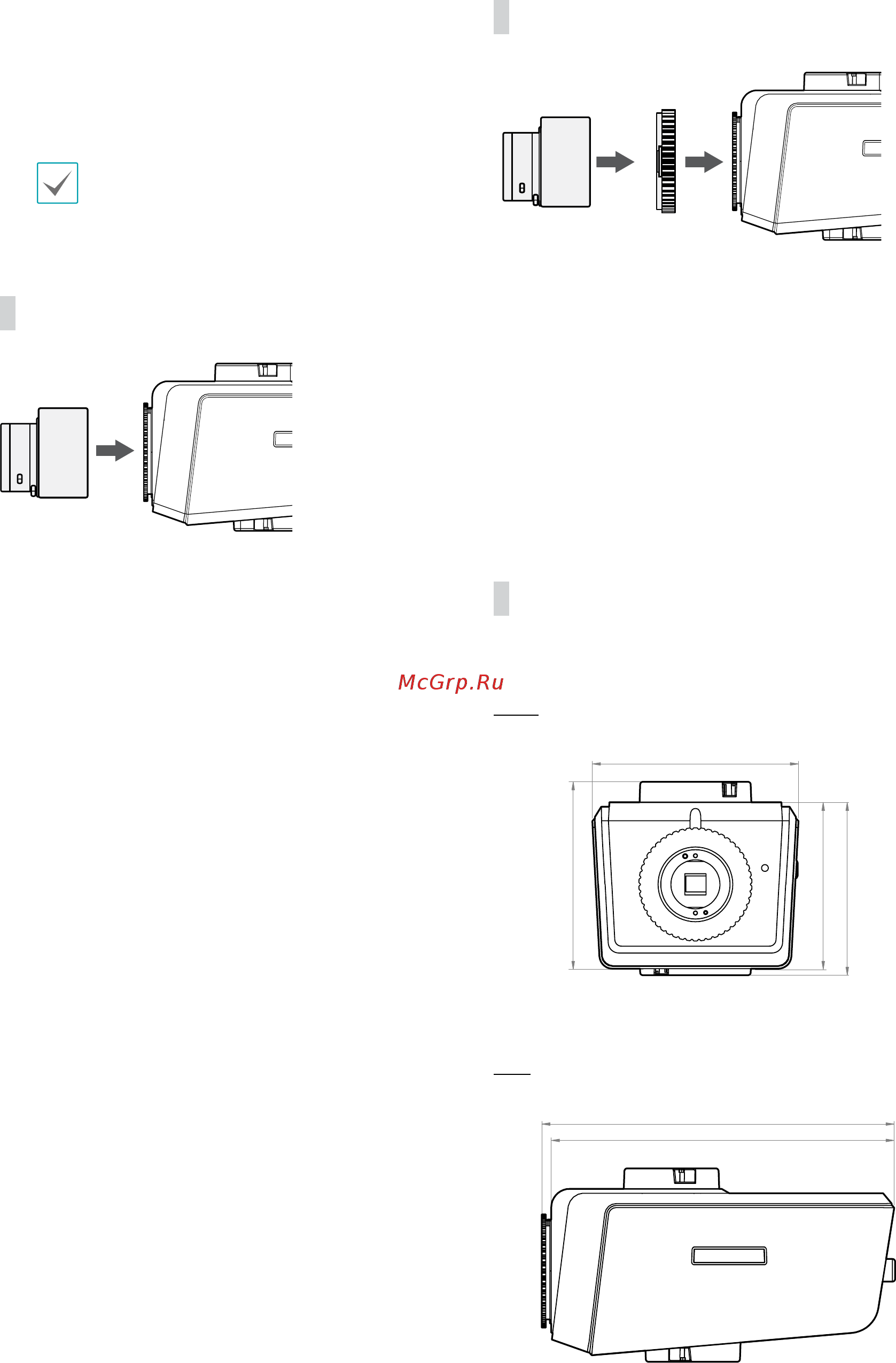

IDIS DC-B3303X [14/20] Cs mount lens
![IDIS DC-B3303X [14/20] Cs mount lens](/views2/1265312/page14/bge.png)
Part 1 – Introduction
14
2
Remove the protective cover from the camera.
3
Turn the lens in clockwise direction, mount it on to
the camera, and connect the auto iris jack to the
auto iris lens connector.
The auto iris jack must be at least 20cm long in
order to connect it to the camera.
CS-Mount Lens
1
Remove the protective cover from the camera.
2
Turn the lens in clockwise direction and mount it on
the camera.
C-Mount Lens
1
Remove the protective cover from the camera.
2
Turn the mount ring in clockwise direction and
mount the ring on to the camera.
3
Turn the C-mount lens in clockwise direction and
mount it on to the C-mount ring.
Dimensions
Front
75.6 mm (2.98")
61 mm (2.4")
63.4 mm (2.5")
68.5 mm (2.7")
Side
129.3 mm (5.09")
125.8 mm (4.95")
