Part 1 – Introduction

Overview

Product color and design may vary depending on the

model.

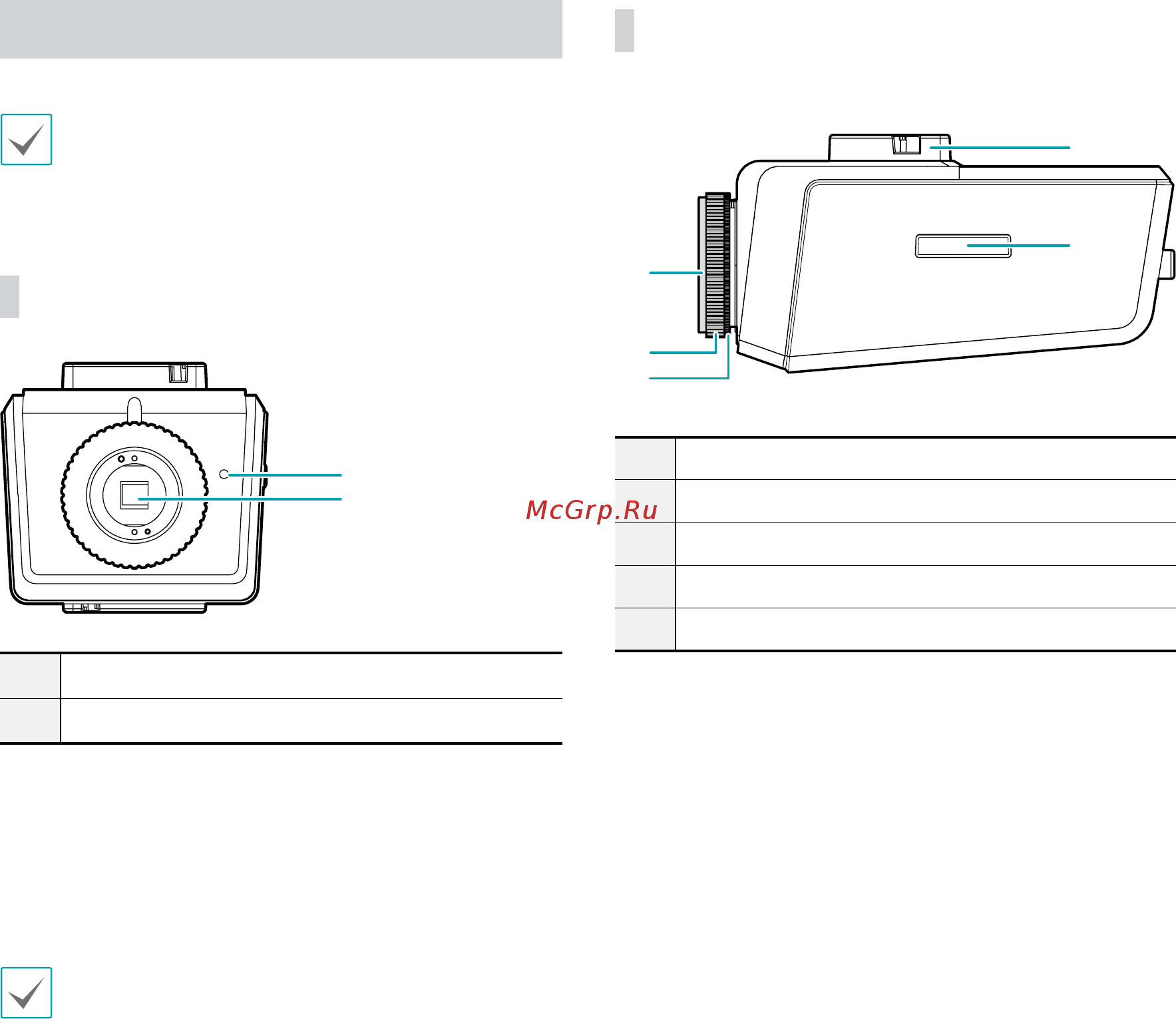

Front

Built-in Microphone

Image Sensor

• Built-in Microphone

Receives audio.

• Image Sensor

Converts optical data into electronic signals.

If the lens is not attached to the camera, use the

protective cover to cover up the image sensor.

Side

Protective Cover

C-Mount Ring

Back Focus Adjustment Ring

Mount Bracket

SD Memory Card Slot

• Protective Cover

If the lens is not attached to the camera, use the

protective cover to protect the image sensor.

• C-Mount Ring

Attach the c-mount ring to the camera if using a

c-mount lens.

• Back Focus Adjustment Ring

Undo the screw and turn the ring clockwise or

counterclockwise to adjust the back focus. Once

nished, tighten the screw to lock the back focus in

place.
