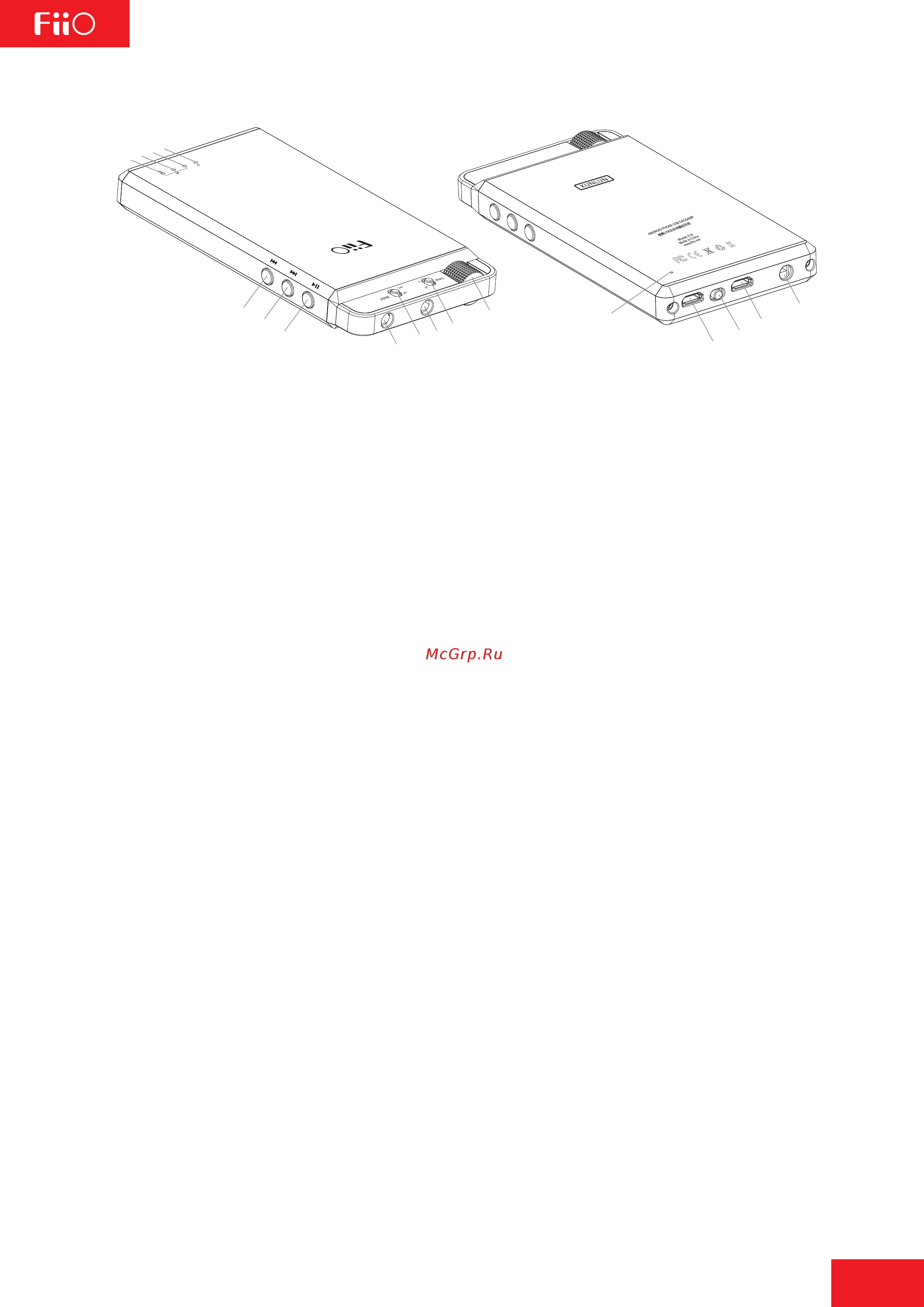

Introduction to buttons and ports:

⑴Power Switch/ Volume Adjusting Knob:

Turn clockwise to turn on the unit (indicator (12) will glow red), and indicators (9), (10)

and (11) would glow according to the battery capacity. Volume continues to increase

proportionally to turns on the volume knob, with the number on the knob bottom

indicating the volume level. Turn counterclockwise to turn the volume down, turn down

all the way past the click stop to turn off the unit.

⑵Gain Switch: provides High and Low gain options.

Headphone Output Port: Fit for headphone with 3.5mm plug

Bass Switch: ON (bass boost effect); OFF (bypass mode)

Line I/O Port:

Used as line out port when a USB audio connection is established;

Otherwise used as line in port.

(6), (7), (8): When USB audio connection is established, these can be used as remote

buttons to control music playback (with HID-compliant music player software) on the

computer or mobile phone:

Play/Pause: Plays or pauses the music.

Previous: Switches to the previous track.

Next: Switches to the next track.

(9), (10), (11): Battery status indicators. All 3 will light up when the battery is full whilst

only (11) will light in case of low battery.

Charge Indicator (H): Indicates full or near full battery. It can also be used as

anomaly detection alarm: when there is any system error, this light would blink quickly

for 5 seconds before the unit shuts off automatically.

Charge Indicator (M): Indicates medium battery level or above.

Charge Indicator (L): Indicates low battery level when only (11) is lit. (The indicator

would flash slowly to give critical battery warning; please connect to power supply soon

when this happens.)

⑿Power/ Working Indicator: Shows red when unit is on, red and blue when USB audio

connection is established.

⒀RESET switch: In case of malfunction, please use a non-conductive rod (such as a

toothpick) to reset the unit.

⒁Micro USB Charging Port: Charging port only. A power adapter with DC5V 2A output

is recommended.

⒂PC IN/PHONE IN/CHG OUT Function Switch: To switch between the computer

DAC, smartphone DAC and power-bank charger function.

⑶

⑷

⑸

(6)

(7)

(8)

(9)

(10)

(11)
